IBM System Storage DCS3700 - Dual-Controller Direct-Attached Fibre Channel Connections to Multiple Hbas in Multiple Hosts

The following illustration shows multiple redundant direct-attached host connections.

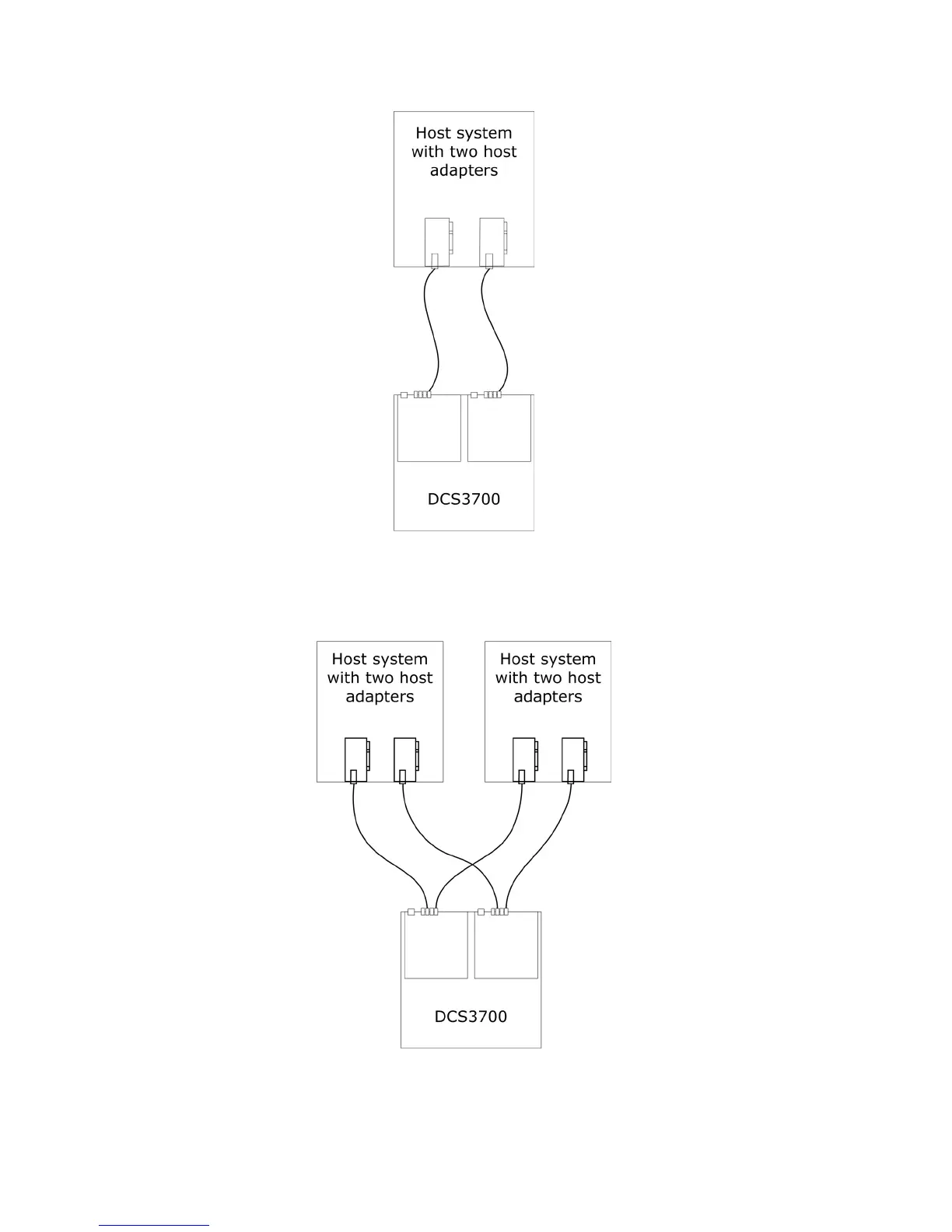

Figure 41. Dual-controller direct-attached Fibre Channel connection to two HBAs in the same host (redundant host
connection)
Figure 42. Dual-controller direct-attached Fibre Channel connections to multiple HBAs in multiple hosts
62 IBM System Storage DCS3700: Installation, User, and Maintenance Guide
