Inventory list

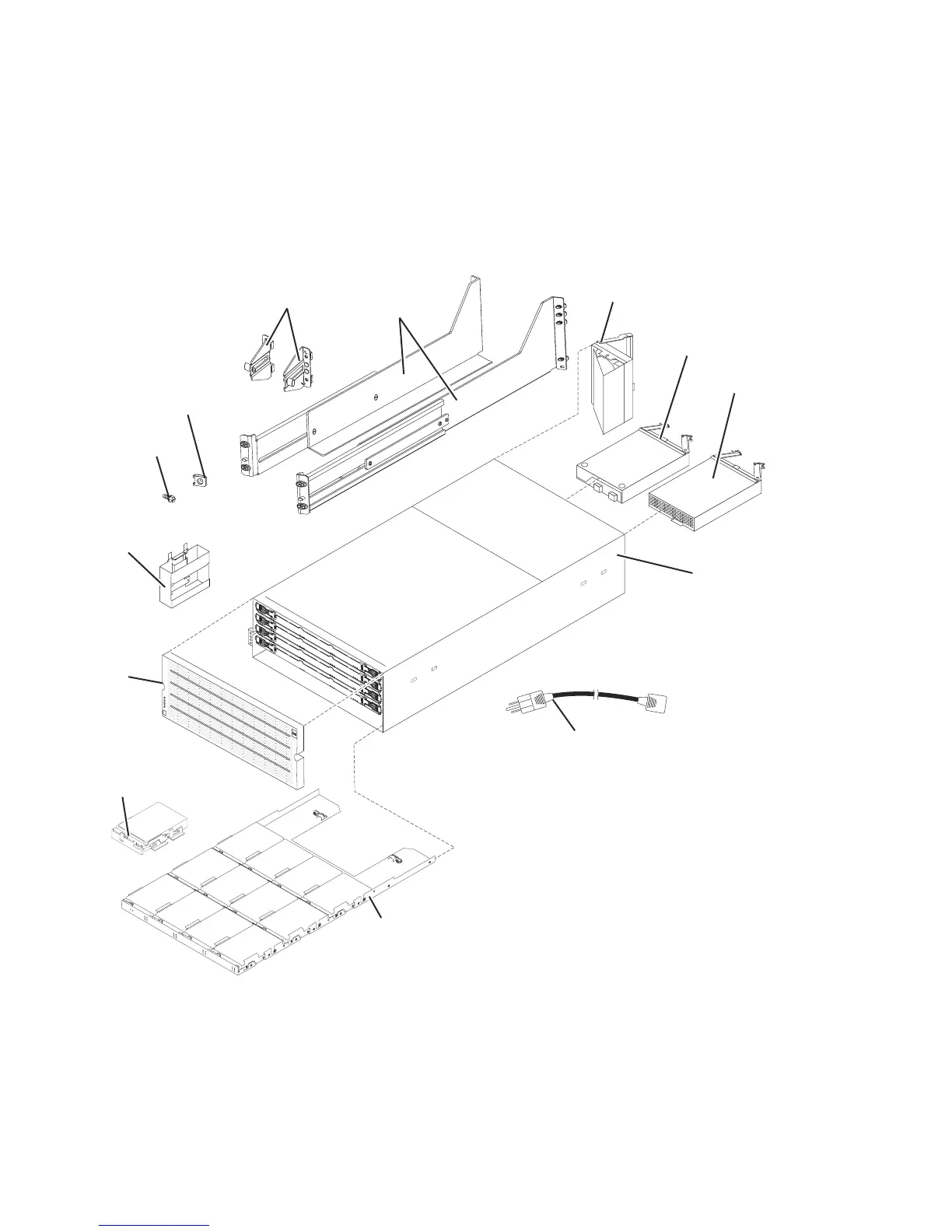

The following illustration and inventory list show the items that you need to install the storage enclosure
in the rack cabinet. If any items are missing or damaged, contact your place of purchase.
Notes:
1. The illustration might differ slightly from your hardware.
2. Depending on your DCS3700 order, your shipping box might contain additional materials that are not
shown in the following illustration.
Support rails
Storage
enclosure
M5 x 8 mm
screws (16)
PDU jumper cord
Rear brackets
Bezel
Clip nuts (4)
Fan
assembly (2)
Power
supply (2)
Controller
or ESM (2)
Drive drawer
assembly (5)
Disk drive module
(20 or more)
Handles (4)
dcsq0007
After you unpack the DCS3700, verify that you have the following items:
v 4U-high storage enclosure (1)
– Drive drawer assemblies (5)
– Fan assemblies (2)
– Power supplies (2)
– Controllers (2), if you ordered 1818-80C
– ESMs (2), if you ordered 1818-80E
28 IBM System Storage DCS3700: Installation, User, and Maintenance Guide
