Using LC-LC Fibre Channel cables
The LC-LC Fibre Channel cable is a fibre-optic cable that you use to connect into one of the following
devices:
v An SFP module installed in an a DCS3700 fibre channel host interface adpater.
v An SFP module installed in a fibre channel switch port or fibre channel host bus adapter port.
See Figure 28 for an illustration of the LC-LC Fibre Channel cable.
For more information about cabling these devices, see the documentation that comes with the LC-LC
Fibre Channel cable.
1.5 inch
(38 mm)
radius
3.0 inch
(76 mm)
diameter
ds470104

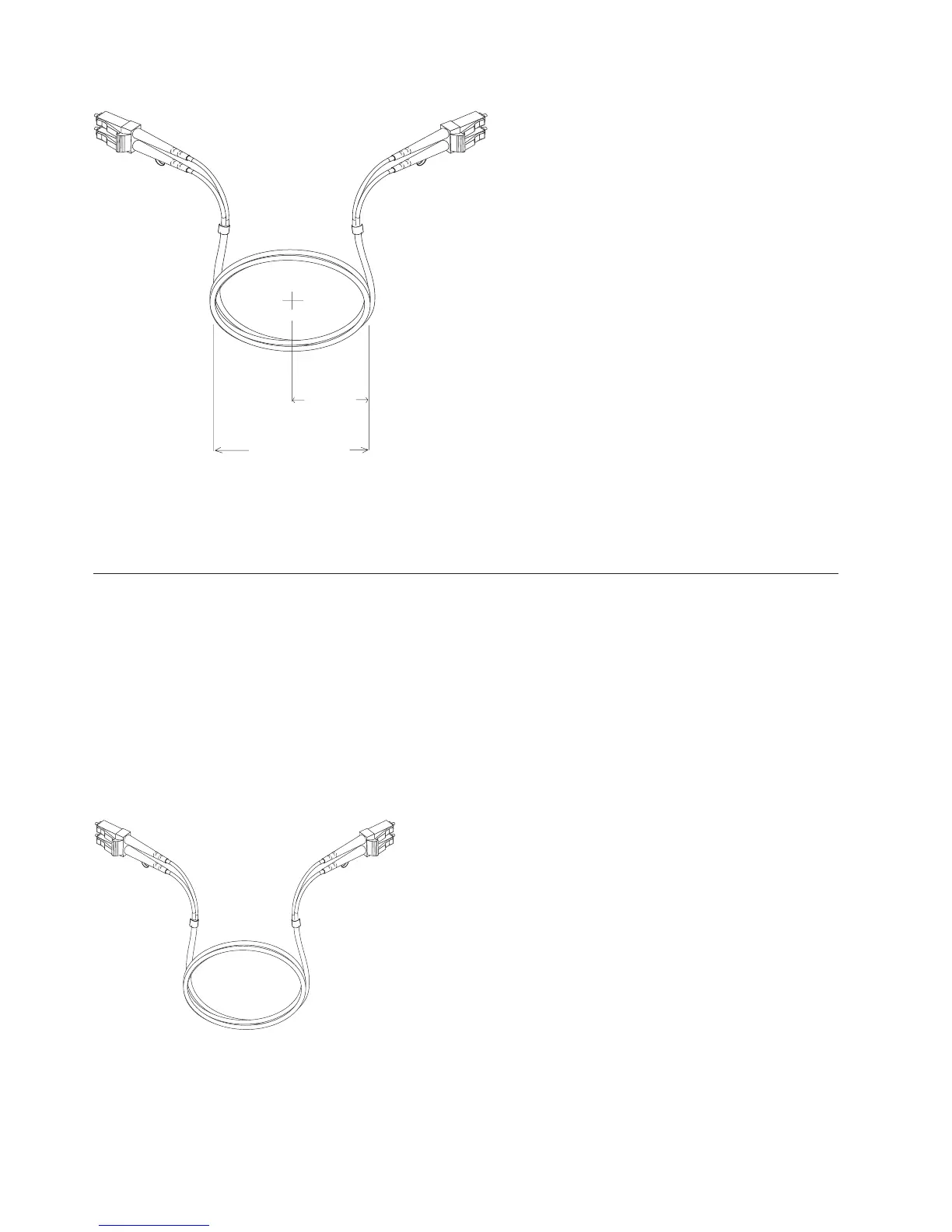

Figure 27. Recommended bending and looping specifications for fibre-optic cables
Figure 28. LC-LC Fibre Channel cable
