56.7 kg (125 lbs)
102 kg (225 lbs)
(12 x 5)
(60X)
Attention:
a. Because of the size and weight of the storage enclosure as shipped, a lift tool and a minimum of
two trained service technicians are required to push the enclosure out of its custom-designed
package and onto the lift tool. For more information about the lift tool, see “Installation overview”
on page 23.
b. Before you move or relocate a rack that contains DCS3700 storage enclosures, see “Relocating the
DCS3700” on page 65 for additional information.

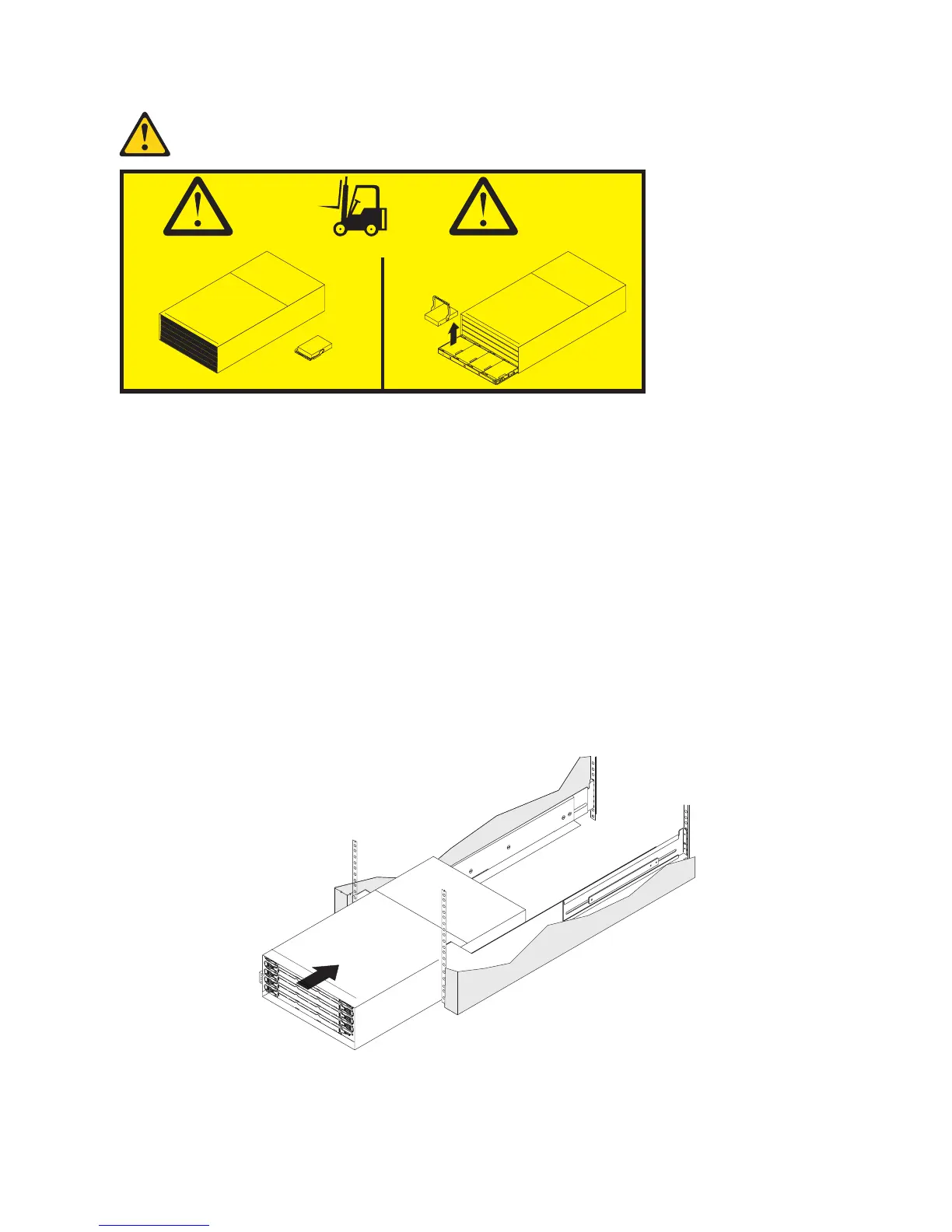

2. With the help of a lift tool and a minimum of two trained service technicians, or a lift tool and
professional movers, slide the storage enclosure off of the side of the shipping box and onto the lift
tool. Align it in front of the rack.
3. Put the rear edge of the storage enclosure on the support rails.
4. Remove the two handles (one on each side) at the rear of the storage enclosure. Do not remove the
front handles on both sides of the unit.
5. Slide the storage enclosure halfway into the rack and remove the two handles (one on each side) at
the front of the unit.
Front
Rear
6. Install and tighten two M5 screws on each side of the rack, above and below the top M5 screws, in
the front of the storage enclosure to secure the storage expansion .
36 IBM System Storage DCS3700: Installation, User, and Maintenance Guide
