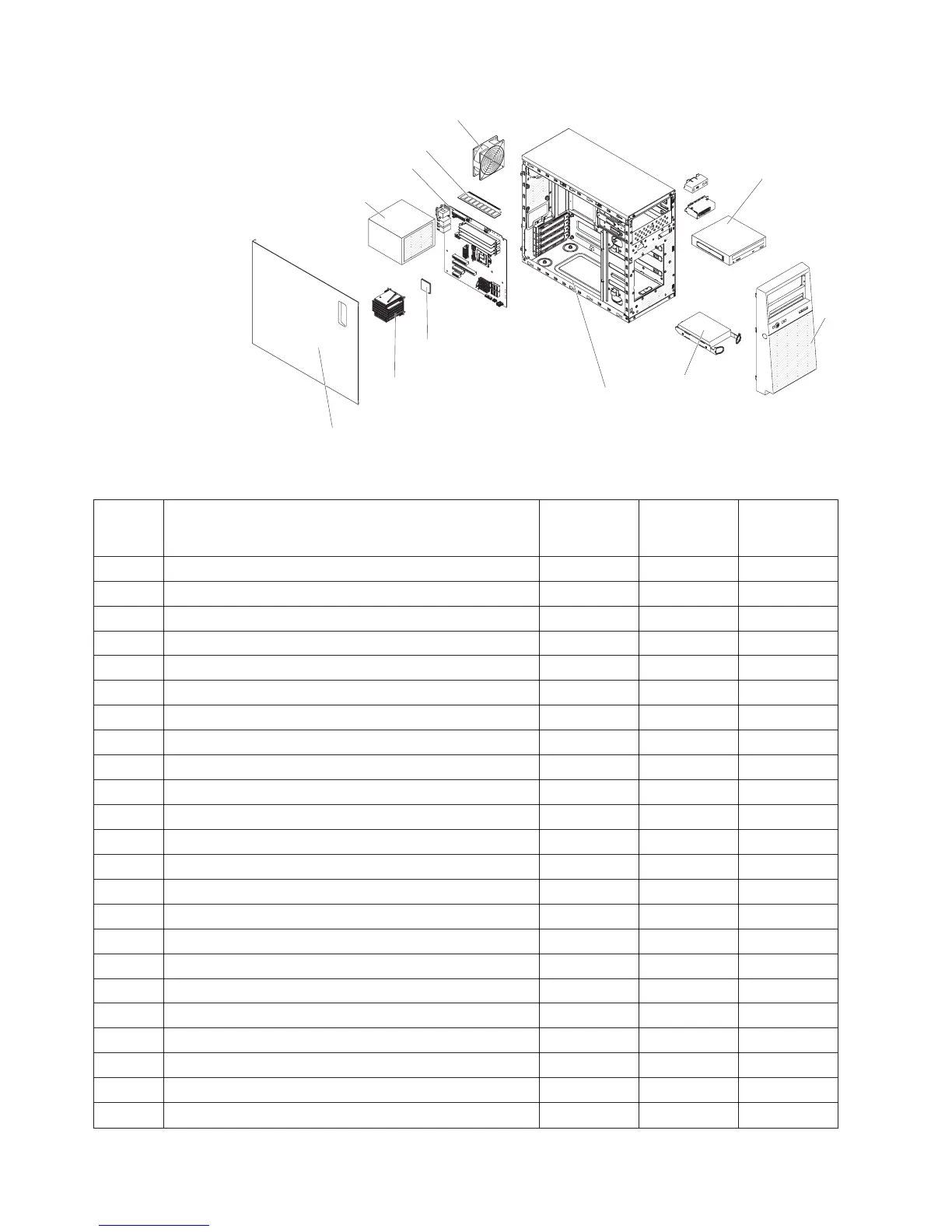

Table 8. Parts listing for 4U server models with non-hot-swap power supplies, Type 2582. For the 5U server model
with hot-swap power supplies (Model name: 2582-F4x), please see Table 9.
Index Description
CRU part
number
(Tier 1)
CRU part
number
(Tier 2)
FRU part
number
1 Side cover assembly 81Y7471
2 Power supply, 300W 00J6072
2 Power supply, 350W 00J6073
3 System board assembly 00D8550
4 Memory, 1 GB 1Rx8 UDIMM, 1333 MHz, DDR3 44T1572
4 Memory, 2 GB 1Rx8 UDIMM, 1333 MHz, DDR3 44T1574
4 Memory, 4 GB 2Rx8 UDIMM, 1333 MHz, DDR3 44T1575
4 Memory, 2GB 1Rx8 UDIMM, 1600 MHz, DDR3 00D4953
4 Memory, 4GB 2Rx8 UDIMM, 1600 MHz, DDR3 00D4957
4 Memory, 8GB 2Rx8 UDIMM, 1600 MHz, DDR3 00D4961
5 System fan, rear 81Y7481
6 Heat sink 81Y7493
7 Microprocessor, Core i3-2100, 3.1GHz 2C 3MB cache 69Y5148
7 Microprocessor, Xeon E3-1270 3.4GHz 4C 8MB cache 69Y5149
7 Microprocessor, Xeon E3-1280 3.5GHz 4C 8MB cache 81Y6933
7 Microprocessor, Xeon E3-1220 3.1GHz 4C 8MB cache 81Y6945
7 Microprocessor, Xeon E3-1230 3.2GHz 4C 8MB cache 81Y6947
7 Microprocessor, Xeon E3-1260L 2.4GHz 4C 8MB cache 81Y6949
7 Microprocessor, Xeon E3-1220L 2.2GHz 2C 3MB cache 81Y6951
7 Microprocessor, Pentium G850 2.9GHz 2C 3MB cache 81Y7504
7 Microprocessor, Xeon E3-1220v2 3.1GHz 4C 8MB cache 00D8552
7 Microprocessor, Xeon E3-1270v2 3.5GHz 4C 8MB cache 00D8553
7 Microprocessor, Xeon E3-1280v2 3.6GHz 4C 8MB cache 00D8554
152 IBM System x3100 M4 Type 2582: Problem Determination and Service Guide
