IBM System x3100 M4 Problem Determination And Service Guide

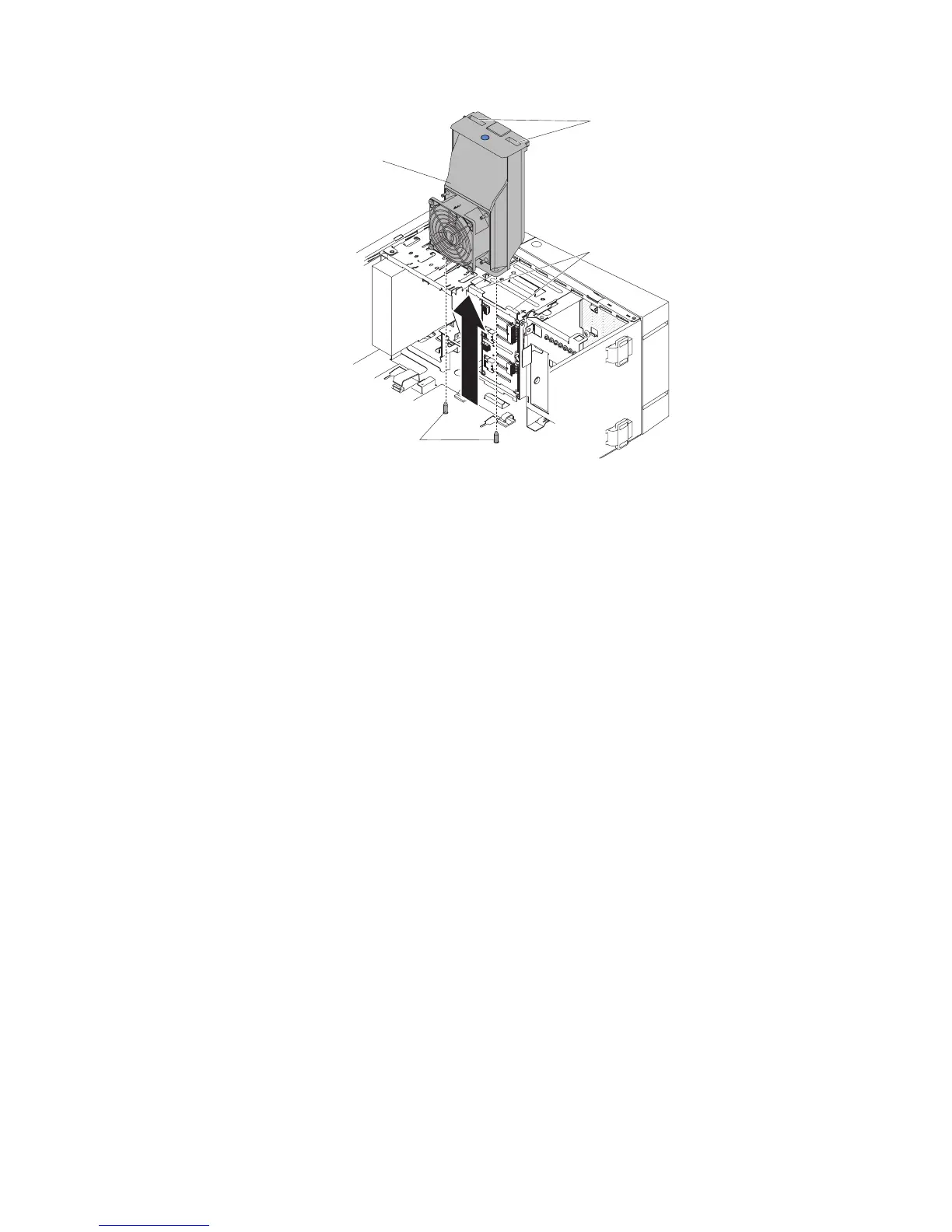

Hard disk drive
fan duct
Guide pins
Latches
Latch holes
6. If you are instructed to return the fan, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Installing the hard disk drive fan duct
This procedure applies only to the 5U server model with hot-swap power supplies
(Model name: 2582-F4x).
Attention:
v To ensure proper cooling and airflow, do not operate the server for more than 30
minutes with the side cover removed.
To install the hard disk drive fan duct on the 5U server model with hot-swap power
supplies (Model name: 2582-F4x), complete the following steps.
1. Unlock and remove the side cover (see “Removing the side cover” on page
166).
2. Carefully turn the server on its side so that it is lying flat, with the system board
facing up.
Attention: Do not allow the server to fall over.
3. Lower the hard disk drive fan duct into the chassis, making sure the two guide
pins and two latches on the chassis protrude through the respective holes on
the hard disk drive fan duct.
Chapter 5. Removing and replacing server components 215

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
