Installing a microprocessor and heat sink
To install the microprocessor and heat sink on 4U server models with non-hot-swap
power supplies, complete the following steps. For the 5U server model with
hot-swap power supplies (Model name: 2582-F4x), please see the next sub-section.
1. Touch the static-protective package that contains the microprocessor to any
unpainted metal surface on the server. Then, remove the microprocessor from
the package.
2. Remove the protective cover, tape, or label from the surface of the
microprocessor socket, if any is present.
3. Rotate the release lever on the microprocessor socket to the fully open
position.
Attention: Make sure that the release lever on the microprocessor socket is
in the fully open position before you insert the microprocessor in the socket.
Failure to do so might result in permanent damage to the microprocessor,
microprocessor socket, and system board.

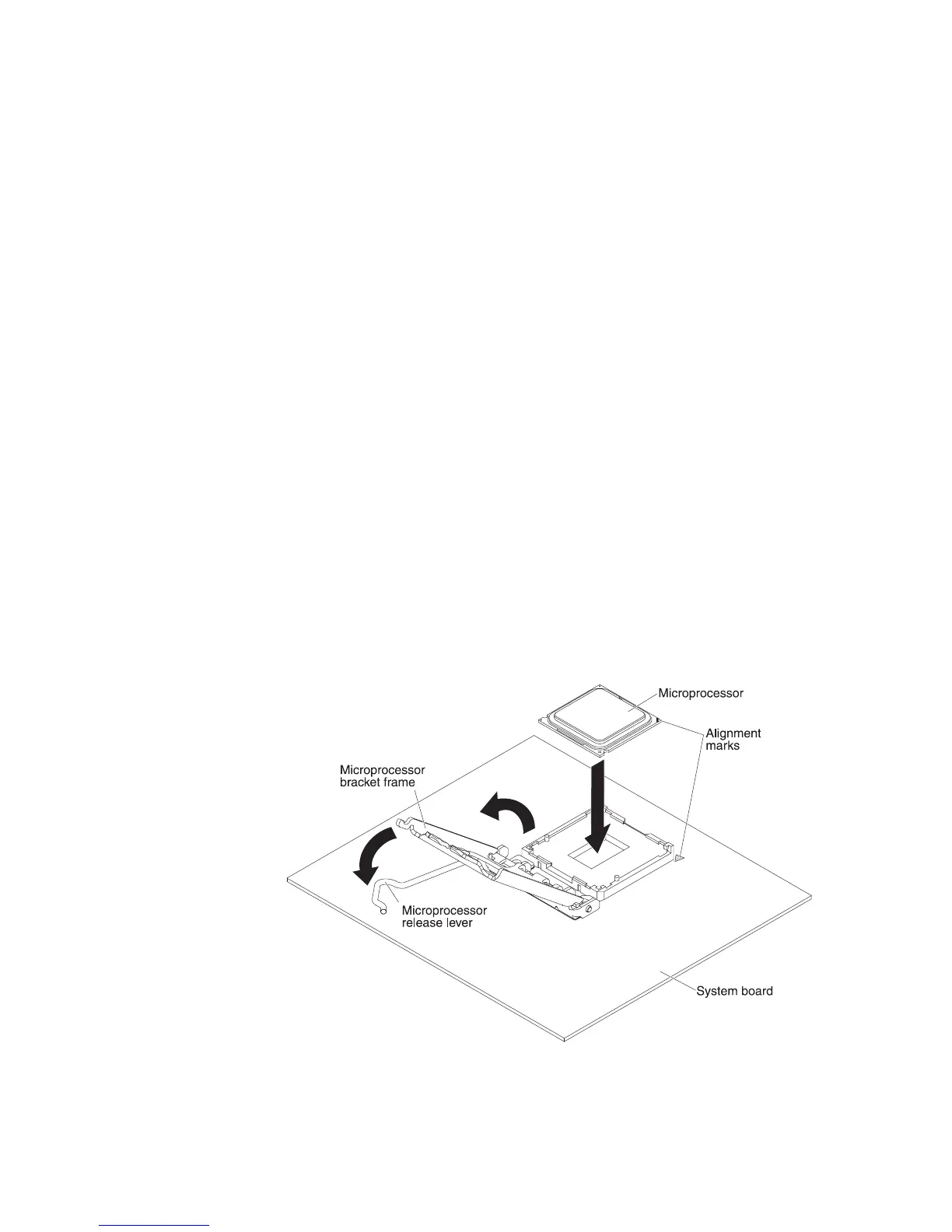

4. Carefully grasp the microprocessor and place the microprocessor into the
microprocessor socket.
Note: To maintain correct orientation between the microprocessor and the
microprocessor socket during installation, observe the following information:
v The microprocessor has two notches that are keyed to two tabs on the
sides of the socket.
v A triangle-shaped indicator on one corner of the microprocessor points to a
45-degree angle on the system board.
v Do not use excessive force when you press the microprocessor into the
socket.
5. Close the microprocessor bracket frame; then, close the microprocessor
retention latch and lock it securely in place.
6. Install the heat sink:
254 IBM System x3100 M4 Type 2582: Problem Determination and Service Guide
