See “Using the Setup utility” on page 271 for details.
To install the replacement battery on the 5U server model with hot-swap power
supplies (Model name: 2582-F4x), complete the following steps. For 4U server
models with non-hot-swap power supplies, please see the above sub-section.
1. Follow any special handling and installation instructions that come with the
replacement battery.
2. Insert the new battery:
a. Orient the battery so that the positive side faces up.

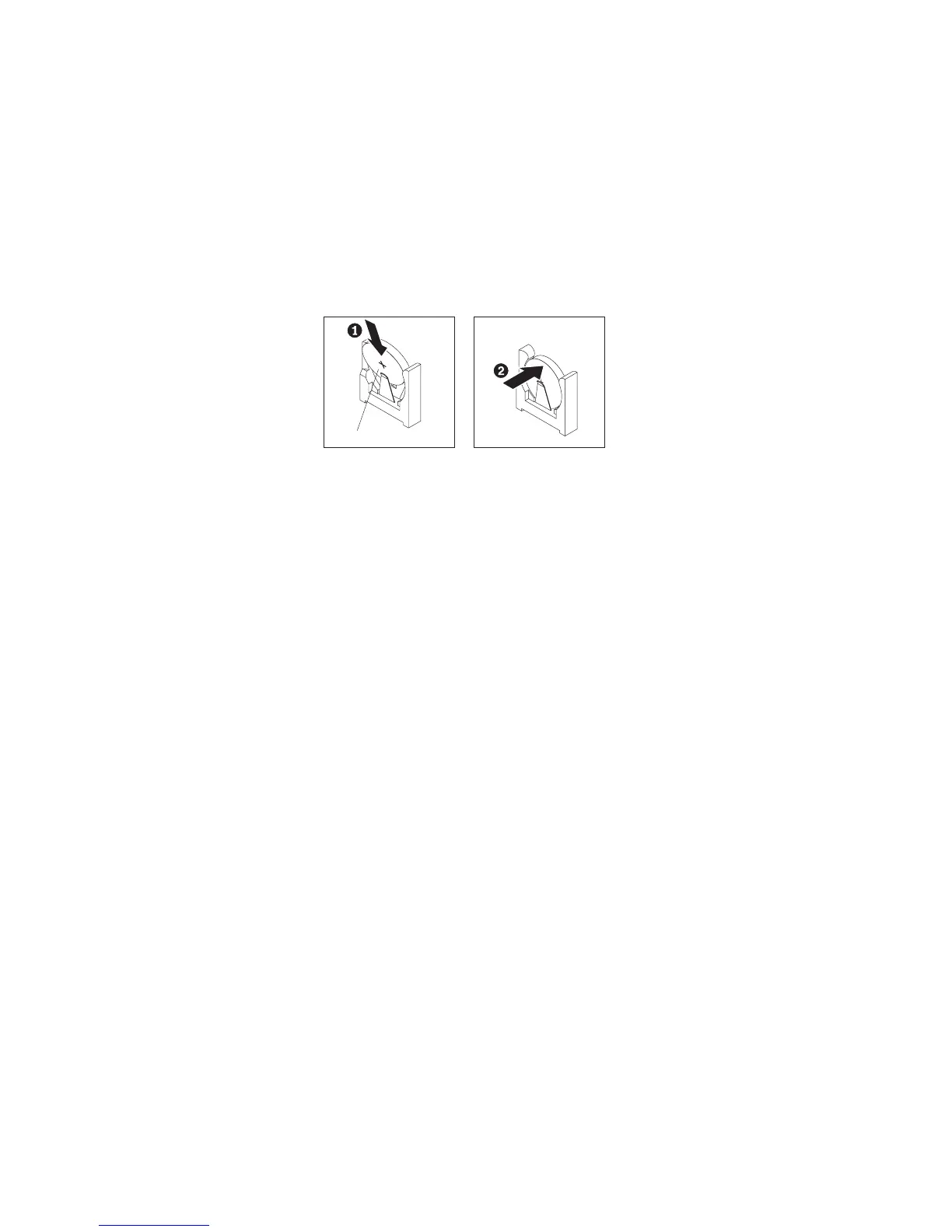

b. Tilt the battery and slide the battery into its socket
Positive (+) side
c. Press the battery down into the socket until it clicks into place. Make sure
that the battery clip holds the battery securely.
3. Stand the server back up in its vertical position.
4. Install and lock the side cover (see “Installing the side cover” on page 167).
5. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
6. Start the Configuration/Setup Utility program and reset the configuration:
v Set the system date and time.
v Set the power-on password.
v Reconfigure the server.
See “Using the Setup utility” on page 271 for details.
Removing the rear system fan
This procedure applies only to 4U server models with non-hot-swap power supplies.
Attention:
v To ensure proper cooling and airflow, do not operate the server for more than 30
minutes with the side cover removed.
To remove the rear system fan on server models with non-hot-swap power supplies
(4U chassis), complete the following steps.
1. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
2. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
3. Remove the side cover (see “Removing the side cover” on page 166).
4. Remove the air duct.
5. Remove any adapters that impede access to the fan and the fan connector on
the system board (see “Removing a ServeRAID adapter” on page 176).
6. Remove the system fan:
Chapter 5. Removing and replacing server components 211
