Attention: Disengage all latches, release tabs or locks on cable connectors
when you disconnect all cables from the system board. Failing to release them
before removing the cables will damage the cable sockets on the system
board. The cable sockets on the system board are fragile. Any damage to the
cable sockets may require replacing the system board.
10. Remove any of the following components (in addition to others that might not
be listed) that are installed on the system board and put them in a safe,
static-protective place:
v Adapters (see “Removing a ServeRAID adapter” on page 176).
v DIMMs (see “Installing a memory module” on page 203).
v Battery (see “Removing the system battery” on page 207).

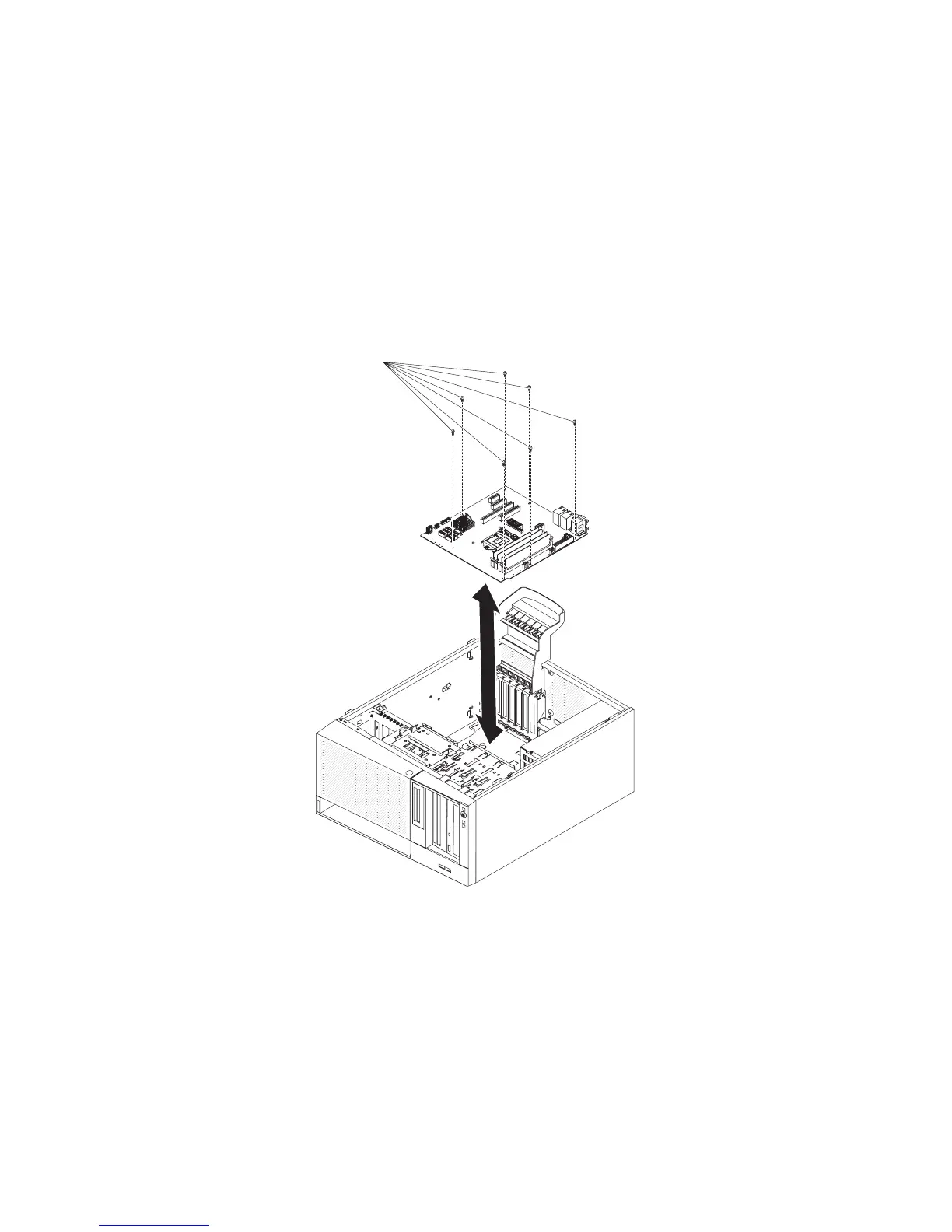

11. Remove the seven screws that secure the system board to the chassis.
System board
(7 screws)
12. Carefully lift the system board out of the server.
13. If you are instructed to return the system board, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Attention: Make sure to place the socket covers for the microprocessor
sockets on the system board before returning the system board.
Installing the system board
Notes:
1. When you reassemble the components in the server, be sure to route all cables
carefully so that they are not exposed to excessive pressure.
Chapter 5. Removing and replacing server components 261
