IBM System x3100 M4 Problem Determination And Service Guide

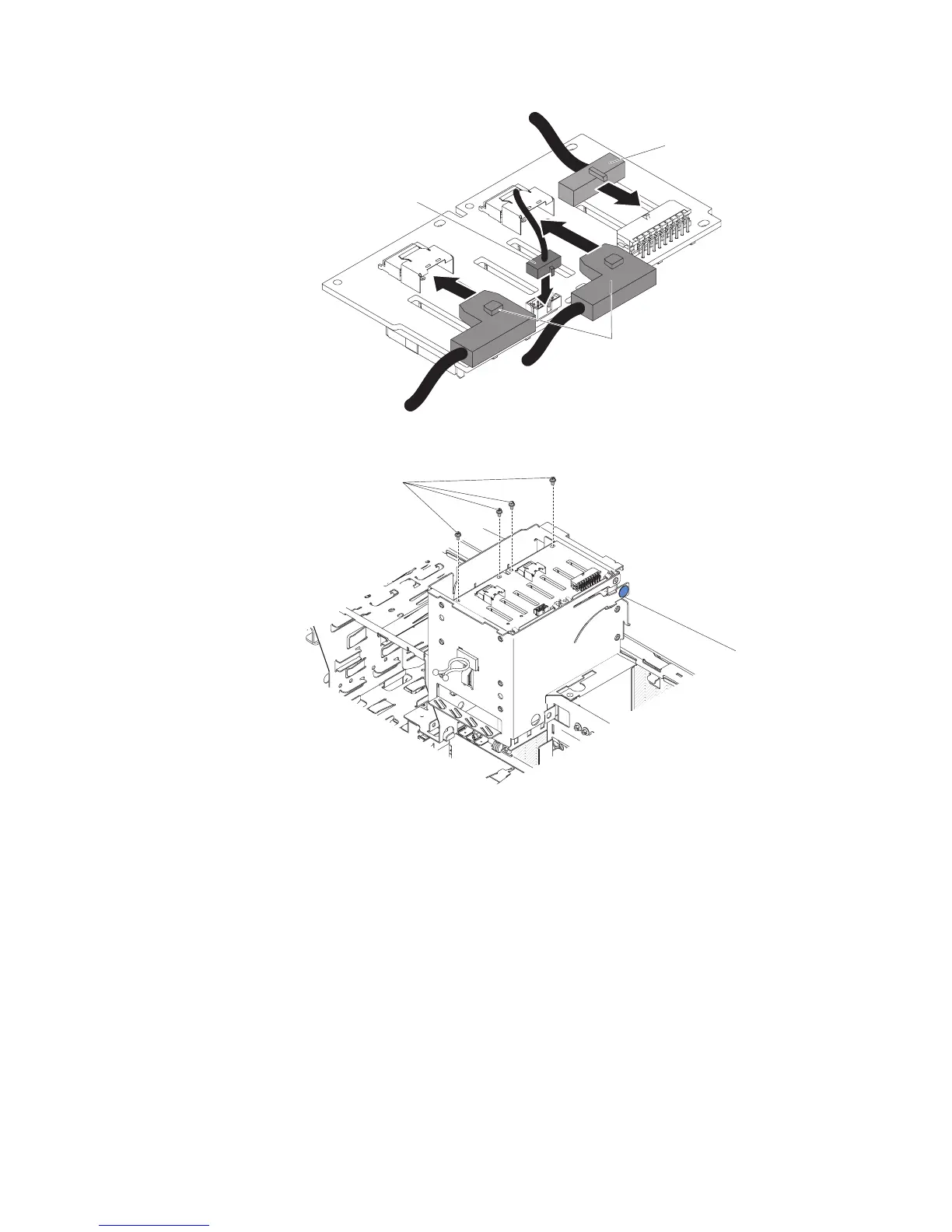

Signal cables
Power cable
Configuration cable
3. Install the four screws that secure the hot-swap hard disk drive backplane to
the drive cage.
Screws
4. Press and hold the retaining tab on the side of the cage; then, rotate the drive
cage into the chassis until it locks into place.
Note: You may need to slightly lift up the cage in order to press and hold the
retaining tab.
Chapter 5. Removing and replacing server components 225

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
