3. Push the front-panel assembly toward the chassis until it clicks into place.
4. Reroute and connect the front-panel assembly cable to the system board (see
“System-board internal connectors” on page 17 for the location of the
front-panel connector).
5. Install the air duct.
6. Install the side cover (see “Installing the side cover” on page 167).
7. Stand the server back up in its vertical position.
8. Install bezel (see “Installing the bezel” on page 171).
9. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
To install the front-panel assembly on the 5U server model with hot-swap power
supplies (Model name: 2582-F4x), complete the following steps. For 4U server
models with non-hot-swap power supplies, please see the above sub-section.
1. Carefully turn the server on its side so that it is lying flat.
Attention: Do not allow the server to fall over.

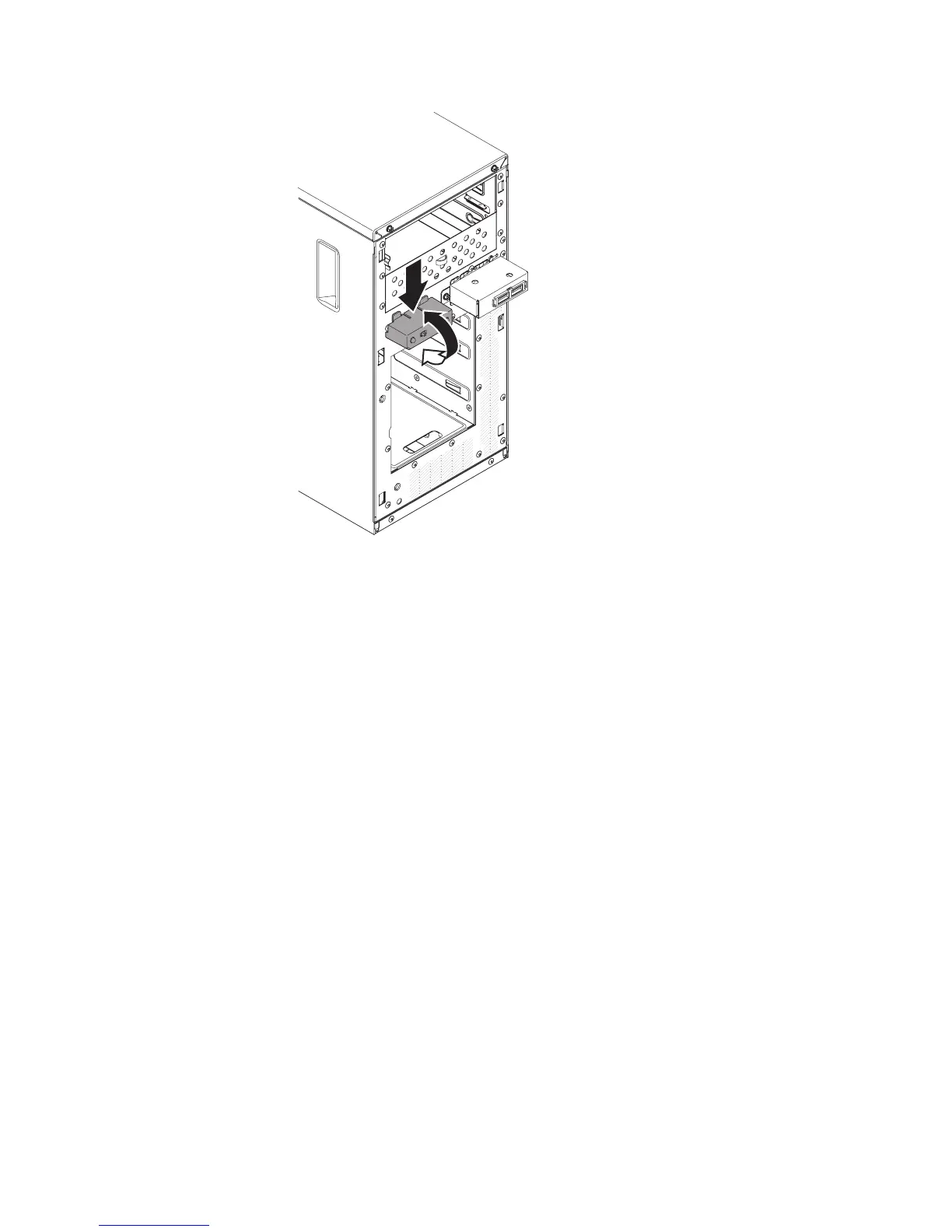

2. Position the front end of the front-panel assembly in the channel above bay 1.
3. Push the front-panel assembly toward the front of the chassis until it clicks into
place.
Chapter 5. Removing and replacing server components 229

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
