b. Connect the longer SAS signal cable to the other SAS connector that is
labeled “Ports 7-4”.
21. Remove the PCI riser-card assembly 2 (see the "Removing a PCI riser-card
assembly" section of the IBM System x3650 M3 Installation and User's Guide).

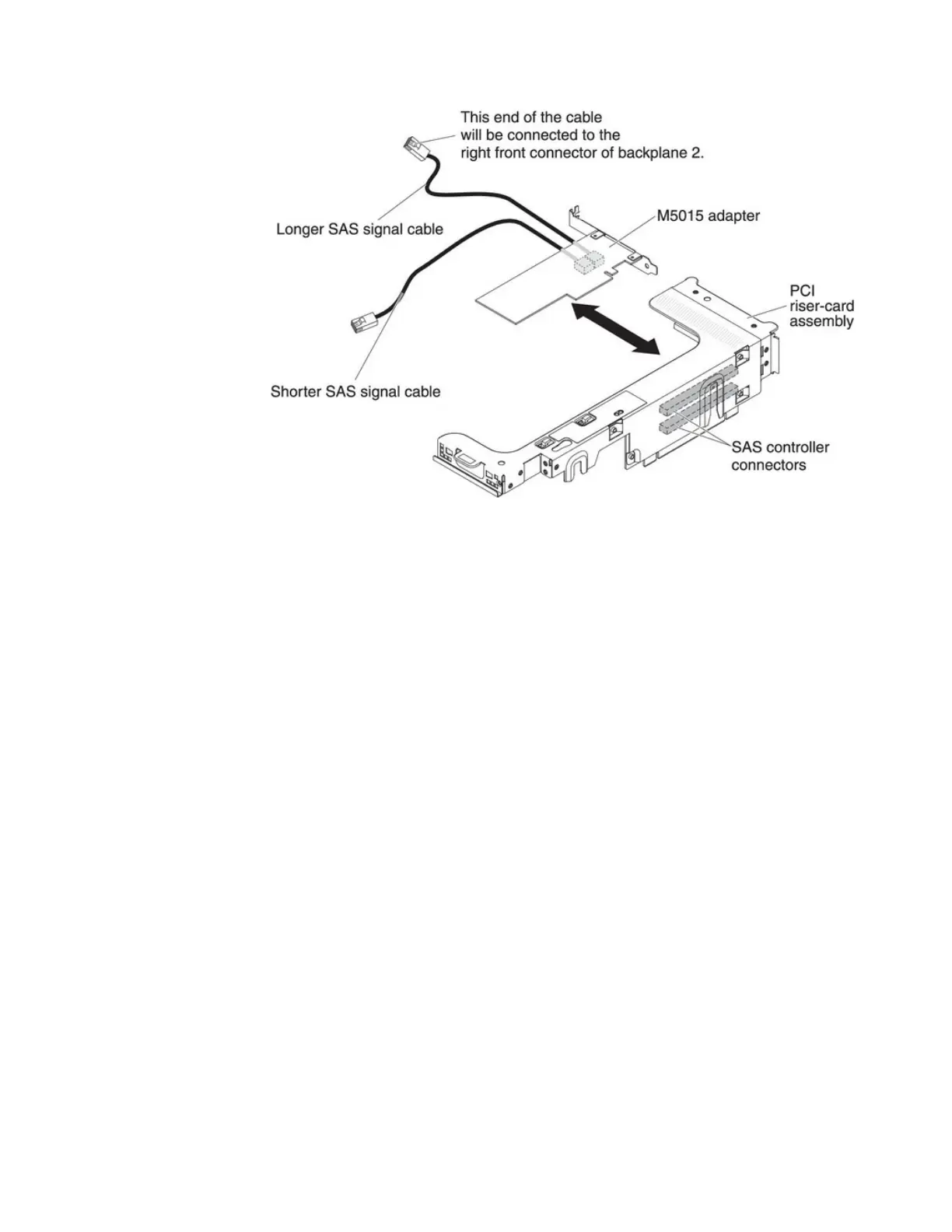

22. Orient the M5015 adapter so that the connectors are on the underside of the
controller. Install the M5015 adapter in the connector on the PCI riser card
(PCI slot 4, see the previous illustration and see the "Installing a PCI adapter"
section of the IBM System x3650 M3 Installation and User's Guide).
23. Install the PCI riser-card assembly 2 in the server (see the "Installing a PCI
riser-card assembly" section of the IBM System x3650 M3 Installation and
User's Guide).
24. Connect the SAS signal cables to the M5015 adapter installed on the bottom
left corner (as facing the front of the server):
a. Connect the SAS signal cable from the left front connector of hard disk
drive backplane 1 to the lower connector on the M5015 adapter (as facing
the front of the server).
Figure 97. Connecting SAS signal cables
