e. If there is a plastic protective cover on the bottom of the microprocessor,
carefully remove it.
f. Locate the microprocessor installation tool that comes with the new
microprocessor.
Note: The microprocessor installation tool assembly comes with the
microprocessor and microprocessor cover attached to the tool. The
microprocessor comes protected between the tool and the microprocessor
cover.
g. Remove the microprocessor installation tool assembly from the package.
Note: Do not rotate the handle on the tool until you are ready to install
the microprocessor into the microprocessor socket.

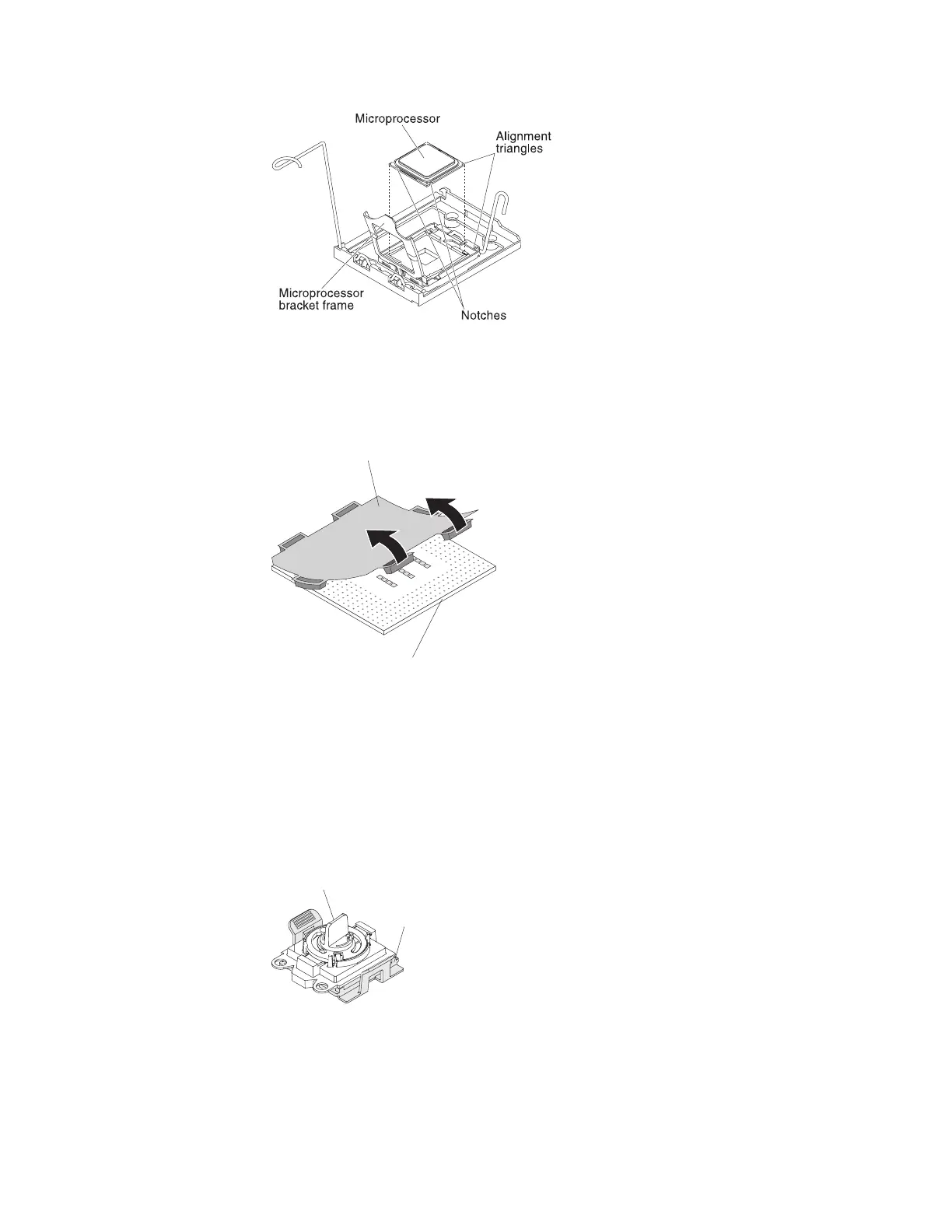

Figure 111. Microprocessor alignment
Microprocessor
Protective
cover
Figure 112. Protective cover removal
Microprocessor
cover
Installation tool
Figure 113. Installation tool
Chapter 2. Installing optional devices 111
