h. Remove the cover from the bottom of the microprocessor installation tool.
Press both microprocessor cover release tabs outward (in opposite
directions as shown in the illustration) and remove the microprocessor
installation tool with the microprocessor attached.
i. Carefully align the microprocessor installation tool over the microprocessor
socket.
Attention: The microprocessor fits only one way on the socket. You must
place a microprocessor straight down on the socket to avoid damaging the
pins on the socket. The pins on the socket are fragile. Any damage to the
pins may require replacing the system board.
j. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket.
Microprocessor
cover release
tabs
Microprocessor
cover
Installation tool
Microprocessor

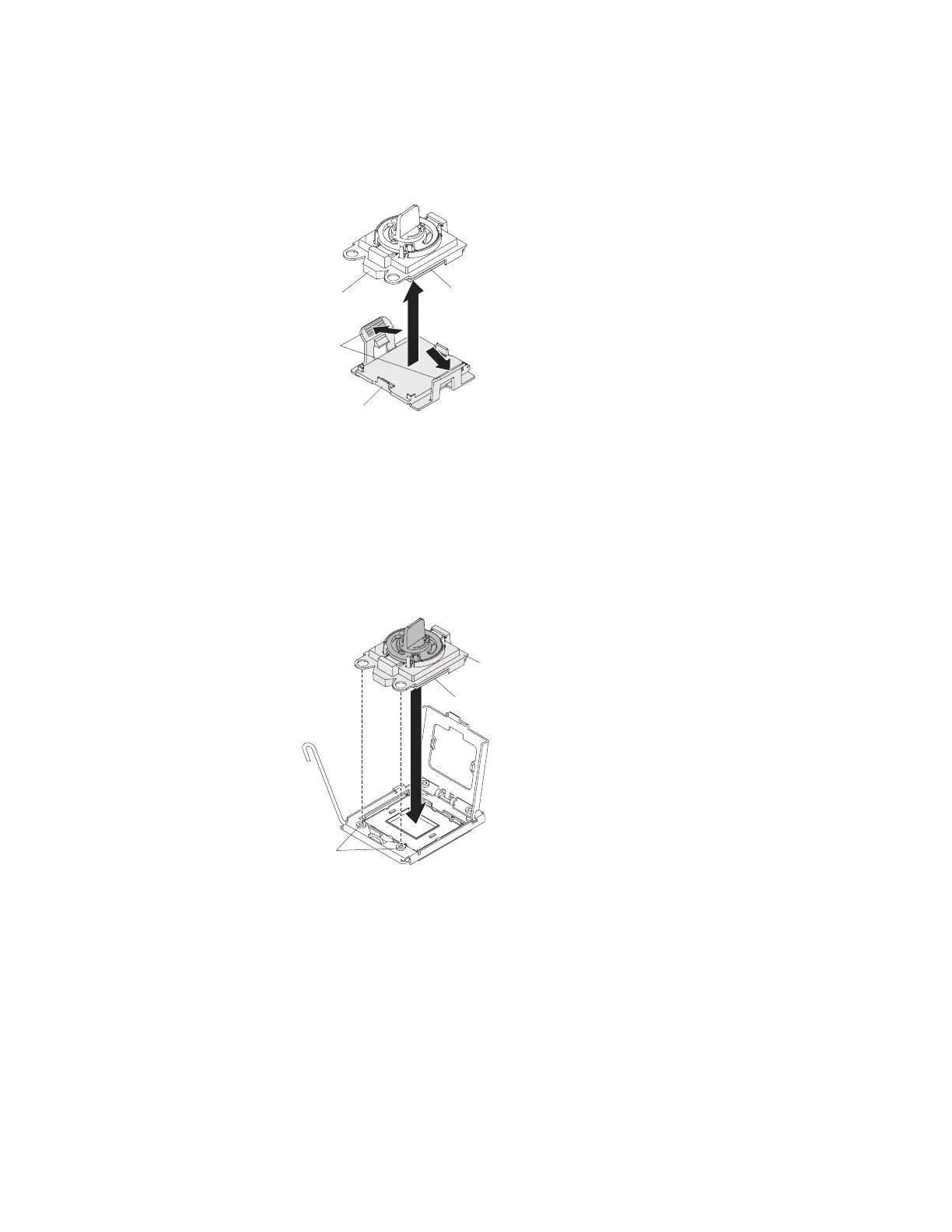

Figure 114. Installation tool cover removal
Installation tool
Alignment pins
Microprocessor
Figure 115. Installation tool alignment
112 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
