5. Install the two standoffs on the system board.
6. Insert the bottom tabs of the metal clip into the port openings from outside
the chassis.
7. While you slightly press the top of the metal clip, rotate the metal clip toward
the front of the server until the metal clip clicks into place. Make sure the
metal clip is securely engaged on the chassis.
Attention: Pressing the top of the metal clip with excessive force may cause
damage to the metal clip.
8. Touch the static-protective package that contains the new adapter to any
unpainted metal surface on the server. Then, remove the adapter from the
package.
9. Align the adapter with the adapter connector on the system board; then, tilt
the adapter so that the port connectors on the adapter line up with the port
openings on the chassis.

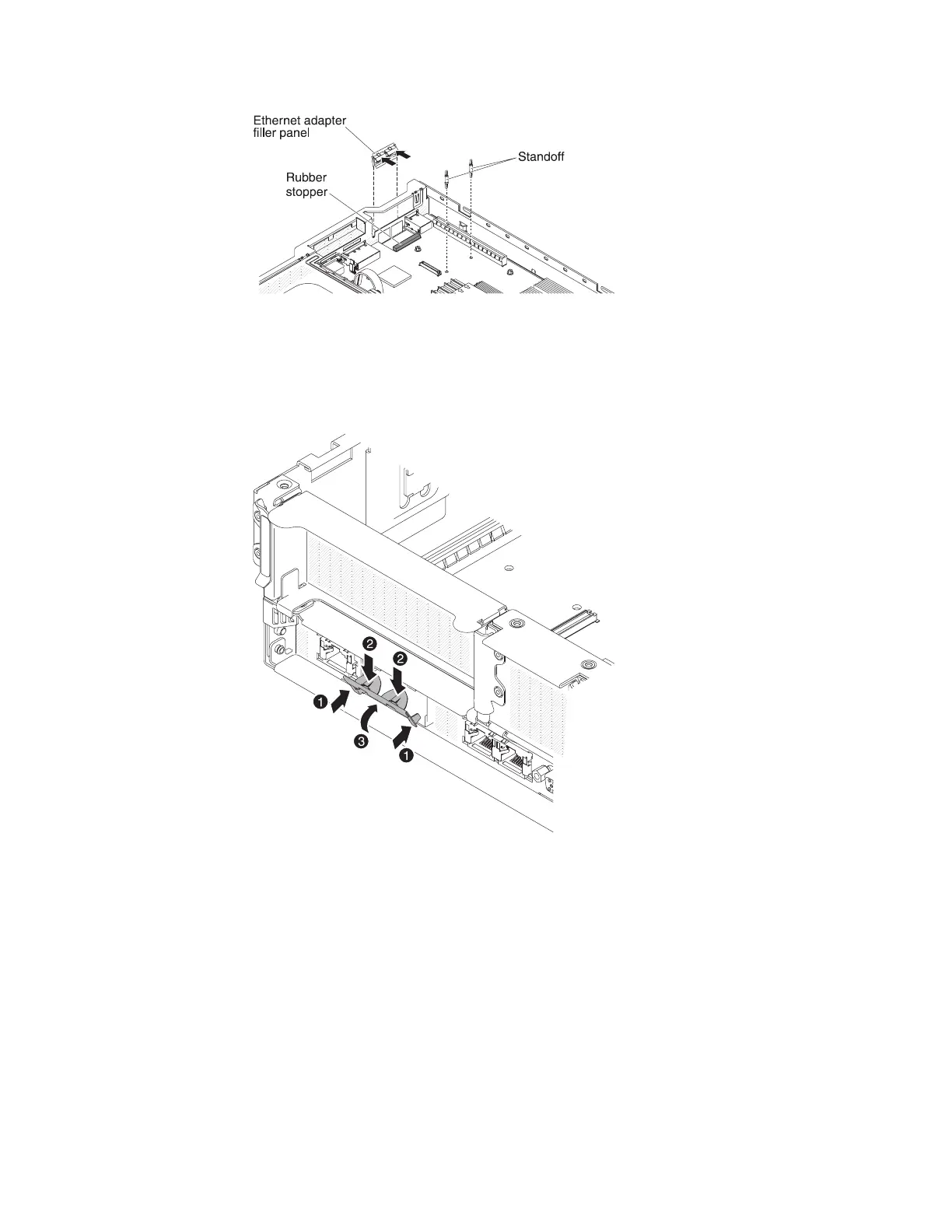

Figure 158. Adapter filler panel removal
Figure 159. Bottom tabs installation
150 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
