11. Slide the port connectors on the adapter into the port openings on the chassis;
then, press the adapter firmly until the two standoffs engage the adapter.
Make sure the adapter is securely seated on the connector on the system
board.

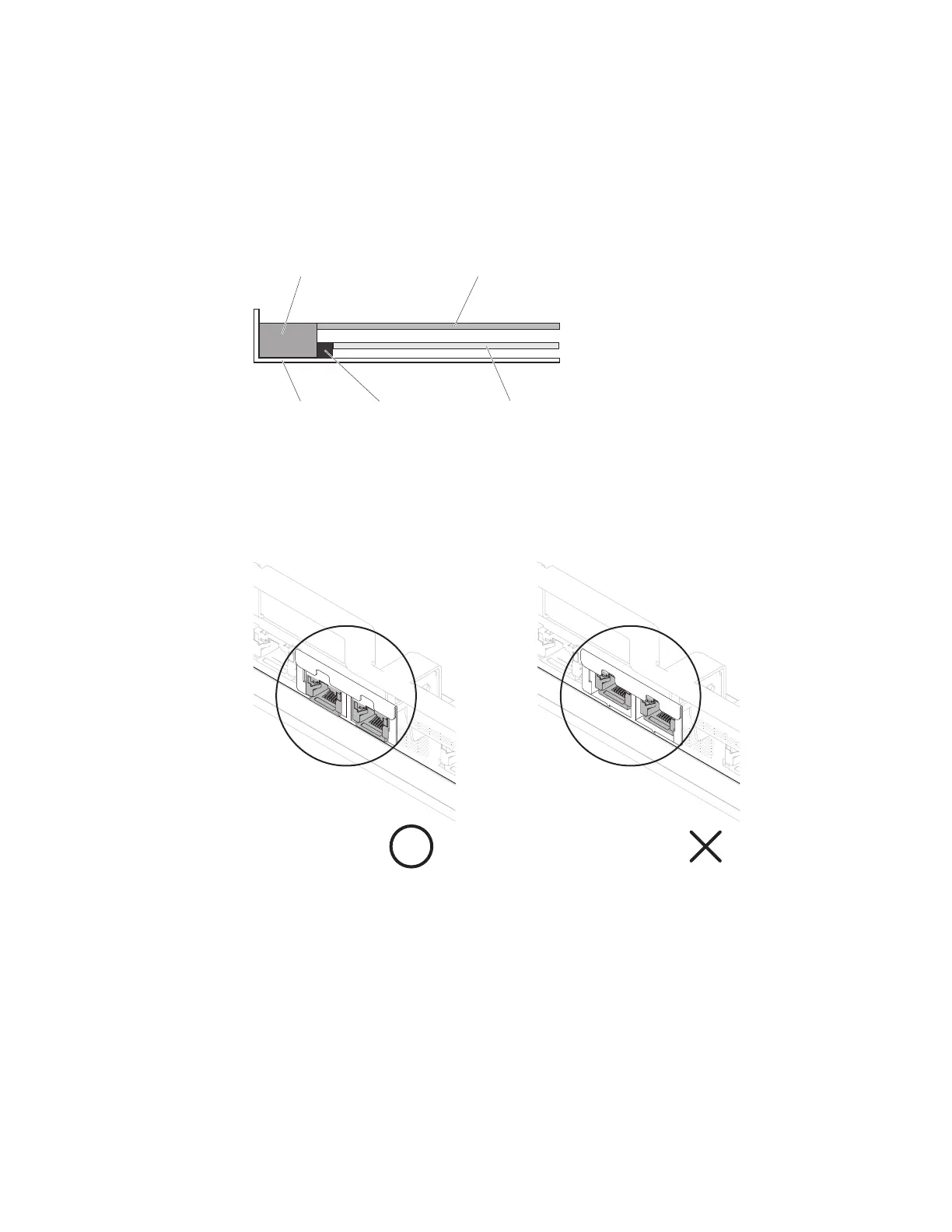

Make sure the port connectors on the adapter do not set on the rubber
stopper. The following illustration shows the side view of the adapter in the
server.
Attention: Make sure the port connectors on the adapter are aligned
properly with the chassis on the rear of the server. An incorrectly seated
adapter might cause damage to the system board or the adapter.
12. Reinstall the PCI riser-card assembly in PCI riser connector 1 if you have
removed it previously (see “Installing a PCI riser-card assembly” on page 47).
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 154.
System board
Chassis
Ethernet ports
Rubber
stopper
Adapter
Figure 163. Adapter side view
Figure 164. Port connectors alignment
152 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
