b. Reconnect the power cable 2 to backplane 1.
c. Reconnect the configuration cable 3 to backplane 1.
d. Angle the backplane and place the bottom edge into the slots for
backplane 1 on the chassis.
e. Rotate the backplane upright so that the bracket goes underneath the latch
and tabs on the chassis and is engaged into the slots on the backplane
bracket.
14. Make sure that the configuration cable is connected to all backplanes.
15. Remove the rear controller retention bracket located in the battery bay above
the power supplies by pulling up the release tab 1 and sliding the bracket
outward 2.

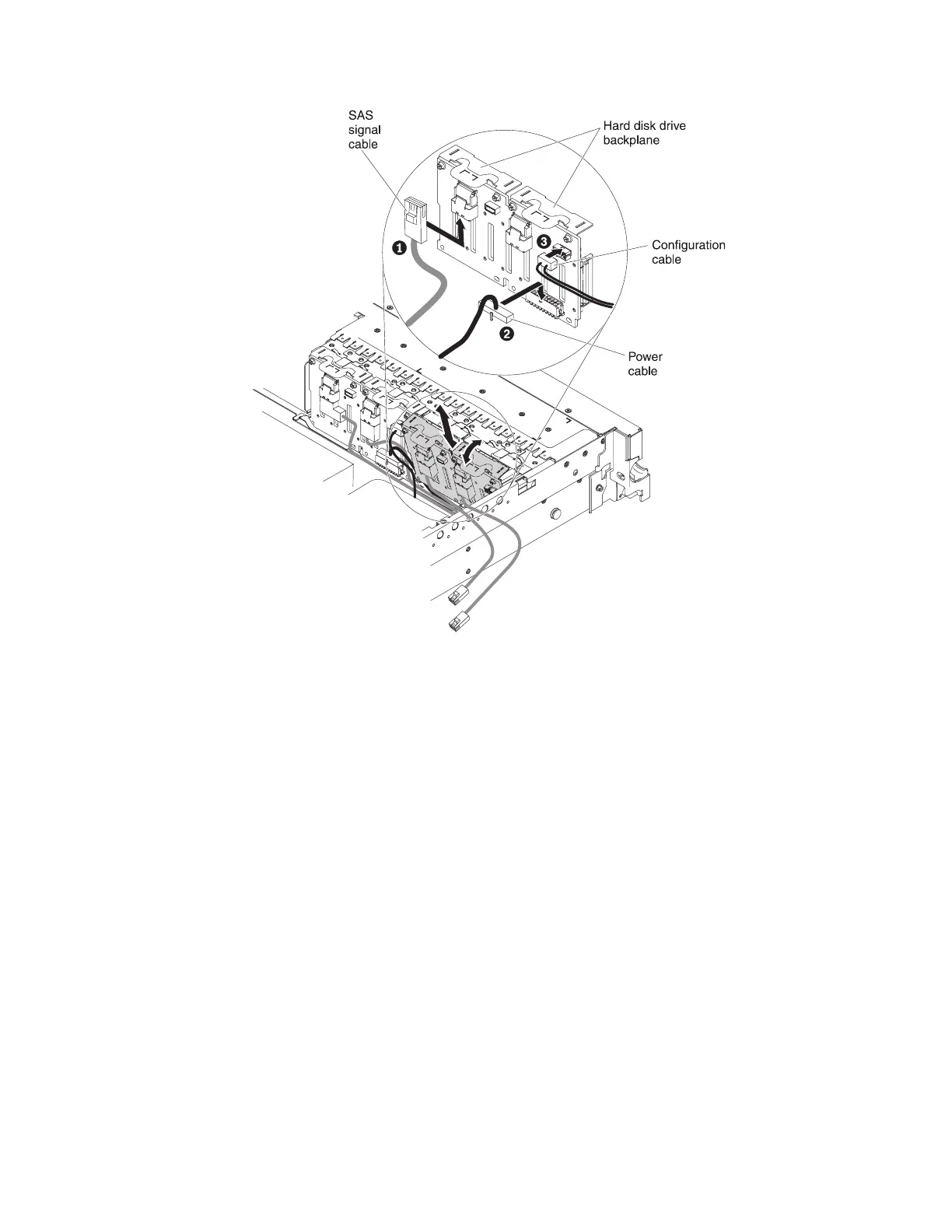

Figure 70. SAS signal cable connection
78 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide

IBM x3650 M3 Specifications

General

Memory	Up to 192 GB DDR3
Memory Slots	18 DIMM slots
Form Factor	2U Rack
Processor	Intel Xeon 5600 series
Storage	SAS/SATA drives
Network Interface	Gigabit Ethernet ports
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
RAID Support	IBM ServeRAID options available
