ACCESSORIES AND INSTALLATION
D Battery
R WARNING! NEVER remove the fuse holders from the
DC power cable.
DO NOT use the cigarette lighter socket for the power
connection (See page 6 for details.) Attach a rubber
grommet when passing the DC power cable through a metal
plate to prevent a short circuit.

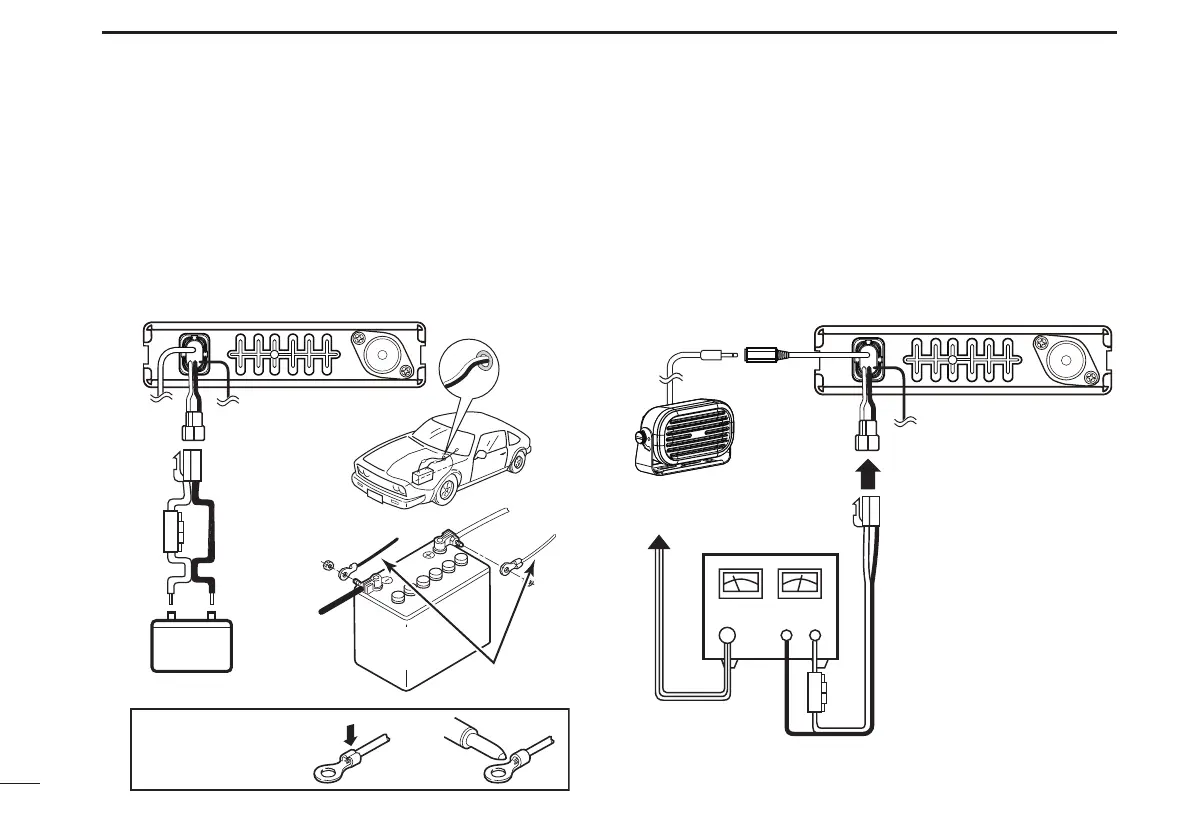

•ConnectingtoaDCpowersource
Fuse
10 A
12 V or 24 V
Grommet
NOTE:
Use terminals for the
cable connections.
Crimp
Solder
+ red
_ black
12 V or 24 V
battery
Supplied
DC power cable
+ red
_ black
IC-450
D DC Power supply
R WARNING! NEVER remove the fuse holders from the
DC power cable.
Use a 13.8 V or 27.6 V DC power supply with at least 3 A
capacity. Make sure the ground terminal of the DC power
supply is grounded.
•ConnectingtoaDCpowersupply
To an
AC outlet
Fuses
10 A
IC-450
+ red
_ black
+
_
Optional
speaker
(SP-35)
DC power supply
13.8 V or 27.6 V
