DISTANCE AND DIRECTION MEASUREMENTS
1. Display a waypoint as described on page 14.
2. Push [EBL1 (VRM1)]/[
] to display
the EBL1 and VRM1, and then set the VRM1 and
EBL1 to the waypoint.
• Push [t] or [u] to rotate the Electronic Bearing Line.
L Push [p] or [q] to increase or decrease the Variable
Range Marker ring size.
3. Push [ENTER]/[ ] to set the VRM/EBL1
setting.
4. Push [EBL2 (VRM2)]/
[ ]
to display
the EBL2 and VRM2, and then set the VRM2
and EBL2 to a target point, for example a next
waypoint.
• The intersection of the EBL1 and VRM1 becomes the
center of the EBL2 and VRM2.
5. The VRM2 displays the distance to the target
from the first waypoint.
• The distance unit can be selected as nautical miles
(NM) or kilometers (km) in the Initial menu.
6. The EBL2 readout displays the direction to the
target from the first waypoint.

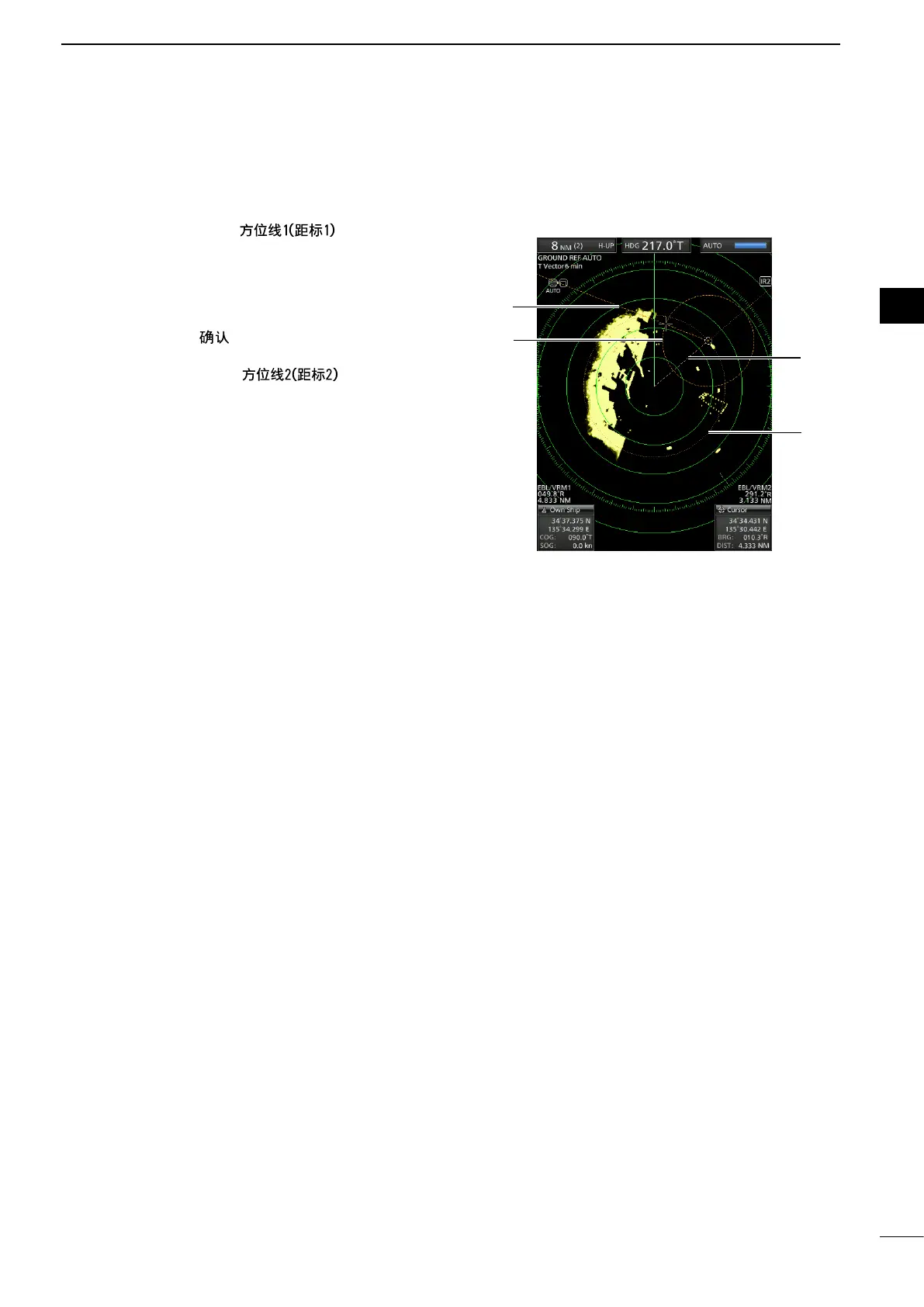

D Measuring the distance and course from a waypoint
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VRM1
EBL1
VRM2
EBL2
