Icom MR-1010RII User Manual

41
8
MENU SCREEN
Cursor Information (Default: Lat/Lon)
Selects the information displayed in the cursor box on
the bottom right of the screen.
• Lat/Lon: Displays the latitude and the longitude.
• TTG: Displays the time to go.

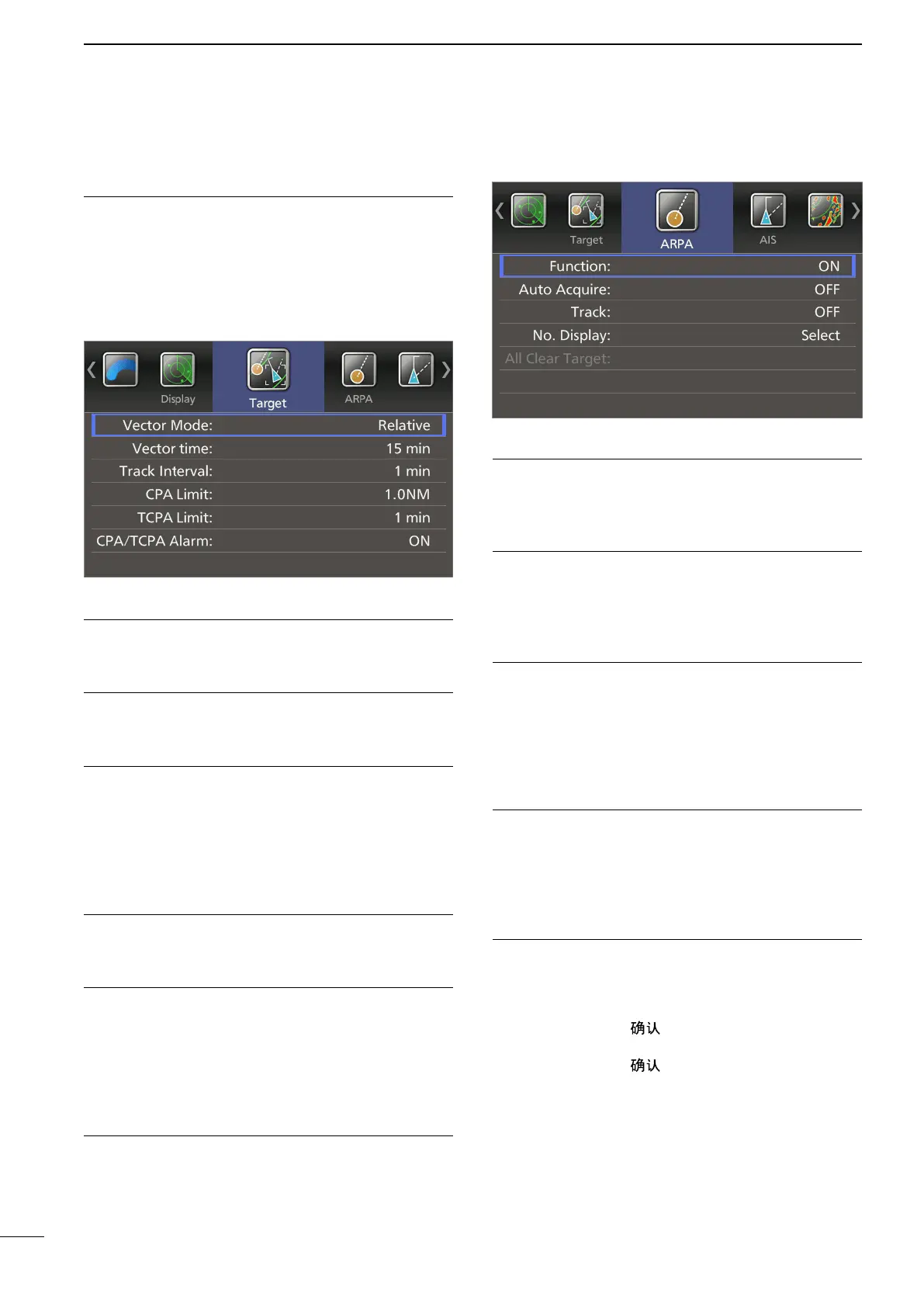

■ Target menu
Vector Mode (Default: True)
• True: Selects the true vector mode.
• Relative: Selects the relative vector mode.
Vector time (Default: 6 min)
Sets the vector length (time) to 30 seconds, 1 minute,
3 minutes, 6 minutes, 15 minutes, or 30 minutes.
Track Interval (Default: 1 min)
Thetrackdataisupdatedatthisspeciedtracking
interval. Sets the track interval 15 seconds, 30
seconds or between 1 and 15 minutes.
After 5 dots are displayed, the oldest dot disappears
at the time when the next dot appears.
CPA* Limit (Default: 1.0 NM)
Sets the CPA (Closest Point of Approach) limit to
between 0.1 and 12.0 NM in 0.1 NM steps.
TCPA* Limit (Default: 1 min)
Sets the TCPA (Time to CPA) limit time to
30 seconds, between 1 and 6 minutes, or 12 minutes.
* CPA/TCPA: Closest Point of Approach and Time to
Closest Point of Approach limits are set to give a
warning when a target or targets enter those limits
around your own vessel.
CPA/TCPA Alarm (Default: ON)
Sets whether the MR-1010RII sounds the CPA/TCPA
alarm, or not.
A CPA/TCPA alarm sounds when both the CPA and
TCPA reach the limit.
■ ARPA menu
Function (Default: ON)
• OFF: Turns OFF the ARPA (Automatic Radar
Plotting Aid) function.
• ON: Turns ON the ARPA function.
Auto Acquire (Default: OFF)
Sets whether the MR-1010RII automatically acquires
targets or not.
• OFF: Does not automatically acquire a target.
• ON: Automatically acquires up to 5 targets.
Track (Default: OFF)
The plot displays the target’s past positions as 5 dots,
duringeachspeciedtrackinginterval.
You can specify the track interval in the “Track
Interval” item of the Target menu.
• OFF: Does not display the target tracks.
• ON: Displays target tracks.
No. Display (Default: Select)
Selectsthetargetidenticationnumbertypethat
appears at the right side of the mark.
• OFF: Does not display any mark number.
• Select: Displays only the selected mark number.
• All: Displays all mark numbers.
All Clear Target
Release all of the ARPA targets at the same time.
When there is no ARPA acquired target, this setting is
grayed out.
1. Push [ENTER]/[
].
2. Push [t] to select <OK>.
3. Push [ENTER]/[ ] again to release all ARPA
targets.
■ Display menu (Continued)
