36
7
OTHER FUNCTIONS
(MENU w Initial w Heading Adjust)

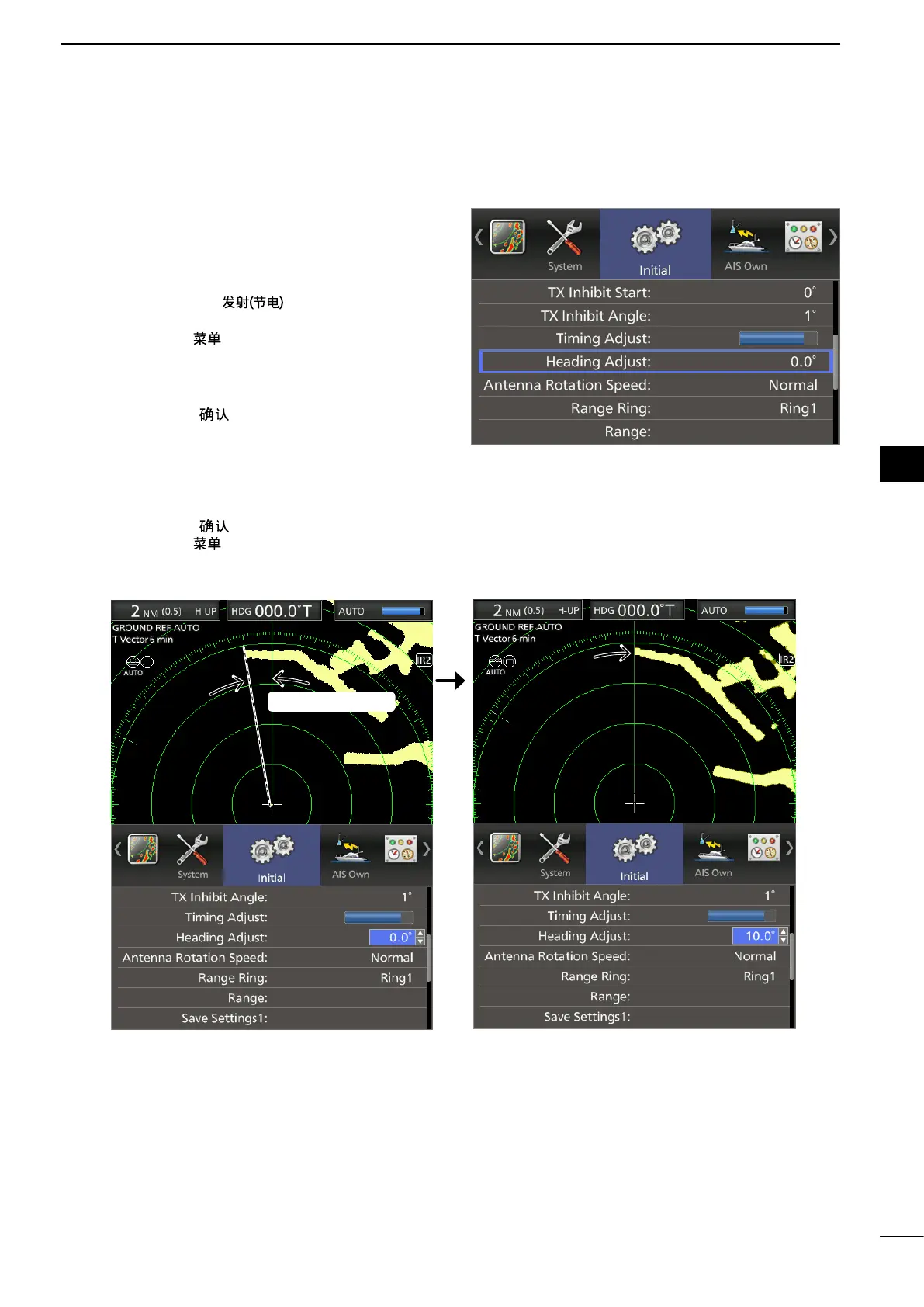

■ Heading adjustment
If the heading marker line differs from the exact bow
direction, adjust the heading marker line manually.
This may be helpful when the scanner has not been
mounted correctly in the line with the bow.
1. Line up the bow of the boat with a fixed target.
2. Push [TX (SAVE)]/[ ] to display the target
on the screen.
3. Push [MENU]/[ ] to display the Menu screen.
4. Push [t] or [u] to select the Initial menu.
5. Push [p] or [q] to select the “Heading Adjust”
item.
6. Push [ENTER]/[ ] to enter the option selection
mode.
7. Push [p] or [q] to adjust the heading until the
target on the screen meets the heading marker.
(The difference can be readout on the menu
screen.)
8. Push [ENTER]/[ ] to save the setting.
9. Push [MENU]/[ ] to exit the Menu screen.
Push [p] or [q] to adjust the heading.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Angle difference
