IDEC FT1A Series User Manual

S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 5-37
5: S PECIAL F UNCTIONS
Programming WindLDR
To use frequency measurement, you must configure the Function Area Settings in WindLDR and download the user program to
the SmartAXIS. Frequency measurements will start when you download the user program and set the SmartAXIS to run.

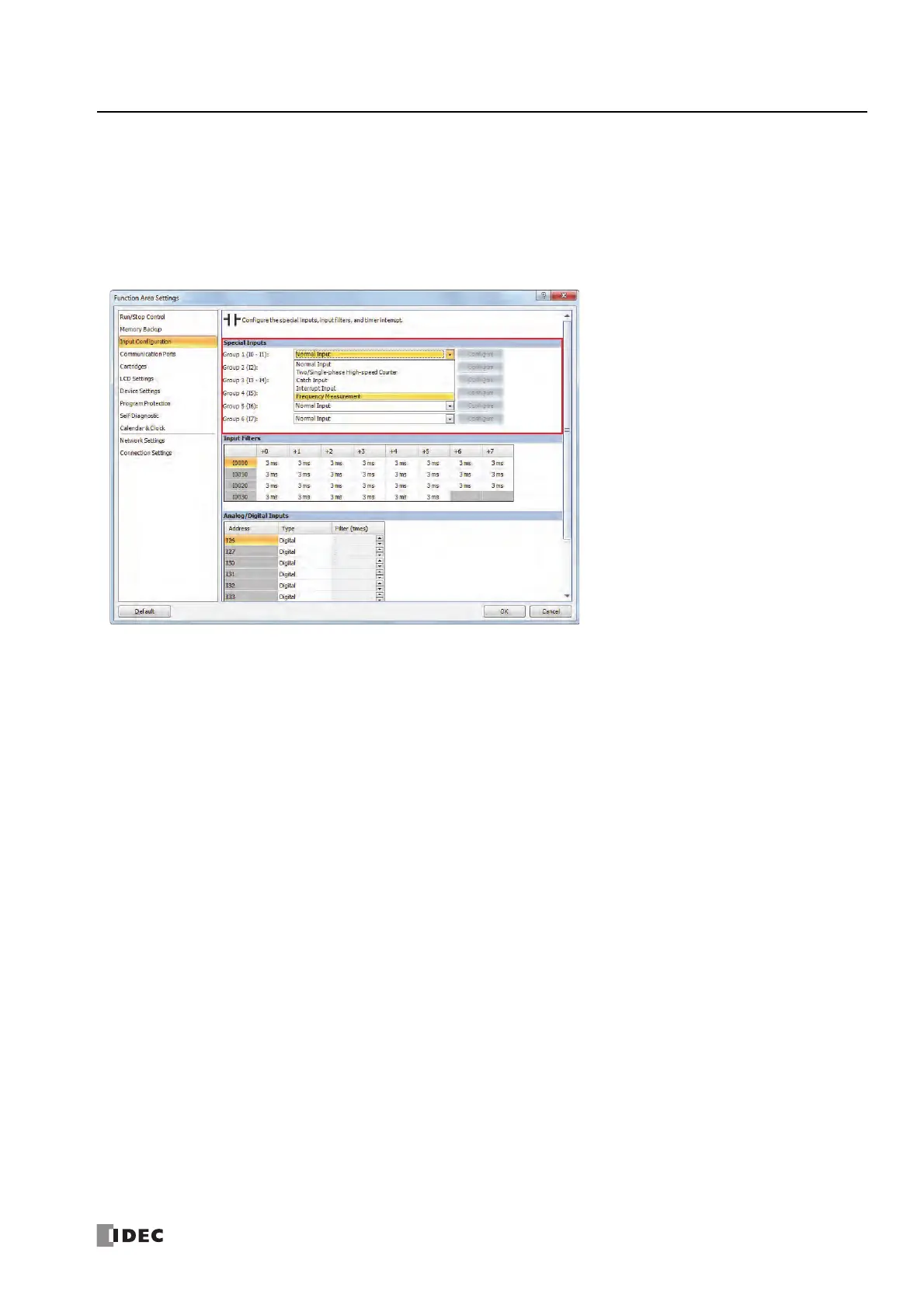

1. From the WindLDR menu bar, select Configuration > Input Configuration.
The Function Area Settings dialog box is displayed.
2. Specify Frequency Measurement for the group to use frequency measurement.
3. Click OK.
This concludes configuring the settings.

IDEC FT1A Series Specifications

General

Programming Software	WindLDR
Type	Programmable Logic Controller (PLC)
Display	LCD (varies by model)
Communication Ports	RS232C/RS485 (built-in), USB (programming), Ethernet (optional)
Dimensions	Varies by model
Weight	Varies by model
Model	FT1A Series
