S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 5-59
5: S PECIAL F UNCTIONS
■Configuration in the Function Area Settings

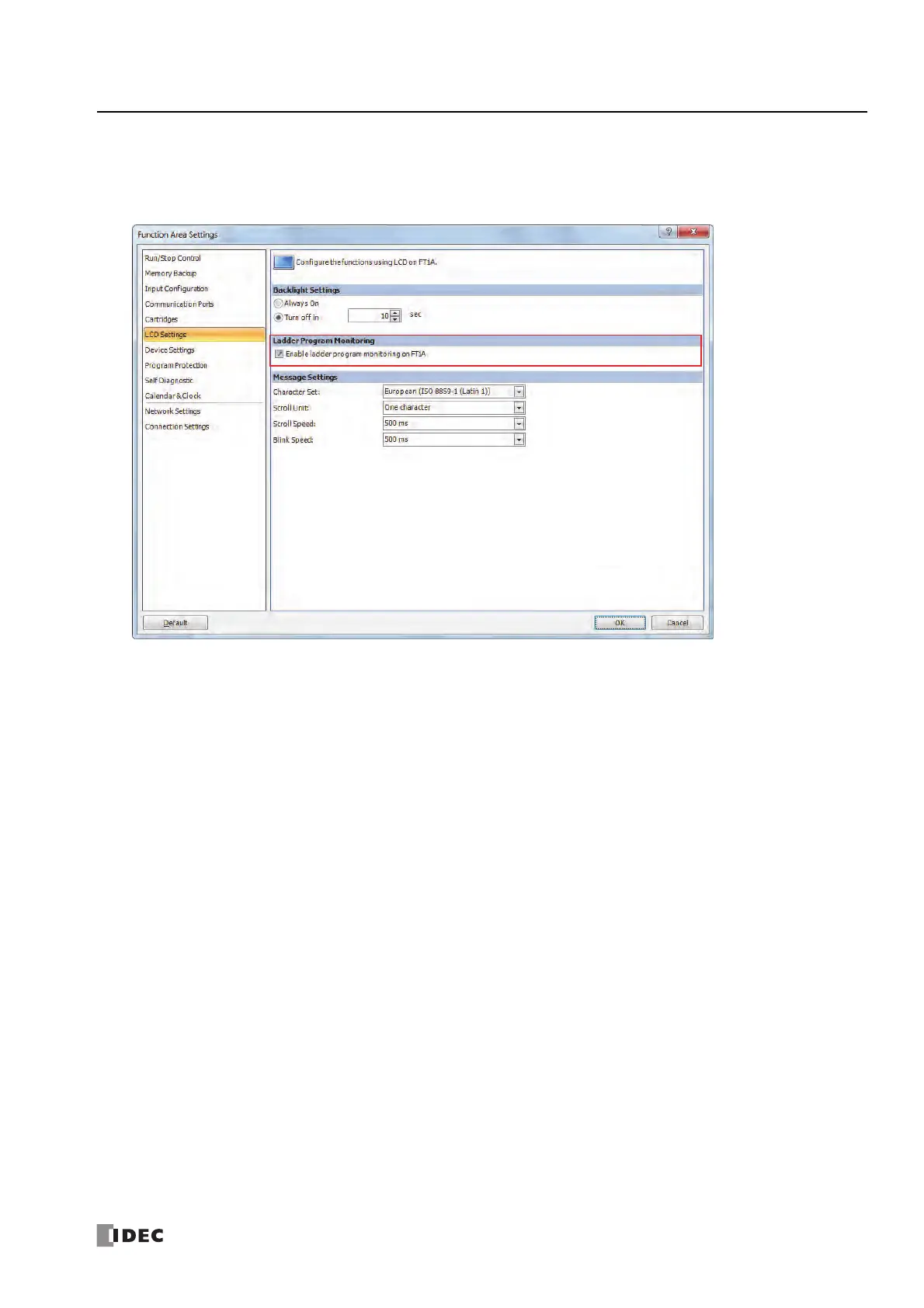

1. From the WindLDR menu bar, select Configuration > LCD Settings.
The Function Area Settings dialog box is displayed.
2. Select the Enable ladder program monitoring on FT1A check box.
3. Click the OK button.
This concludes configuring the settings.
Note: The setting you select in the Ladder Program Monitoring on FT1A dialog box at the start up of WindLDR can be changed in the Function Area
Settings dialog box later.

IDEC FT1A Series Specifications

General

Programming Software	WindLDR
Type	Programmable Logic Controller (PLC)
Display	LCD (varies by model)
Communication Ports	RS232C/RS485 (built-in), USB (programming), Ethernet (optional)
Dimensions	Varies by model
Weight	Varies by model
Model	FT1A Series
