IDEC FT1A Series User Manual

5: S PECIAL F UNCTIONS
5-76 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378
2. Click New button or select an existing remote host and click Edit button.

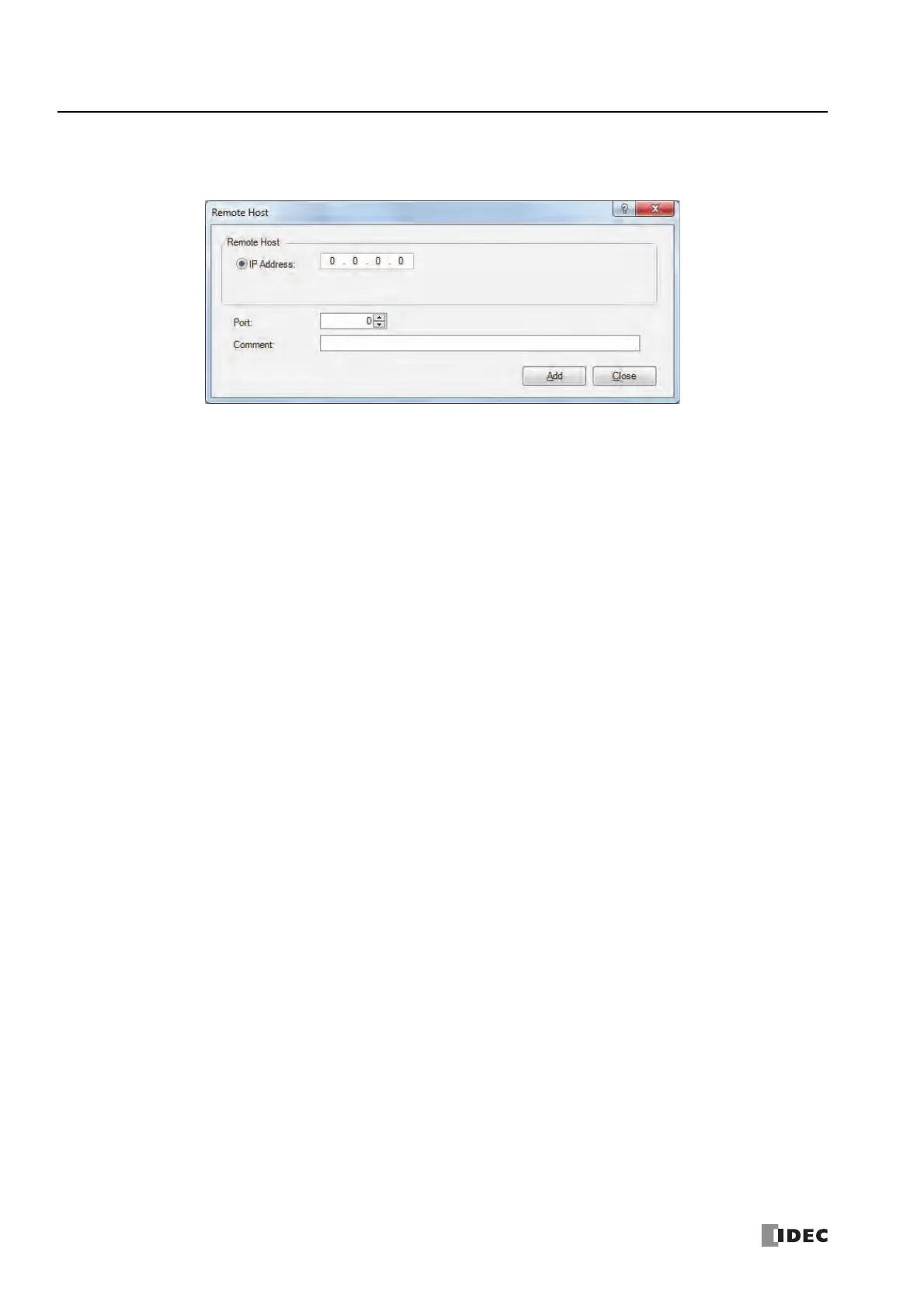

The Remote Host dialog box appears.
3. Configure the parameters in the Remote Host dialog box and then click on Add button.
A new remote host will be added in the Remote Host List dialog box. If you want to add additional remote hosts, repeat the
same procedure. After adding remote hosts has been completed, click on Close button.
4. If you want to delete an unused remote host, select that remote host in the Remote Host List dialog box and click on Delete
button.
Once a remote host is deleted, the remote host numbers of the following remote hosts are changed. As a result, the functions
referring to those remote hosts, such as Modbus TCP client, or User communication client, will be affected,
IP Address: Specify the remote host with an IP address.
Port Number: Specify the port number of the remote host. This port number is the TCP communication port number. It
differs from the SmartAXIS USB port number (port 1) and the expansion communication port numbers (port
2, 3).
Comment: The comment for the remote host can be assigned. The contents or the length of the comment has no effect
on the SmartAXIS operation.
