9: M
AINTENANCE
C
OMMUNICATION
9-10
S
MART
AXIS P
RO
/L
ITE
U
SER
'
S
M
ANUAL
FT9Y-B1378
19.
From the WindLDR menu bar
, select
Online
>
PLC
>
Status
.

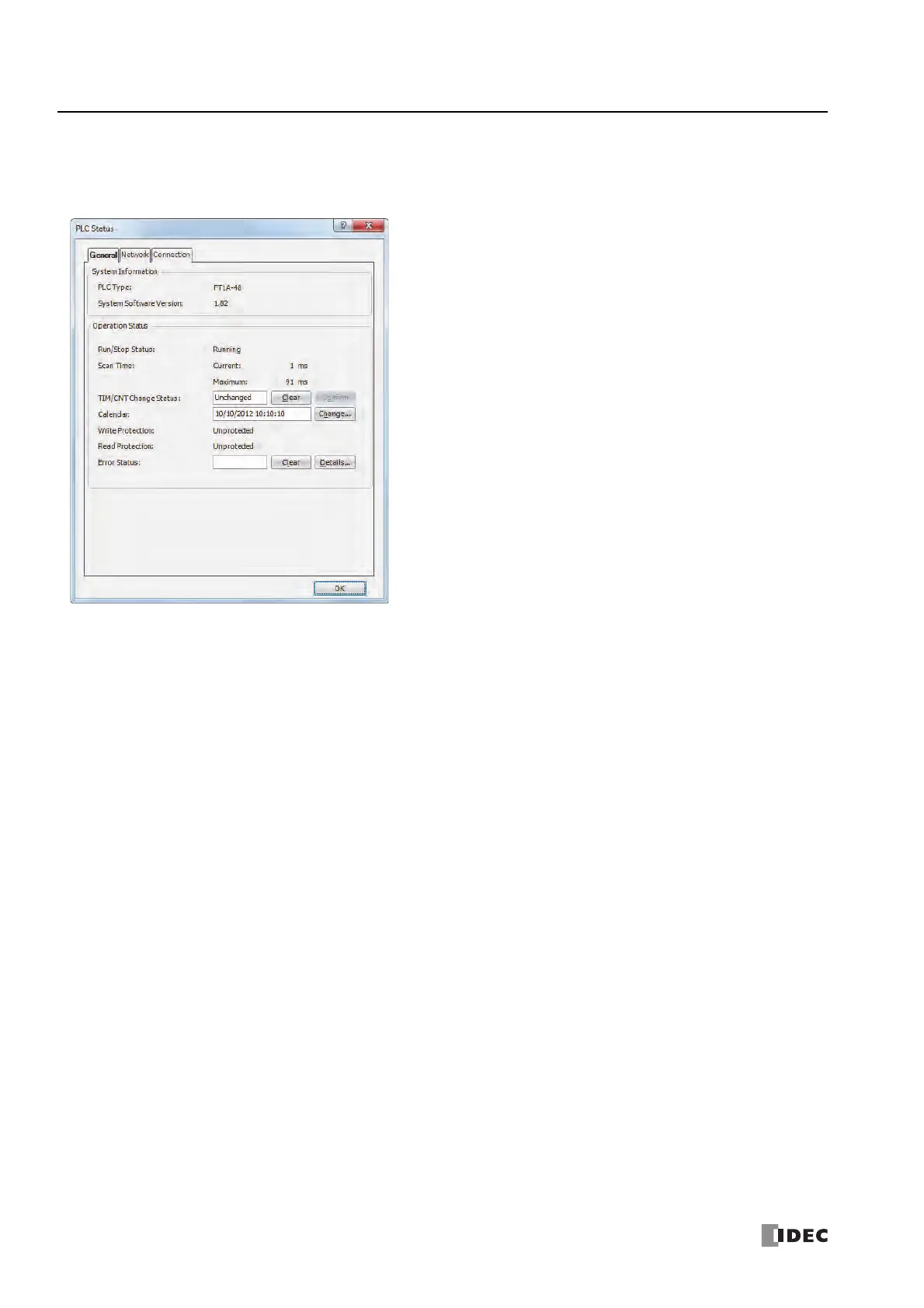

The PLC Status dialog box appears.
20.
Check tha
t the SmartAXIS mod
ule type and syst
em
software version are displayed correctly
.
Configuring the init
ial Ethernet
setup for
the maintenance communication server is no
w complete. Y
ou can download and upload
user programs and monitor and change device values via Ethernet.
