10: U SER C OMMUNICATION I NSTRUCTIONS
10-10 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

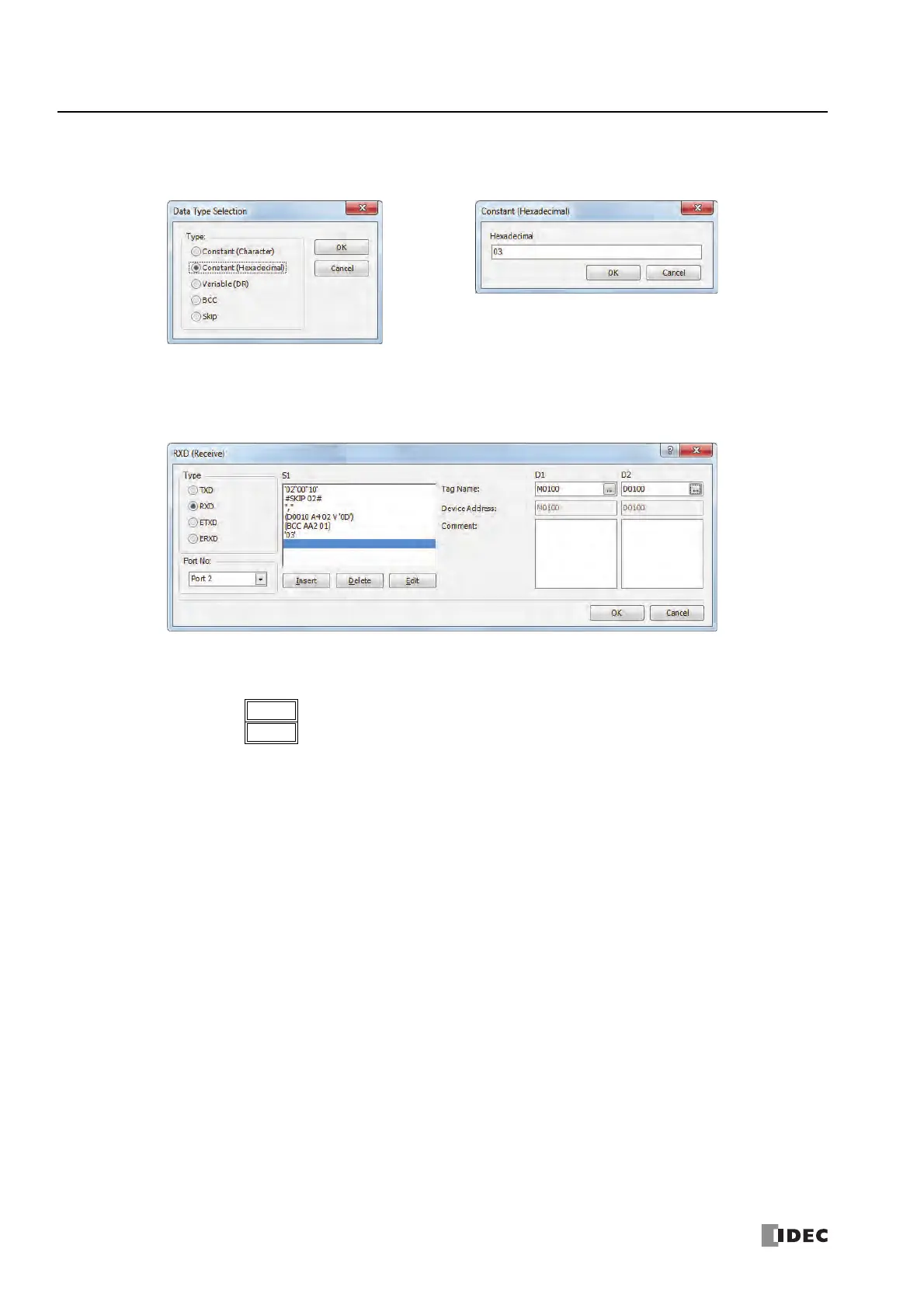

8. Once again in the Data Type Selection dialog box, click Constant (Hexadecimal) and click OK. Next, in the Constant
(Hexadecimal) dialog box, type 03 to program the end delimiter ETX (03h). When finished, click OK.
9. In the Receive instruction dialog box, type M100 in the destination D1 box and type D1000 in the destination D2 box. When
finished, click OK.
Programming of the RXD instruction is complete and the receive data will be stored as follows:
1234h
D10
0005h
D11
= 4660
= 5
