IDEC FT1A Series User Manual

S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 10-17
10: U SER C OMMUNICATION I NSTRUCTIONS
Programming WindLDR (User Communication Client)
To use the user communication client, configure the user client communication settings in the Function Area Settings dialog box
and then download the user program to the SmartAXIS.

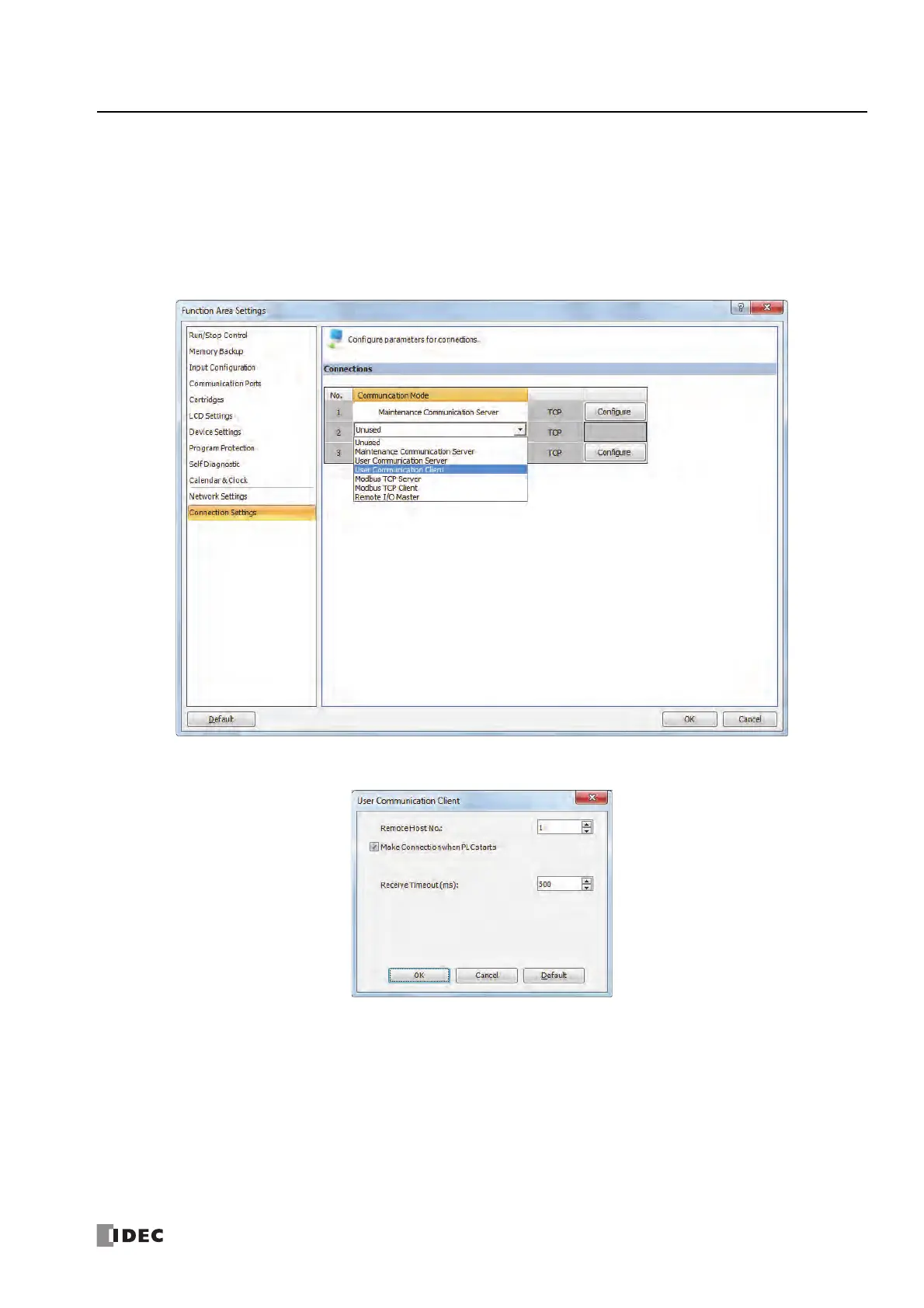

1. Select Configuration from the WindLDR menu bar, and then click Connection Settings.
The Function Area settings dialog box appears.
2. Select the User Communication Client as the communication mode for the client connection 1.
The User Communication Client dialog box appears.
Configure the remote host number and receive timeout. If you want the SmartAXIS to establish the connection when it starts to
run, select “Make Connection when PLC starts.” Click OK button to close the dialog box.
