IDEC FT1A Series User Manual

10: U SER C OMMUNICATION I NSTRUCTIONS
10-20 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

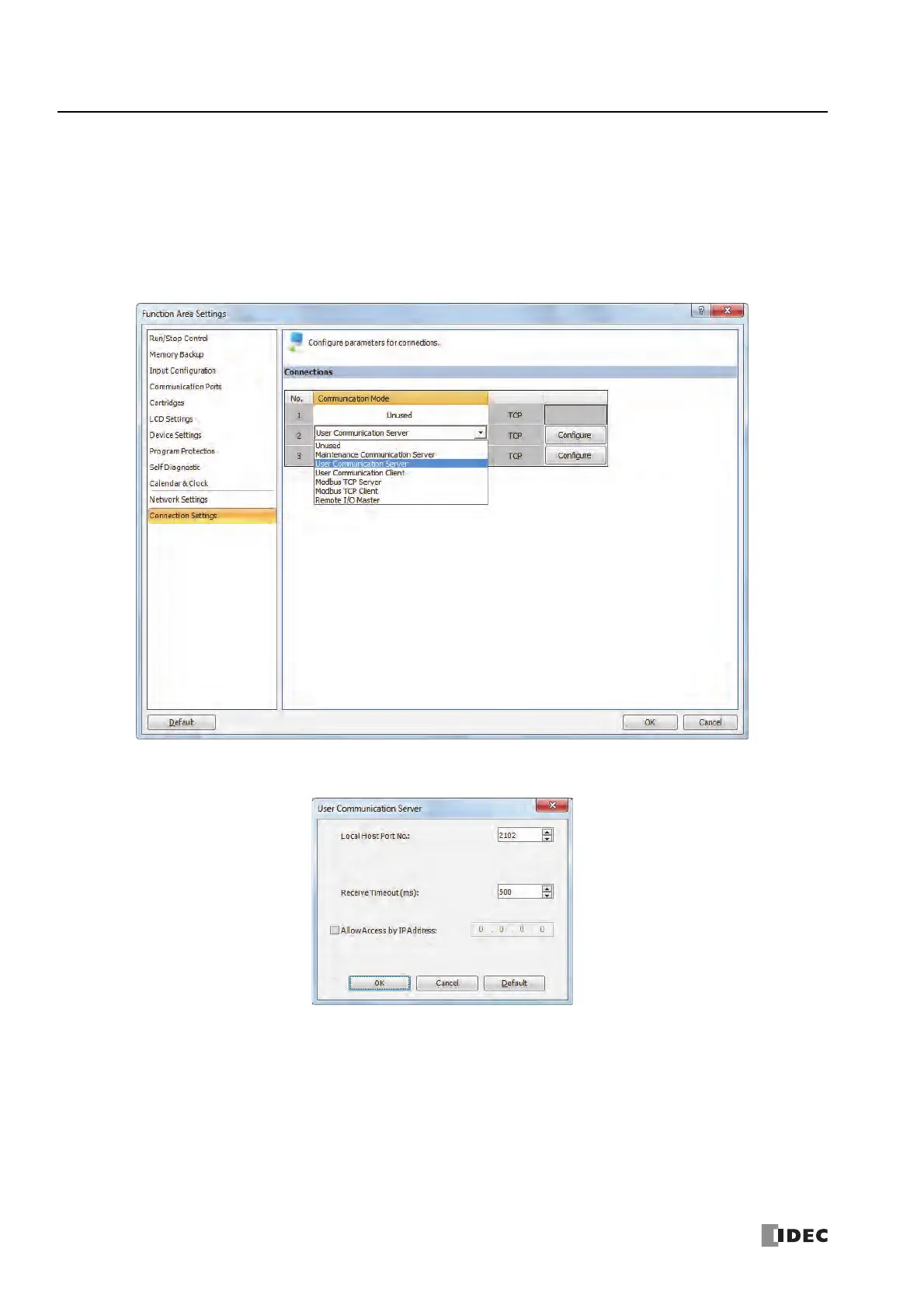

Programming WindLDR (User Communication Server)
To use the user communication server, configure the user communication server settings in the Function Area Settings dialog box
and then download the user program to the SmartAXIS.
1. Select Configuration from the WindLDR menu bar, and then click Connection Settings.
The Function Area settings dialog box appears.
2. Select the User Communication Server as the communication mode for the server connection 1.
The User Communication Server dialog box appears.
Configure the local host port number and receive timeout. If you want to restrict the access using IP address, configure the
allowed IP address.

IDEC FT1A Series Specifications

General

Brand	IDEC
Model	FT1A Series
Category	Controller
Language	English
