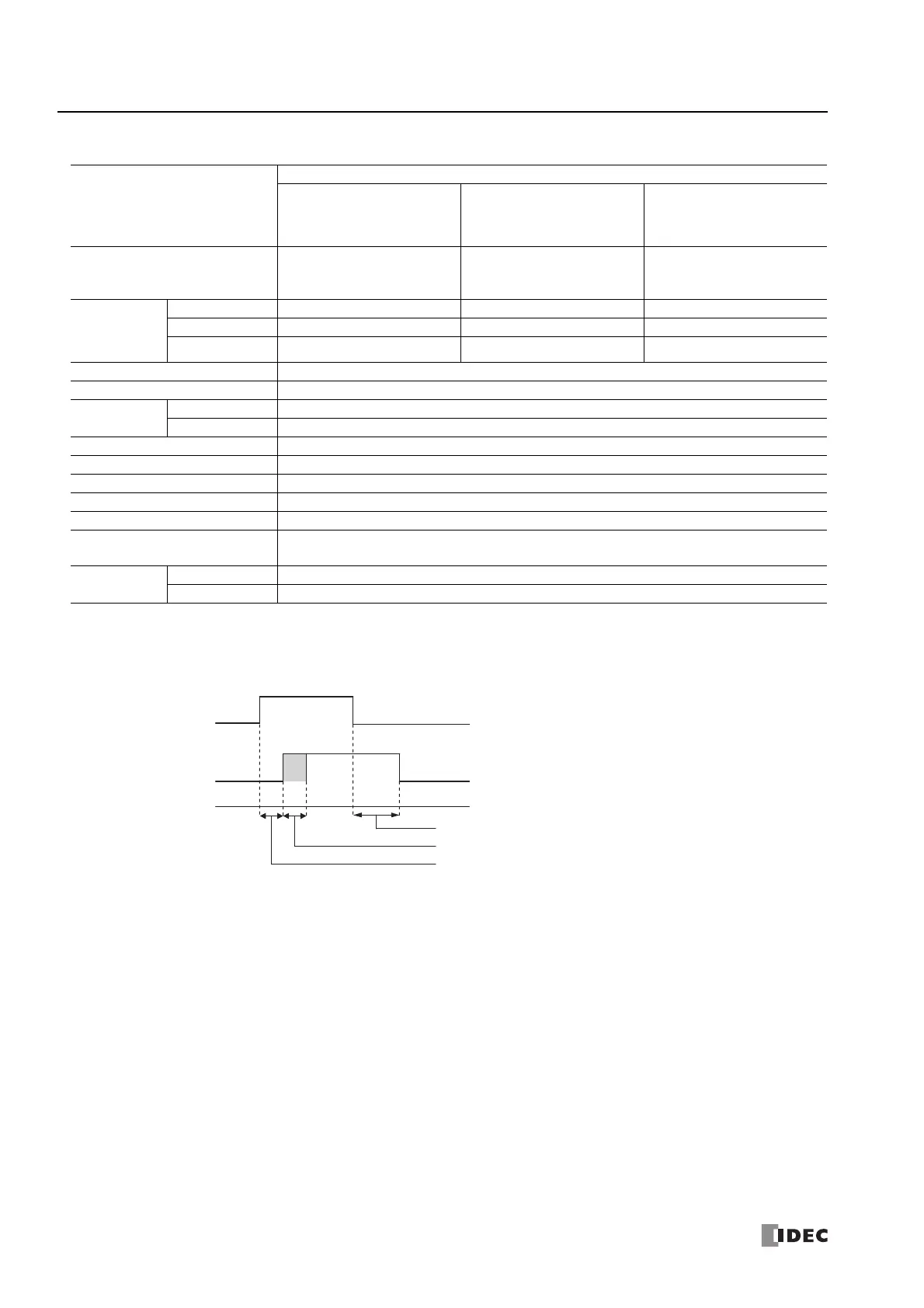

Output Specifications (2A Relay)
Note: Values for resistive/inductive load.
Output Delay
Type Number
FT1A-
H24RC
B24RC
H24RA
B24RA
H40RC
B40RC
H40RKA
H40RSA
B40RKA
B40RSA
No. of Outputs
(Terminal No.)
4
(Q4 to Q7)
12
(Q4 to Q7, Q10 to Q13,
Q14 to Q17)
8
(Q4 to Q7, Q10 to Q13)
Output
Points per
Common
Line
COM4 4 (Q4 to Q7) 4 (Q4 to Q7) 4 (Q4 to Q7)
COM5 — 4 (Q10 to Q13) 4 (Q10 to Q13)
COM6 — 4 (Q14 to Q17) —
Terminal Arrangement See "Terminal Arrangement" on page 2-16.
Output Type 1a contact
Maximum
Load Current
1 point 2A
1 common line 8A maximum
Minimum Switching Load 0.1 mA/0.1V DC (reference value)
Initial Contact Resistance 1A, 6V DC
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load (Note) 250V AC/2A, 30V DC/2A
Dielectric Strength
Between output terminal and internal circuit: 2,300V AC, 1 minute
Between output terminals (COMs): 2,300V AC, 1 minute
Status
Display
Pro LCD display
Lite —
OFF delay: 10ms maximum
Chatter: 6ms maximum
ON delay: 6ms maximum
Command
Output Relay Status
ON
OFF
ON
OFF
