IDEC FT1A Series User Manual

S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 2-13
2: P RODUCT S PECIFICATIONS

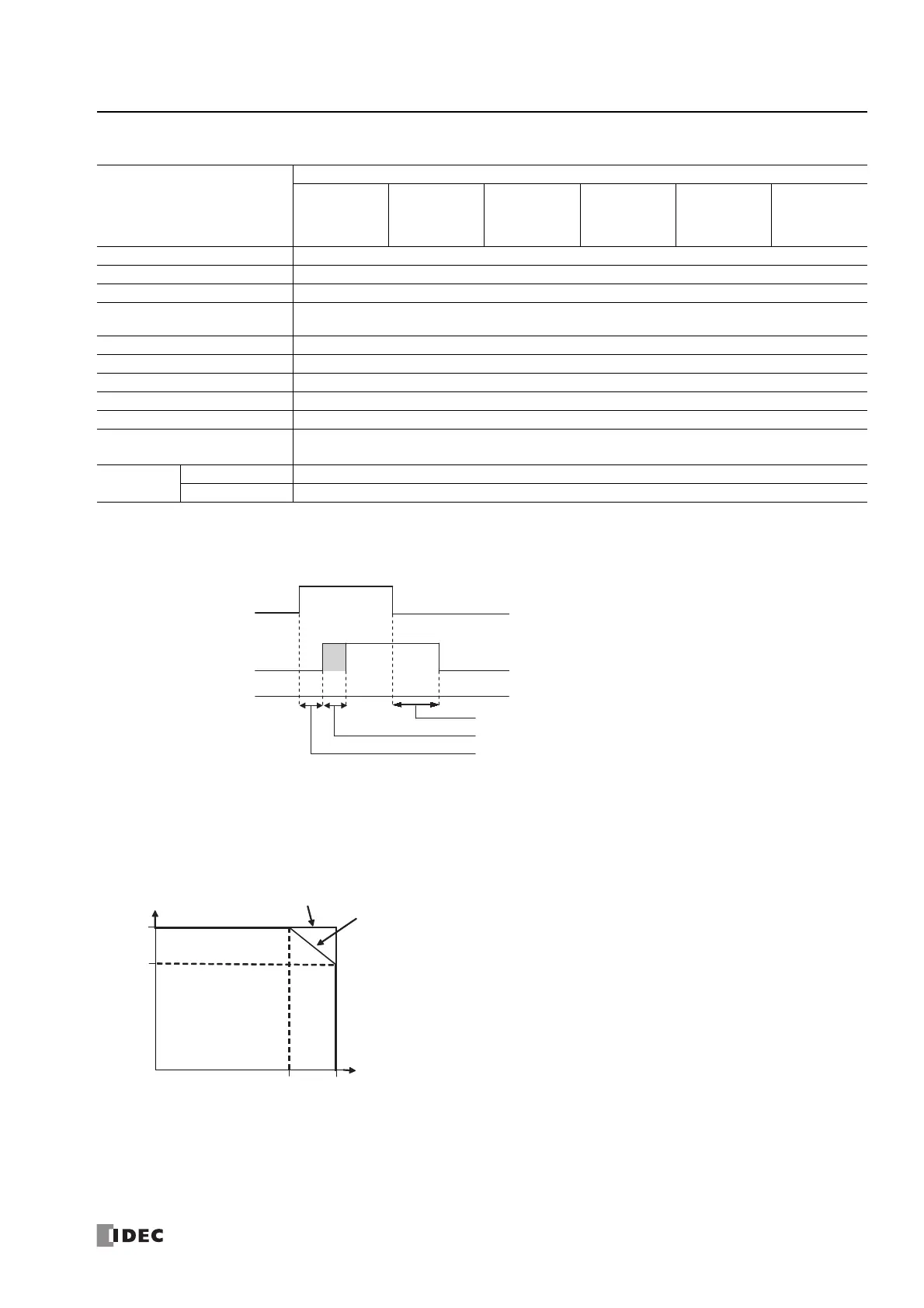

Output Specifications (10A Relay)
Note: Values for resistive/inductive load.
Output Delay
Derating
When using the SmartAXIS at an operating temperature of 45°C or higher, reduce the output current of the 10A relay and power
supply voltage as shown in the figure below.
Normal Installation
Note: UL, c-UL Listed at 0 to +50°C (FT1A Version V110).
Type Number
FT1A-
H12RC
B12RC
H12RA
B12RA
H24RC
B24RC
H24RA
B24RA
H40RC
B40RC
H40RKA
H40RSA
B40RKA
B40RSA
No. of Outputs (Terminal No.) 4 (Q0 to Q3)
Terminal Arrangement See "Terminal Arrangement" on page 2-16.
Output Type 1a contact
Maximum Load Current
(Note)
10A
Minimum Switching Load 10mA/5V DC (reference value)
Initial Contact Resistance 100m maximum (1A, 6V DC)
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load (Note) 250V AC/10A, 30V DC/10A
Dielectric Strength
Between output terminal and internal circuit: 2,300V AC, 1 minute
Between output terminals (COMs): 2,300V AC, 1 minute
Status
Display
Pro LCD display
Lite —
OFF delay: 10ms maximum
Chatter: 6ms maximum
ON delay: 6ms maximum
Command
Output Relay Status
ON
OFF
ON
OFF
24V 28.8V
0
8A
10A
55
Operating Temperature
45 °C
Operating Temperature
Power Supply Voltage
°C
Output Current
