IDEC FT1A Series - Page 38

2: P RODUCT S PECIFICATIONS
2-18 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378
FT1A-H40RSA, FT1A-B40RSA

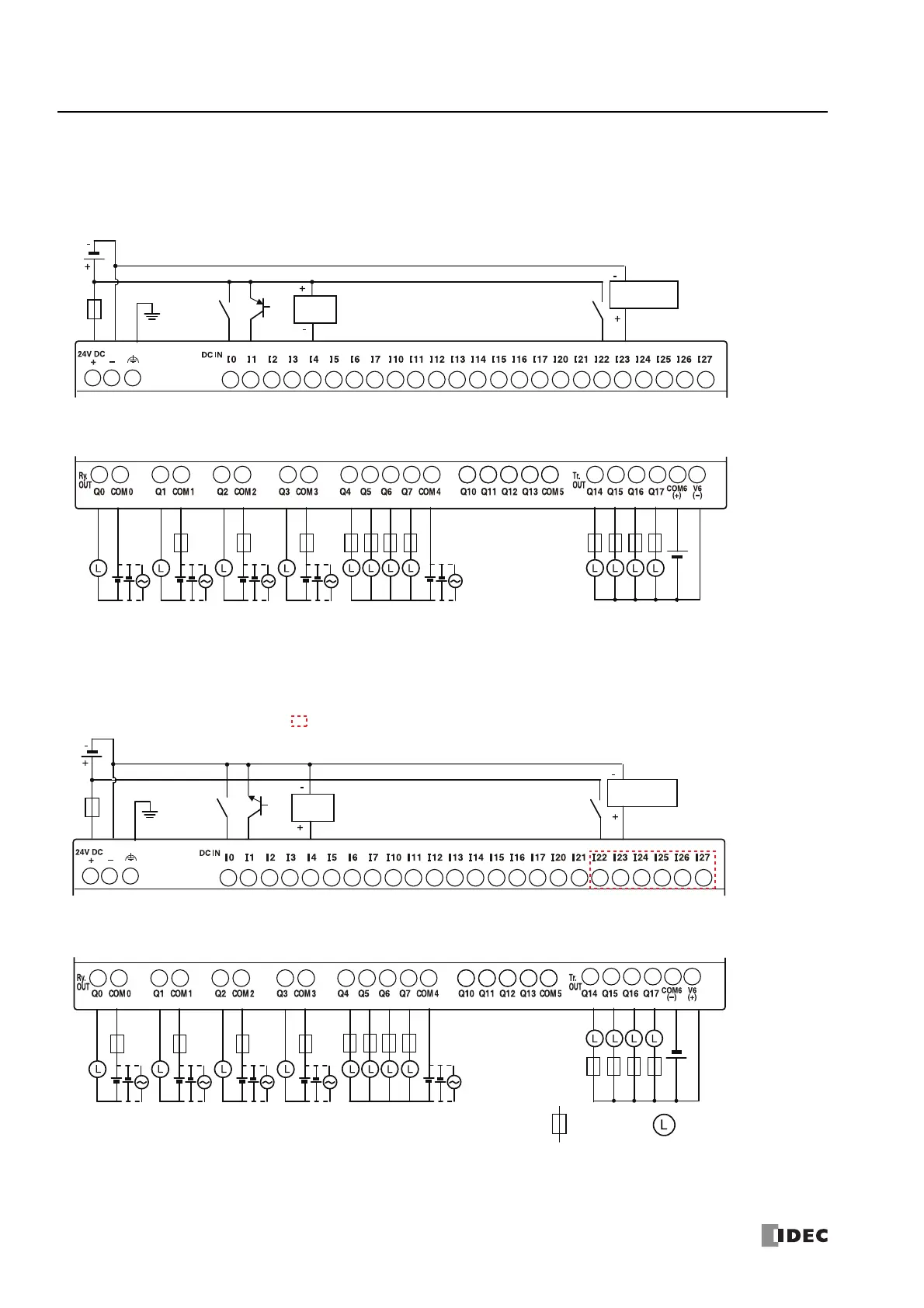

Terminal Arrangement and I/O Wiring Diagrams
FT1A-H40RKA, FT1A-B40RKA
Terminal Arrangement and I/O Wiring Diagrams
●
Sink Input
Input Side
Output Side
●
Source Output (Transistor Output)
2-wire
Sensor
Analog voltage
output device
: Fuse
: Load
●
Source Input (Analog/Digital Shared Input is Sink Input)
Input Side
Output Side
●
Sink Output (Transistor Output)
2-wire
Sensor
Analog voltage
output device
