5: S PECIAL F UNCTIONS
Reading the data register values from ROM
When M8155 turns on at the end of scan, the values in the corresponding ROM are read and stored in the data registers specified
by D8184 (start address to read) and D8185 (number of registers to read). After reading values, the execution status is stored in
D8133 and M8155 turns off.

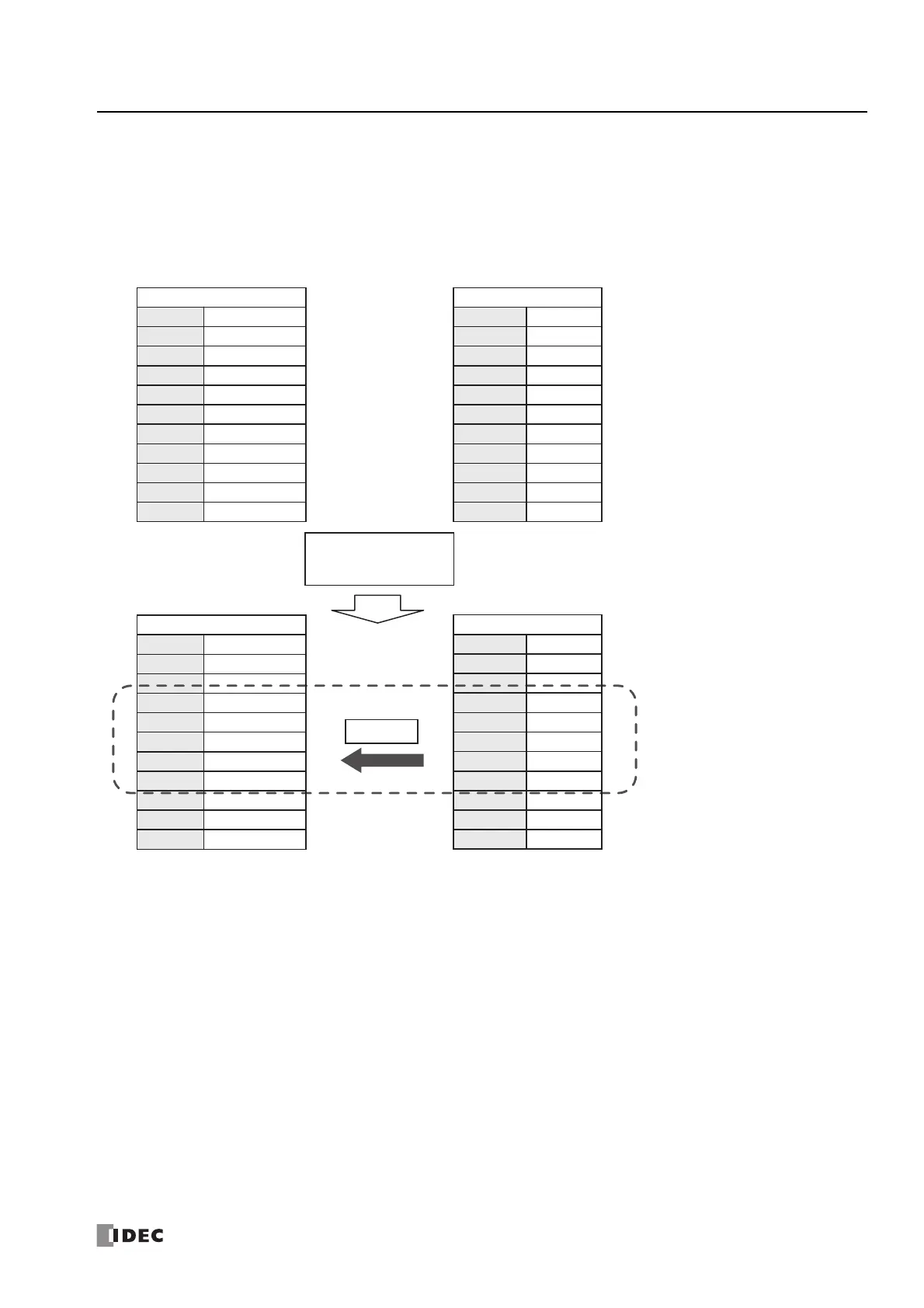

Example 1: When reading the values of D0100 to D0179 (80 words) with a 12-I/O model, specify D8184=(100) and D8185=(80),
and then turn on M8155.
Data registers ROM
D0000 1234 D0000 111
D0001 2345 D0001 222
: :
D0100 440 D0100 10
D0101 441 D0101 20
: :
D0178 518 D0178 700
D0179 519 D0179 710
:
:
:
:
:
:
:
:
D0398 6789 D0398 888
D0399 7890 D0399 999
MORData registers
D0000 1234 D0000 111
D0001 2345 D0001 222
:
D0100 10 D0100 10
D0101 20 D0101 20
:
D0178 700 D0178 700
D0179 710 D0179 710
:
:
:
:
D0398 6789 D0398 888
D0399 7890 D0399 999
:
:
:
:
:
:
80 words
When D8184=(100)
and D8185=(80),
M8155 is on
