INITIAL SETTING
4
p.23
1 BOARD ID SETTING
Board ID is used for redundancy function and global anti pass-back. If more than one iMDC-
MAIN board is used, Board IDs must be different than each others.

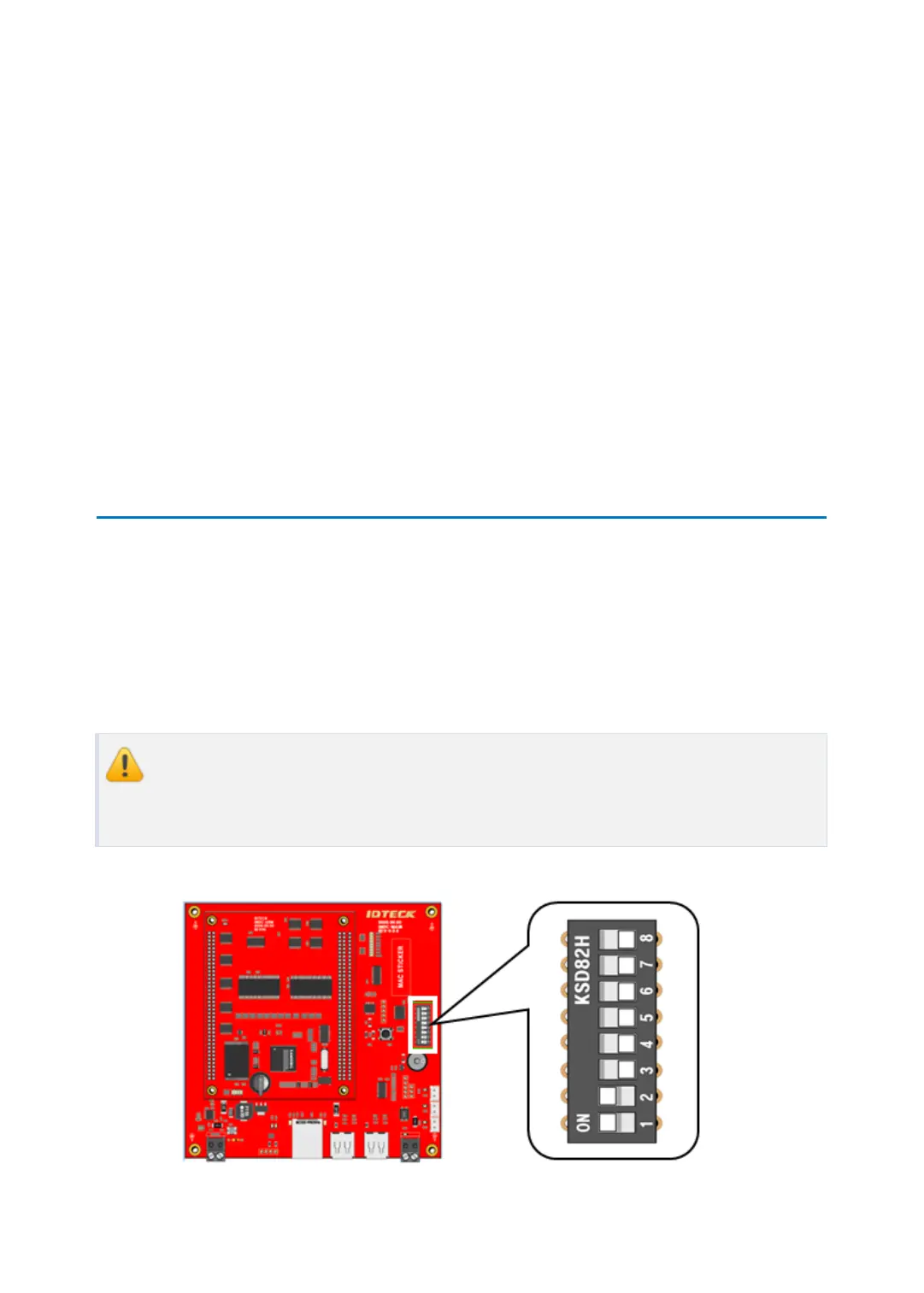

There is an 8 channel DIP switch on the right middle of the iMDC-MAIN for Board ID setting.
Each channel of DIP switch has assigned address values and the Board ID is the sum value of
each switch set to “ON” position. Refer to the example below.
Board ID must be set before main power connection to the iMDC-MAIN.
If more than one iMDC-MAIN boards are installing, you must set different Board ID
for each iMDC-MAIN board.
