IDTECK iMDC-MAIN - In Case of Power Fail Secure Door Lock; Alarm Device Wiring

WIRINGp.32

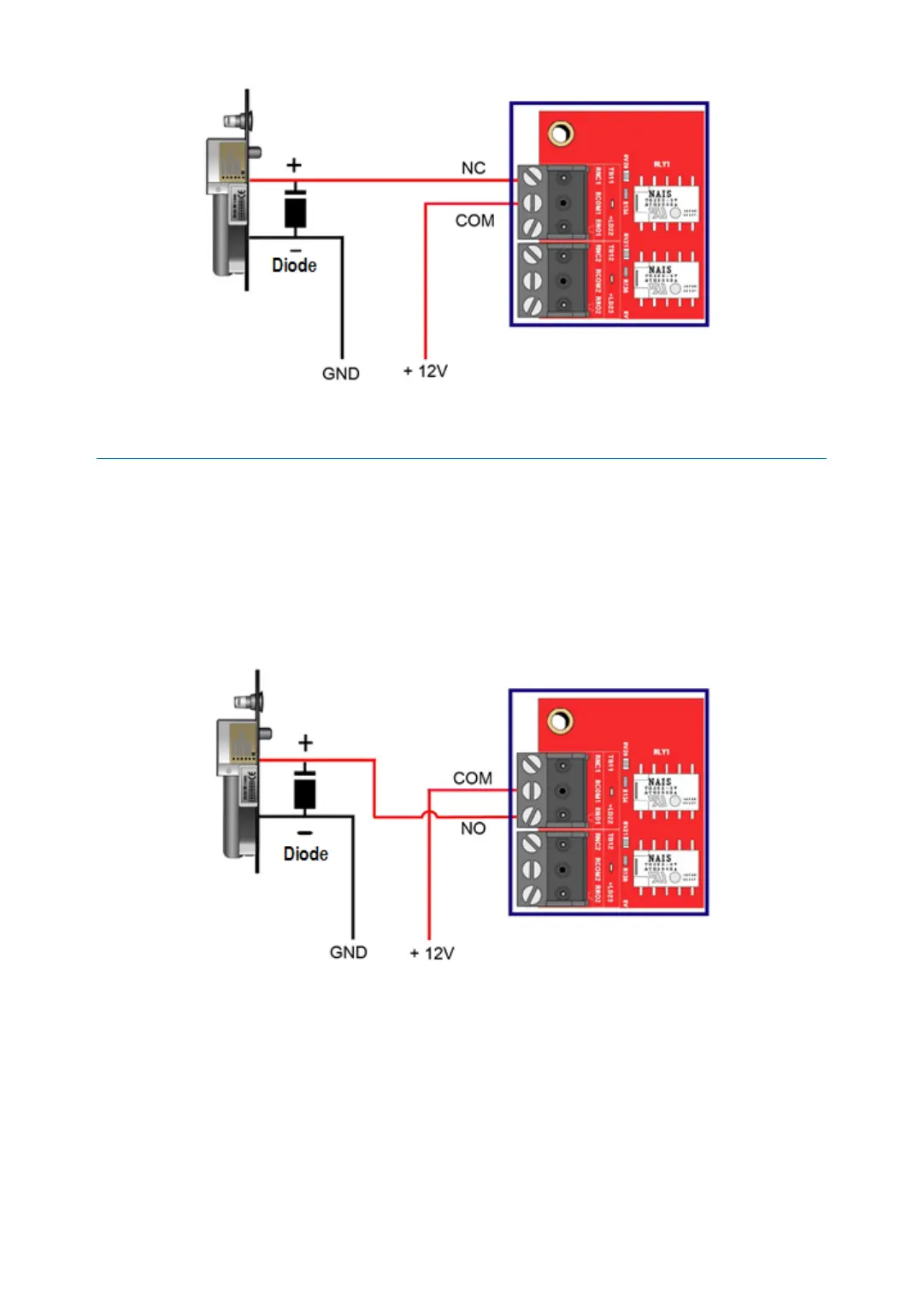

IN CASE OF POWER FAIL SECURE DOOR LOCK;
●
Connect +12V wire of DC12V power supply to Output Port terminal block (RCOM1) of i
MDC-RIM.
●
Connect (+) wire of Door Lock to Output Port terminal block (RNO1) of iMDC-RIM.
●
Connect (-) wire of Door Lock to GND(-) wire of DC12V power supply.
●
Must connect reverse diode between (+) wire and (-) wire of Door Lock. [IMPORTANT]
9.2 ALARM DEVICE WIRING
●
Connect +12V wire of DC12V power supply to Output Port terminal block (RCOM2) of i
MDC-RIM.
●
Connect (+) wire of Alarm Device to Output Port terminal block (RNO2) of iMDC-RIM.
