IDTECK iMDC-MAIN - Wiring When Ports Are Not Enough to Connect to Network Device

p.29NETWORK CABLE WIRING BETWEEN iMDC-MAIN AND iMDC-RIM
6.2 WIRING WHEN PORTS ARE NOT ENOUGH TO CONNECT TO NETWORK DEVI
CE

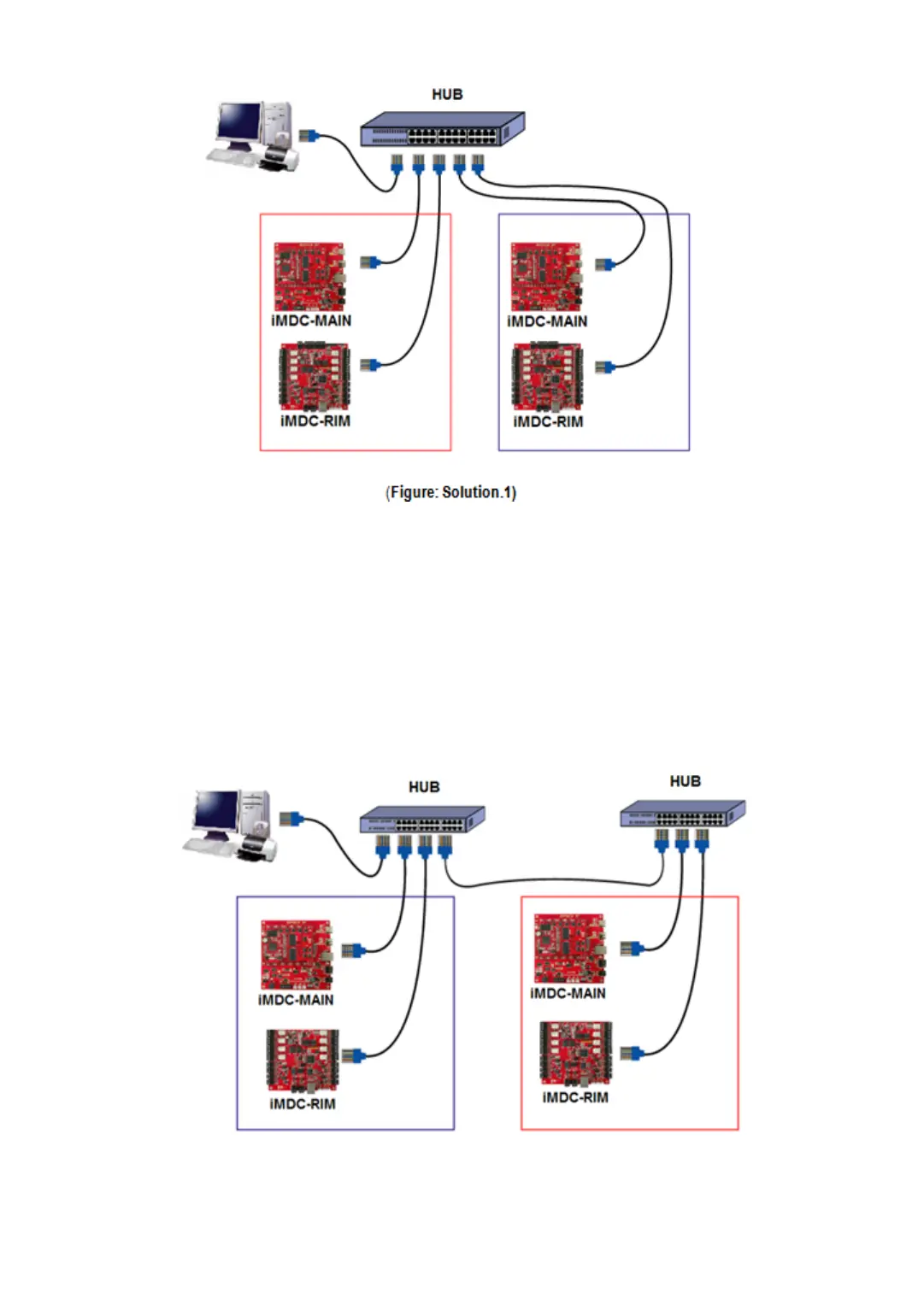

If there are not enough TCP/IP ports to connect network devices (hub, router, etc), configur
e equality network using by cross cable and then follow the ‘(Figure: Solution 2)’. Please refe
r to ‘6.Network setting’ for more information about IP setting between iMDC-MAIN and iMD
C-RIM.
