IDTECK iMDC-MAIN - IMDC-RIM BOARD ARRANGEMENT and DESCRIPTION

iMDC INSTRUCTIONp.16

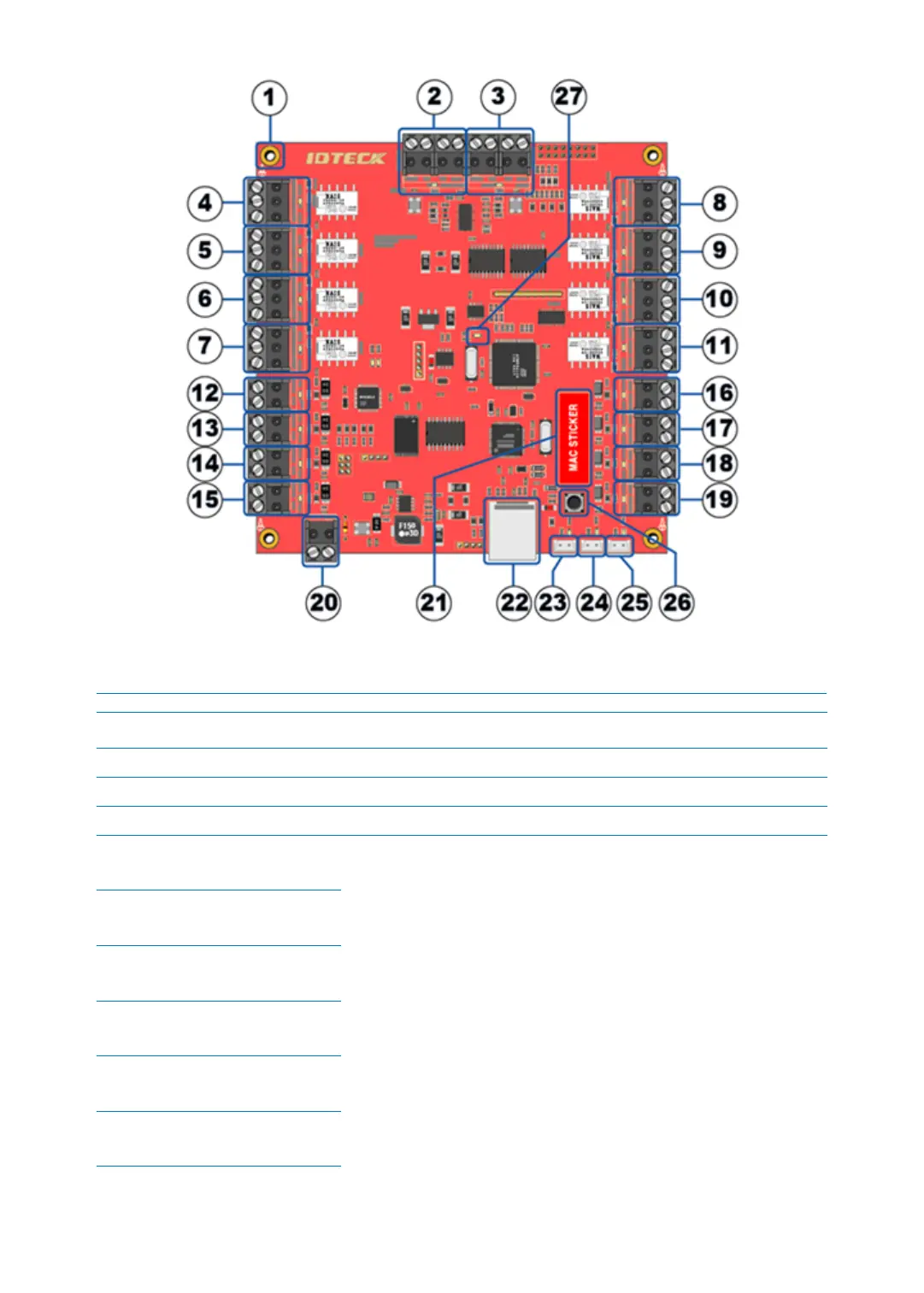

iMDC-RIM BOARD ARRANGEMENT AND DESCRIPTION
No. Code Description
1 Fixing Hole It’s the hole to fix up iMDC on enclosure using screws.
2 Reader #1 Port It’s the reader port to process Wiegand Reader Input.
3 Reader #2 Port It’s the reader port to process Wiegand Reader Input.
4 Relay Output #
1 Port
It’s the ports for FORM-C (COM, NO, NC) Relay Output.
5 Relay Output #
2 Port
6 Relay Output #
3 Port
7 Relay Output #
4 Port
8 Relay Output #
5 Port
9 Relay Output #
6 Port
