IDTECK iMDC-MAIN - iMDC Emulator Usage

NETWORK SETTING
6
p.37
1 PRIVATE IP NETWORK SETTING

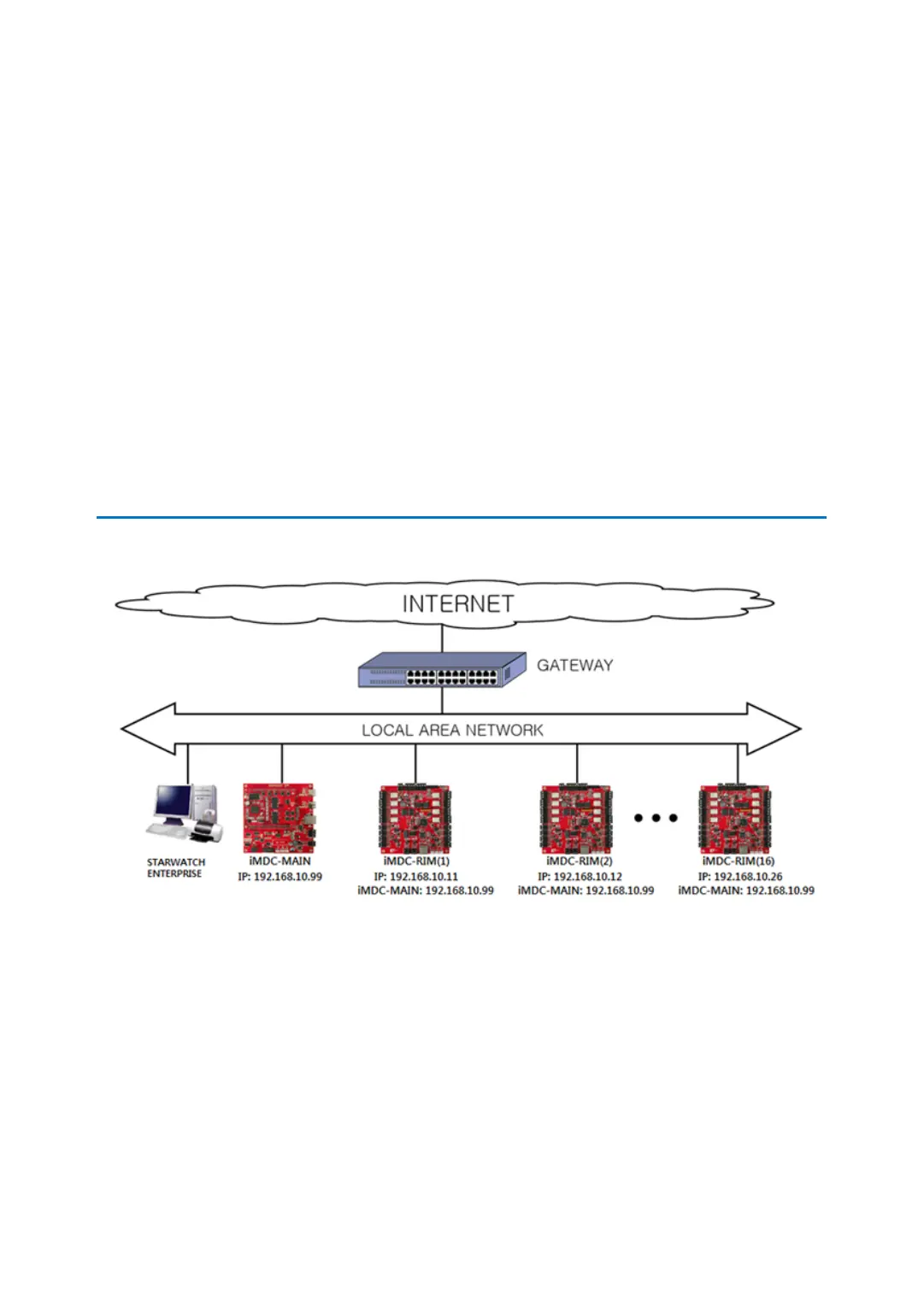

Above figure is the configuration using private ID. The configuration is the most stable netw
ork system for IMDC-MAIN and IMDC-RIM. It is advised to build up private LAN network for I
MDC-MAIN and IMDC-RIM.
The IP is searched and set automatically using STARWATCH ENTERPRISE or iMDC EMULATO
R. (Refer to ‘6.Network setting’ and ‘7.iMDC EMULATOR’)
