p.27iMDC-MAIN POWER WIRING

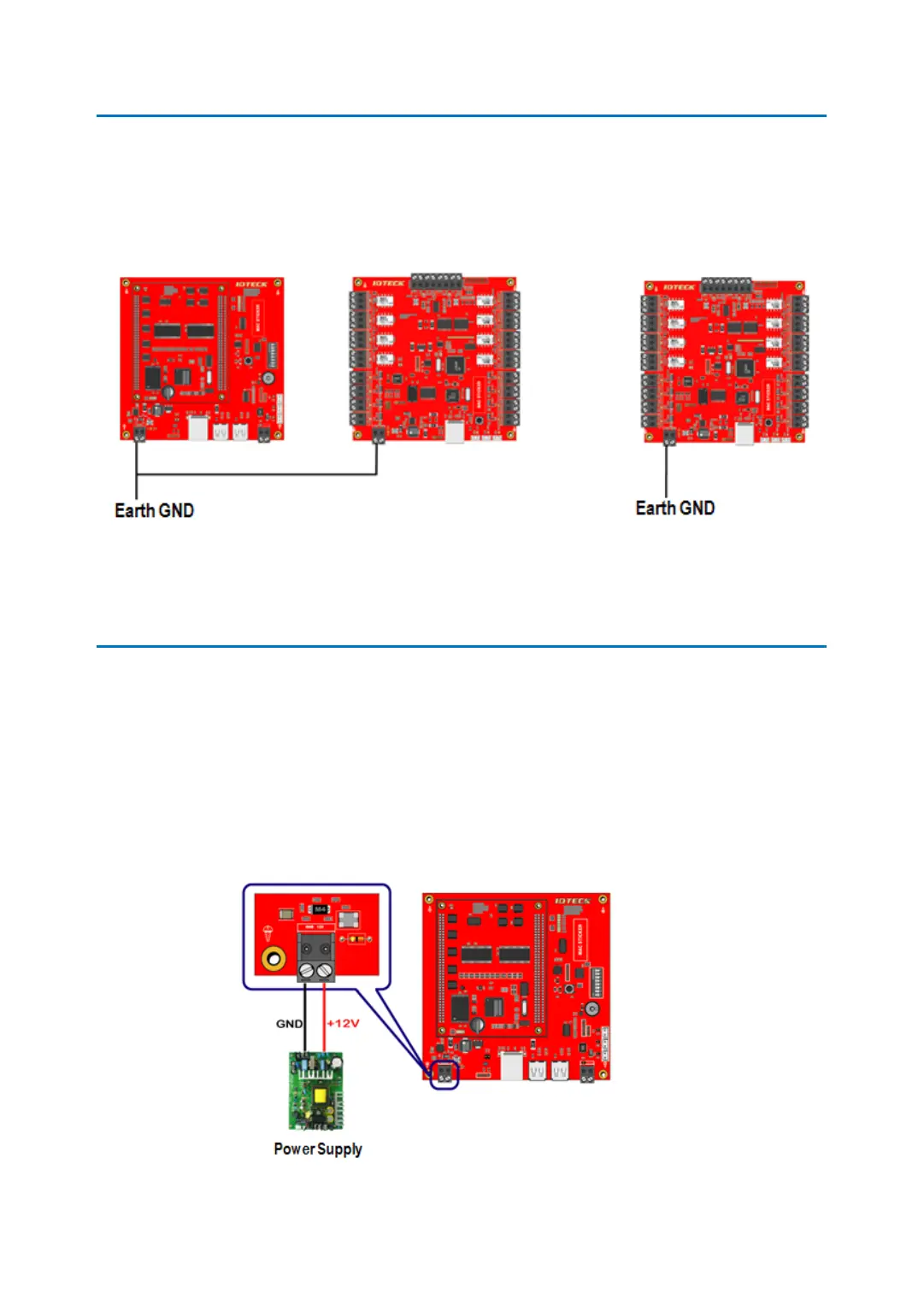

3 GND WIRING
When installing iMDC-MAIN and iMDC-RIM, you must connect GND wire of Power terminal
block to 1ST class EARTH GROUND. EARTH GROUND wiring equalizes all ground level to zer
o and protects from the thunderbolt or surge voltage.
4 iMDC-MAIN POWER WIRING
Confirm that main power switched OFF before wiring.
●
Connect +12V (red) wire of DC12V power supply to Power terminal block (+12V) of iM
DC-MAIN.
●
Connect GND (-) (black) wire of DC12V power supply to Power terminal block (GND) of
iMDC-MAIN.
