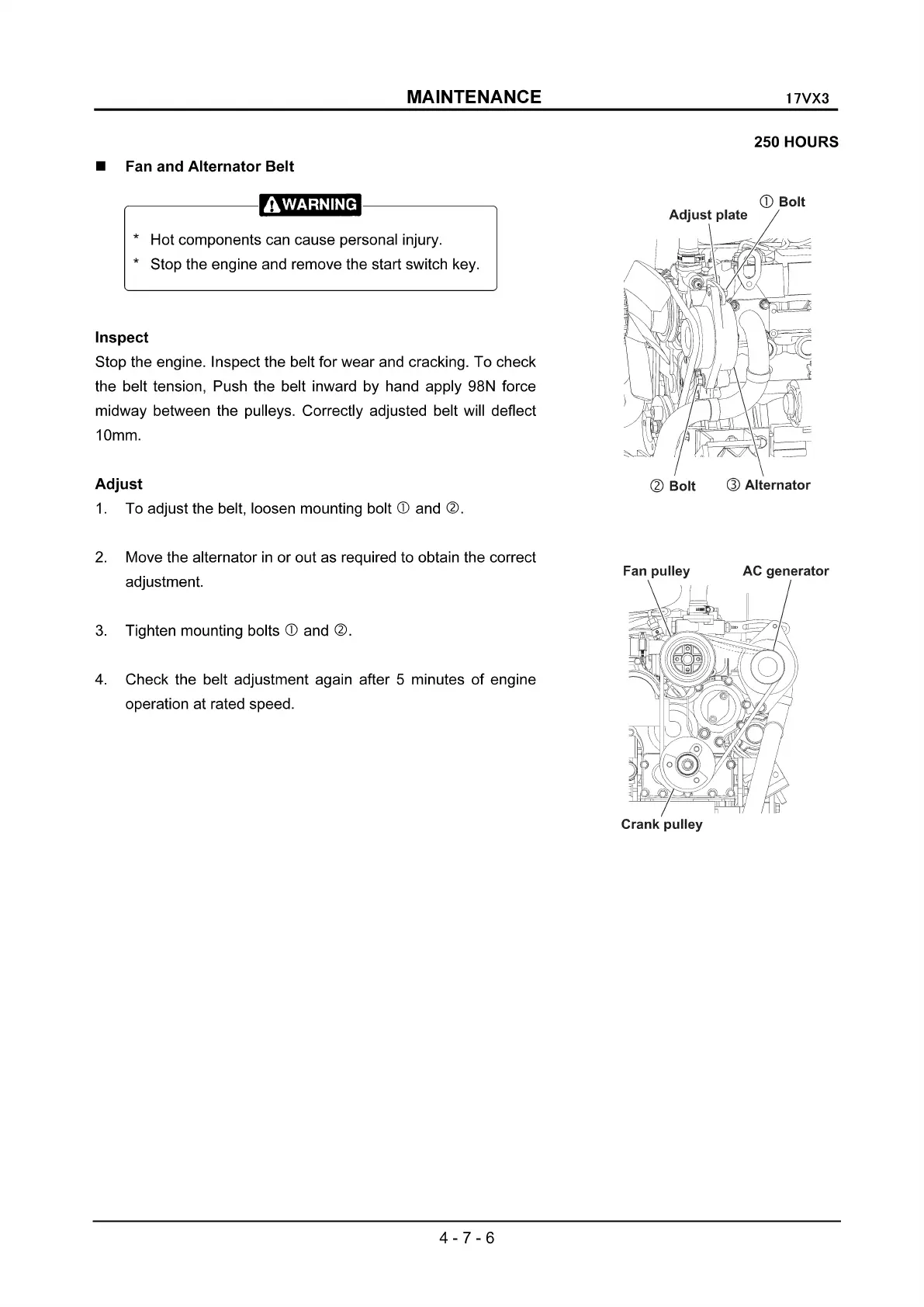

MAINTENANCE
• Fan and Alternator Belt
~------
-------------....
* Hot components can cause personal injury.
* Stop the engine and remove the start switch key.
Inspect
Stop the engine. Inspect the belt for wear and cracking. To check
the belt tension, Push the belt inward by hand apply 98N force
midway between the pulleys. Correctly adjusted belt will deflect
10mm.
Adjust
1.
To adjust the belt, loosen mounting bolt
CD
and (l).
2.
Move the alternator
in
or out as required to obtain the correct
adjustment.
3.
Tighten mounting bolts
CD
and (l).
4.
Check the belt adjustment again after 5 minutes
of
engine
operation at rated speed.
4-7-6
17VX3
250 HOURS
