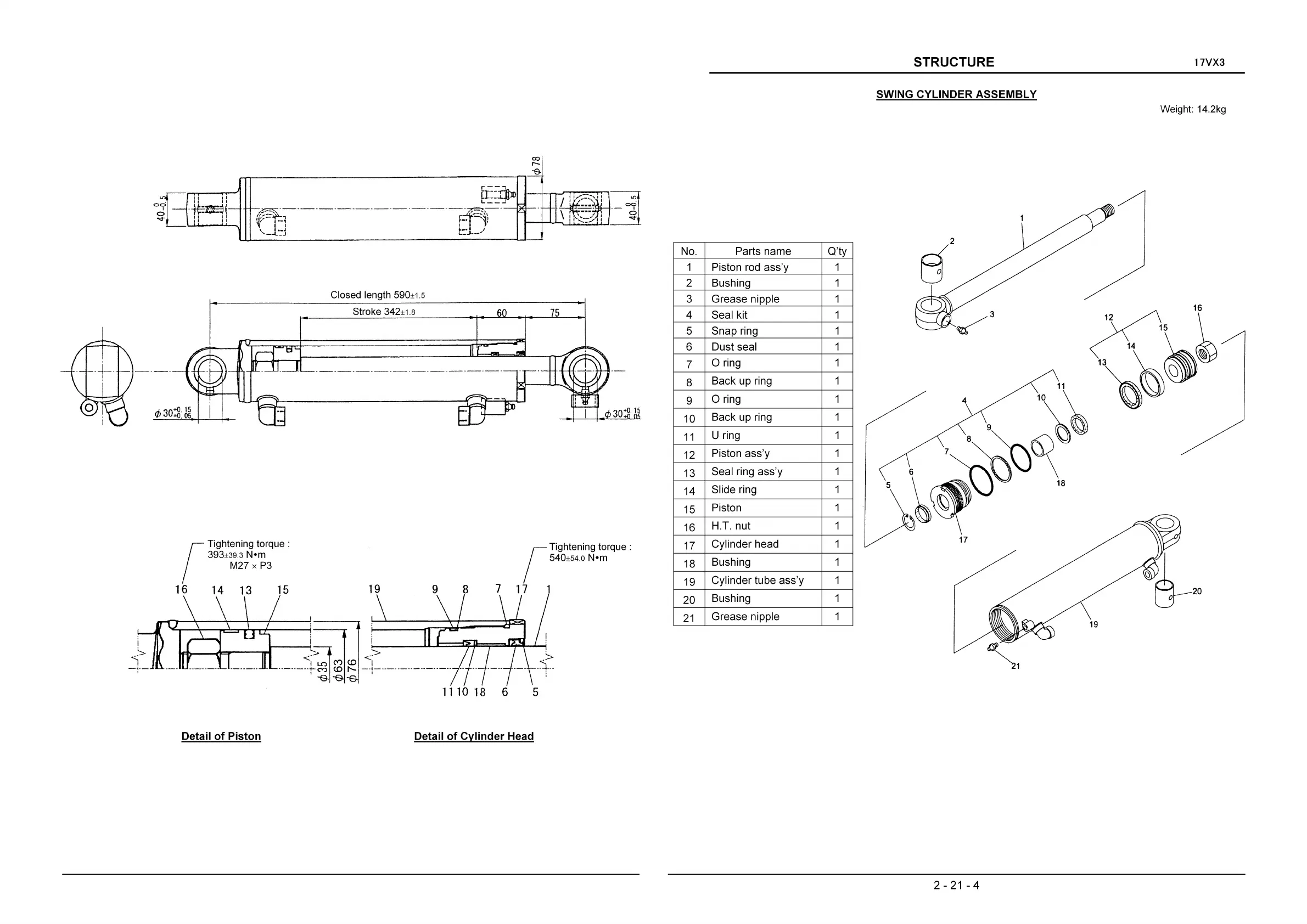

IHI 17VX3 - Swing Cylinder Assembly

STRUCTURE
SWING CYLINDER ASS
EMBLY
Weight: 14.2kg
20
19
17
5
{
Tighten.
540+ Ing torque:
_54.0 N-m
17 1
19
Closed length 590±1.5
Stroke 342±1.8
{
Tighten.
393+ Ing torque:
_39.3 N-m
M27
x P3
16
14 13 15
