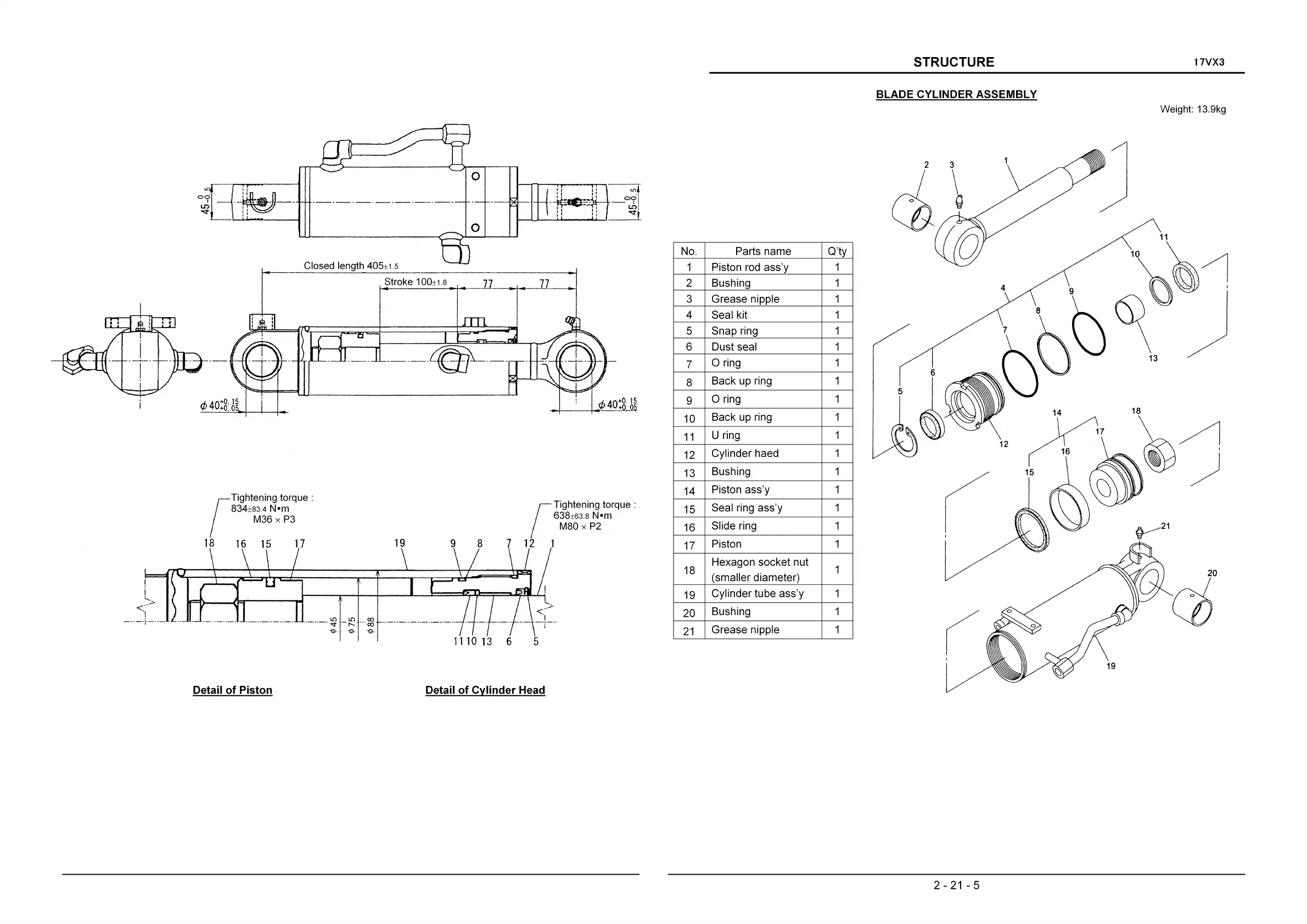

IHI 17VX3 - Blade Cylinder Assembly

STRUCTURE
17VX3
BLADE CYLINDER ASSEMBLY
Weight: 13.9kg
20
OJ
13
12
5
No. Parts name Q'ty
1 Piston rod ass'y 1
2 Bushing 1
3 Grease nipple 1
4 Seal kit 1
5 Snap ring 1
6 Dust seal 1
7
o ring 1
8
Back up ring 1
9
o ring 1
10
Back up ring 1
11
U ring 1
12
Cylinder haed 1
13
Bushing 1
14
Piston ass'y 1
15
Seal ring ass'y 1
16
Slide ring 1
17
Piston 1
18
Hexagon socket nut
1
(smaller diameter)
19
Cylinder tube ass'y 1
20
Bushing 1
21
Grease nipple 1
77
r
Tightening torque:
638±63.8 N-m
M80 x P2
12 1
o
111013 6 5
Detail of Cylinder Head
-----~--
Stroke 100±1.8
LO LO co
------.~. -,...... --"CO
-s- -s- -s-
Closed length 405±1.5
o
{
Tightening
torque:
834±83.4 N-m
M36 x P3
18 16 15 17
o~ _~__ _ _
Detail of Piston
2 - 21 - 5
