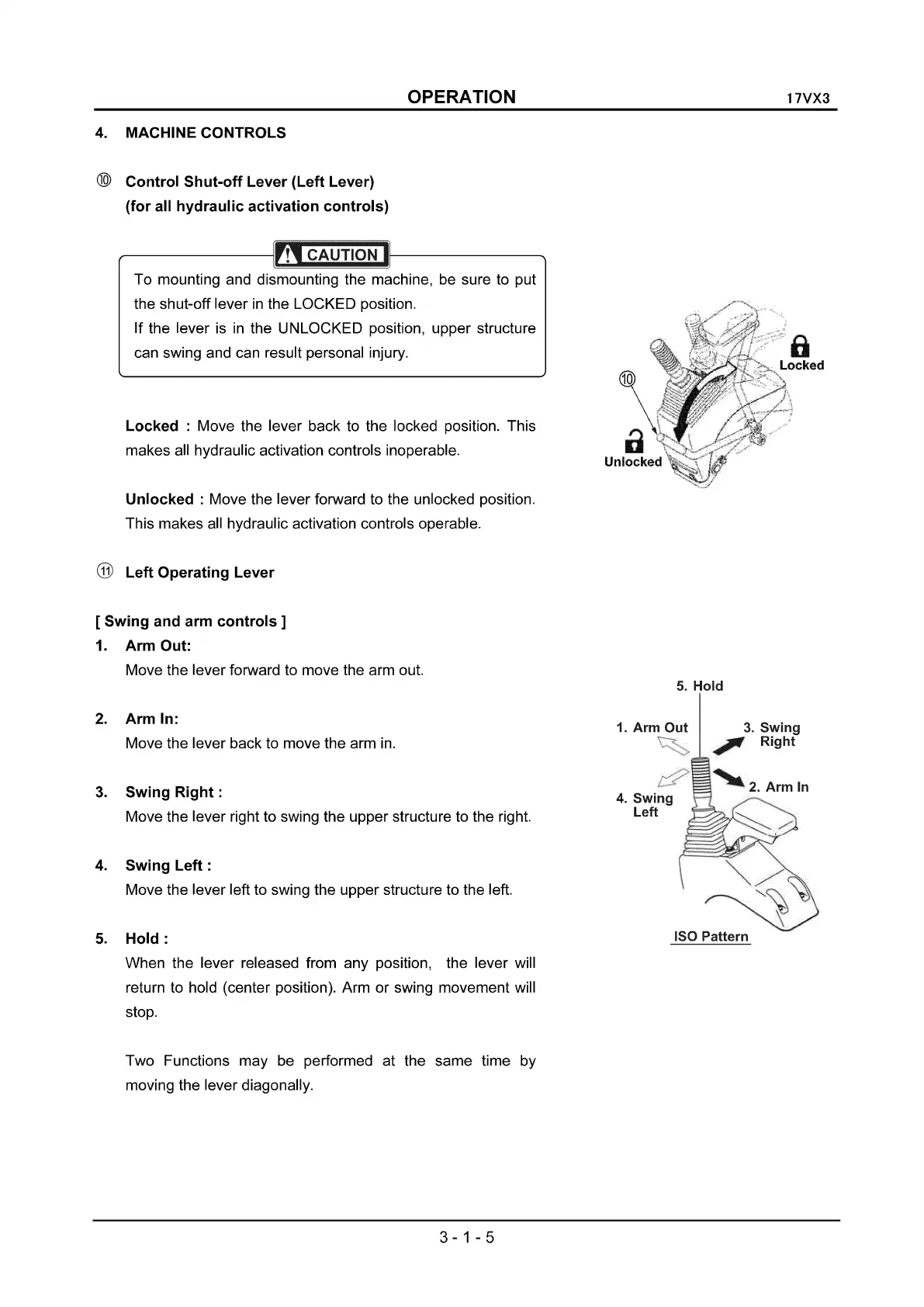

4. MACHINE CONTROLS
@ Control Shut-off Lever (Left Lever)
(for all hydraulic activation controls)
To mounting and dismounting the machine, be sure to put
the shut-off lever
in the LOCKED position.
If the lever
is in the UNLOCKED position, upper structure
can swing and can result personal injury.
Locked : Move the lever back to the locked position. This
makes all hydraulic activation controls inoperable.
Unlocked : Move the lever forward to the unlocked position.
This makes all hydraulic activation controls operable.
@ Left Operating Lever
[ Swing and arm controls]
1. Arm Out:
Move the lever forward to move the arm out.
2. Arm In:
Move the lever back to move the arm in.
3. Swing Right:
Move the lever right to swing the upper structure to the right.
4. Swing Left:
Move the lever left to swing the upper structure to the left.
5. Hold:
When the lever released from any position, the lever will
return to hold (center position). Arm or swing movement will
stop.
Two Functions may be performed at the same time by
moving the lever diagonally.
