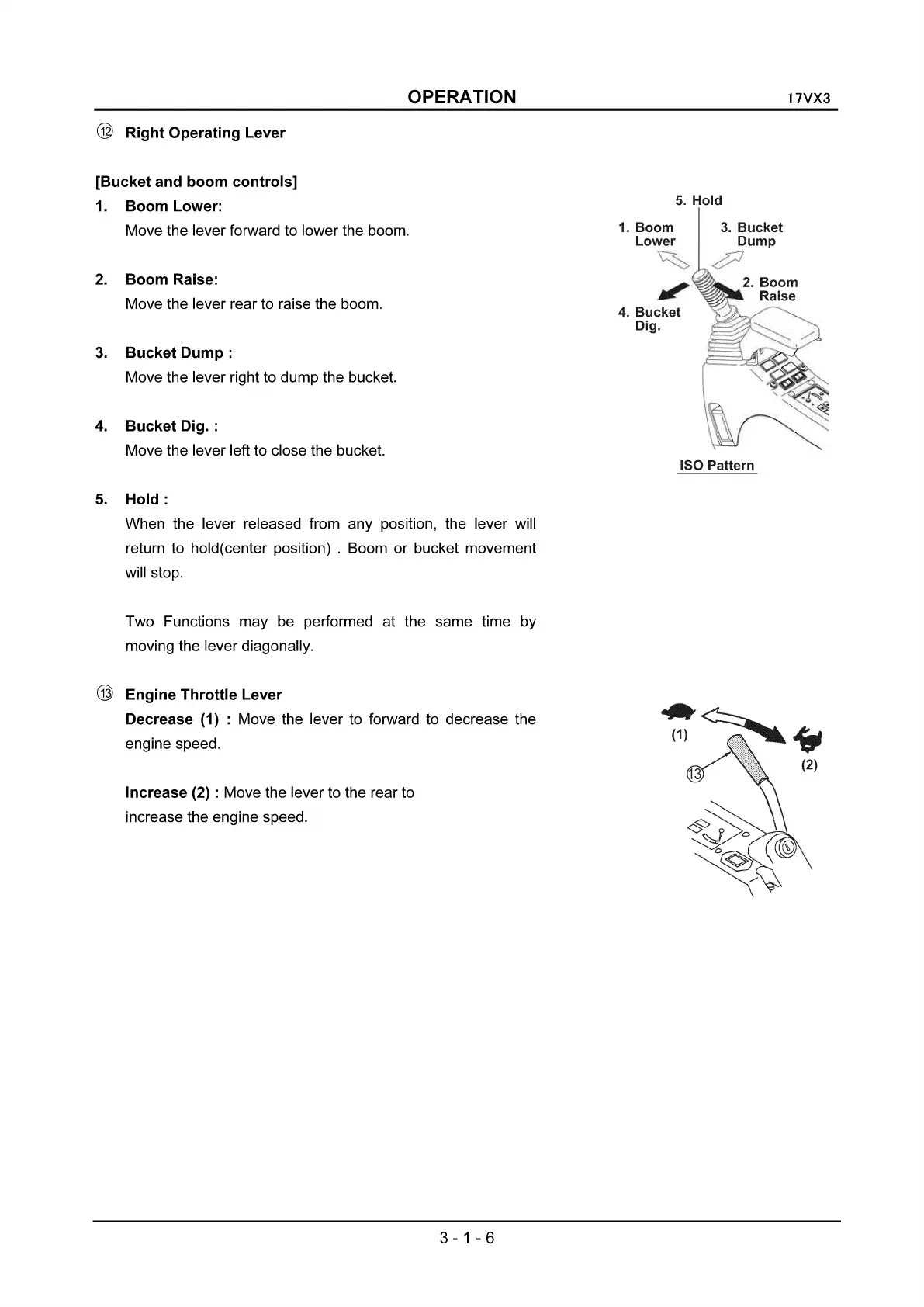

IHI 17VX3 - Machine Controls (Right Lever)

OPERATION
@ Right Operating Lever
[Bucket and boom controls]
1. Boom Lower:
Move the lever forward to lower the boom.
2. Boom Raise:
Move the lever rear to raise the boom.
3. Bucket Dump:
Move the lever right to dump the bucket.
4. Bucket Dig. :
Move the lever left to close the bucket.
5. Hold:
When the lever released from any position, the lever will
return to hold(center position) . Boom or bucket movement
will stop.
Two Functions may be performed at the same time by
moving the lever diagonally.
@ Engine Throttle Lever
Decrease (1) : Move the lever to forward to decrease the
engine speed.
Increase (2) : Move the lever to the rear to
increase the engine speed.
