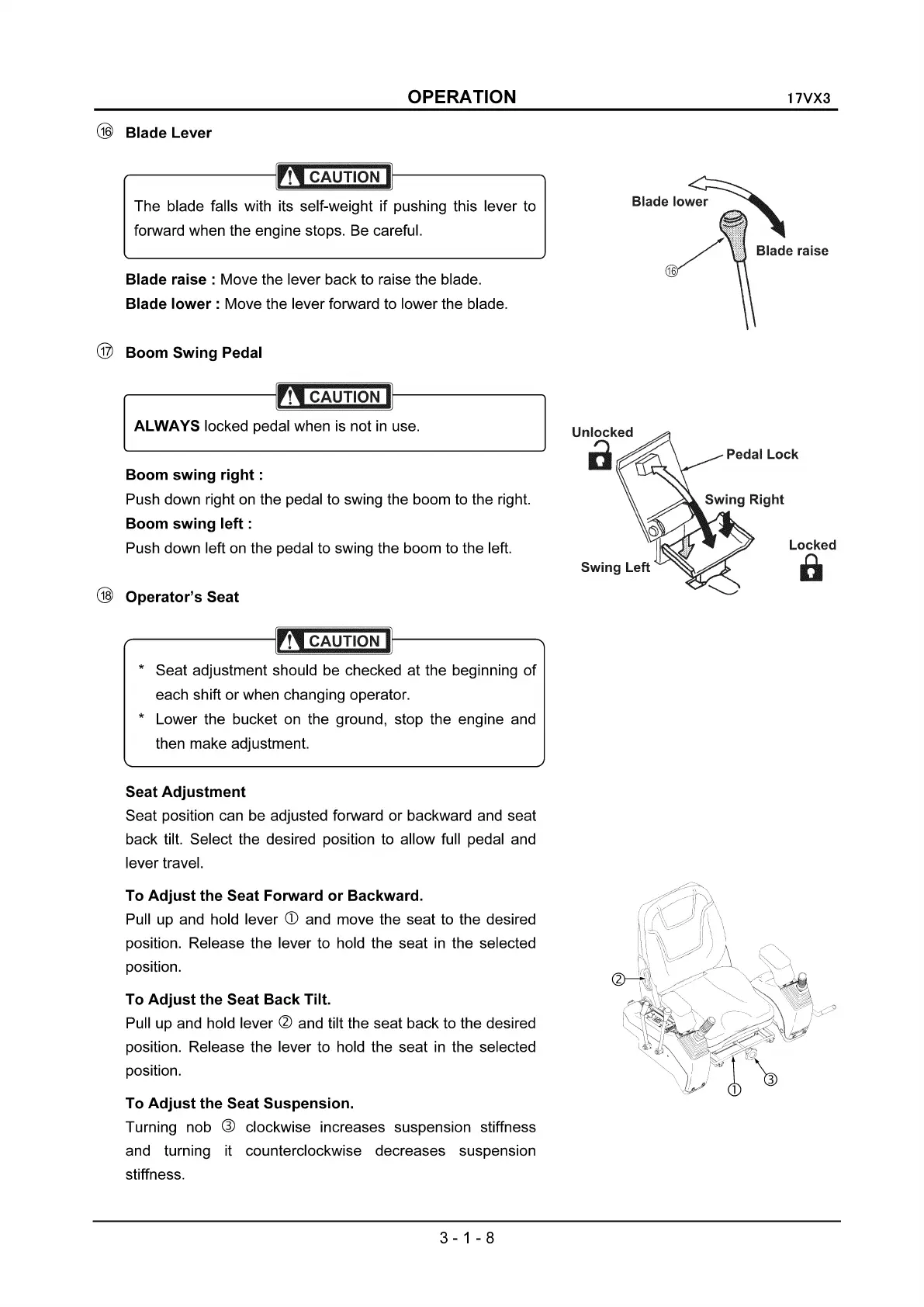

IHI 17VX3 - Machine Controls (Blade;Boom Swing)

OPERATION
® Blade Lever
The blade falls with its self-weight if pushing this lever to
forward when the engine stops. Be careful.
Blade raise: Move the lever back to raise the blade.
Blade lower: Move the lever forward to lower the blade.
@ Boom Swing Pedal
ALWAYS locked pedal when is not in use.
Boom swing right:
Push down right on the pedal to swing the boom to the right.
Boom swing left:
Push down left on the pedal to swing the boom to the left.
@ Operator's Seat
* Seat adjustment should be checked at the beginning of
each shift or when changing operator.
* Lower the bucket on the ground, stop the engine and
then make adjustment.
Seat Adjustment
Seat position can be adjusted forward or backward and seat
back tilt. Select the desired position to allow full pedal and
lever travel.
To Adjust the Seat Forward or Backward.
Pull up and hold lever CD and move the seat to the desired
position. Release the lever to hold the seat
in the selected
position.
To Adjust the Seat Back Tilt.
Pull up and hold lever ~ and tilt the seat back to the desired
position. Release the lever to hold the seat
in the selected
position.
To Adjust the Seat Suspension.
Turning nob @ clockwise increases suspension stiffness
and turning it counterclockwise decreases suspension
stiffness.
