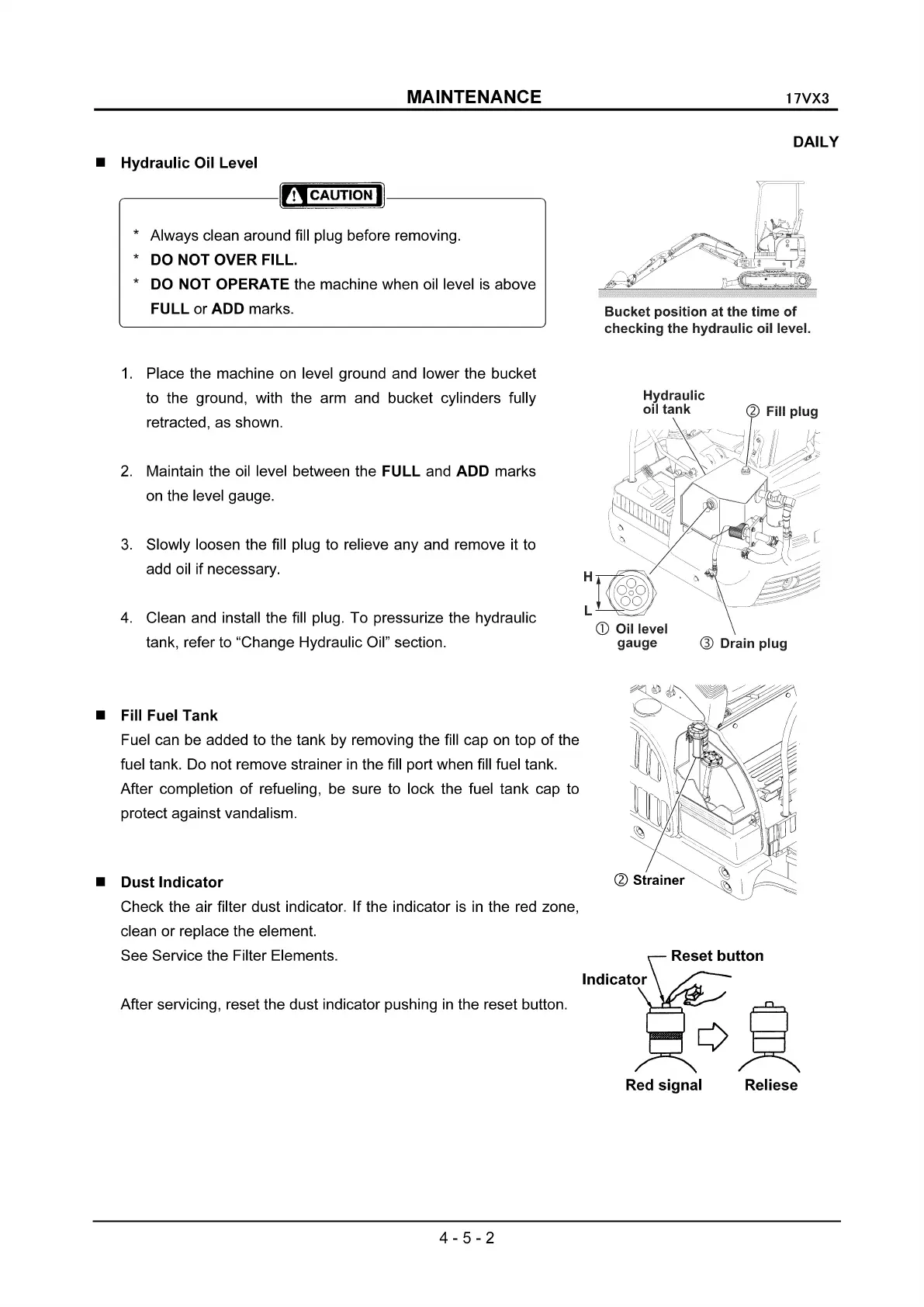

MAINTENANCE
• Hydraulic Oil Level
r-----[mCAUTIONI]-----.....
* Always clean around fill plug before removing.
*
DO NOT OVER FILL.
* DO NOT OPERATE
the machine when oil level
is
above
FULL
or
ADD marks.
1.
Place the machine on level ground and lower the bucket
to the ground, with the arm and bucket cylinders fully
retracted, as shown.
2.
Maintain the oil level between the FULL and ADD marks
on the level gauge.
3.
Slowly loosen the fill plug to relieve any and remove it to
add oil if necessary.
4.
Clean and install the fill plug. To pressurize the hydraulic
tank, refer to "Change Hydraulic Oil" section.
• Fill Fuel Tank
Fuel can be added to the tank by removing the fill cap on top
of
the
fuel tank. Do not remove strainer
in
the fill port when fill fuel tank.
After completion
of
refueling, be sure to lock the fuel tank cap to
protect against vandalism.
• Dust Indicator
Check the air filter dust indicator. If the indicator
is
in
the red zone,
clean or replace the element.
See Service the Filter Elements.
After servicing, reset the dust indicator pushing
in
the reset button.
17VX3
DAILY
4-5-2
Red signal Reliese
