Note: The “Requesting IP Address…” pop-up message only appears at power
up when the Ethernet Card has its IP Setup configured to AUTO.
There are two options to choose from this screen. Press the Exit soft key to
escape from this screen and stop the APT 400XAC from requesting an IP
address or allow the APT 400XAC to request an IP address automatically from
the network to which it is connected.

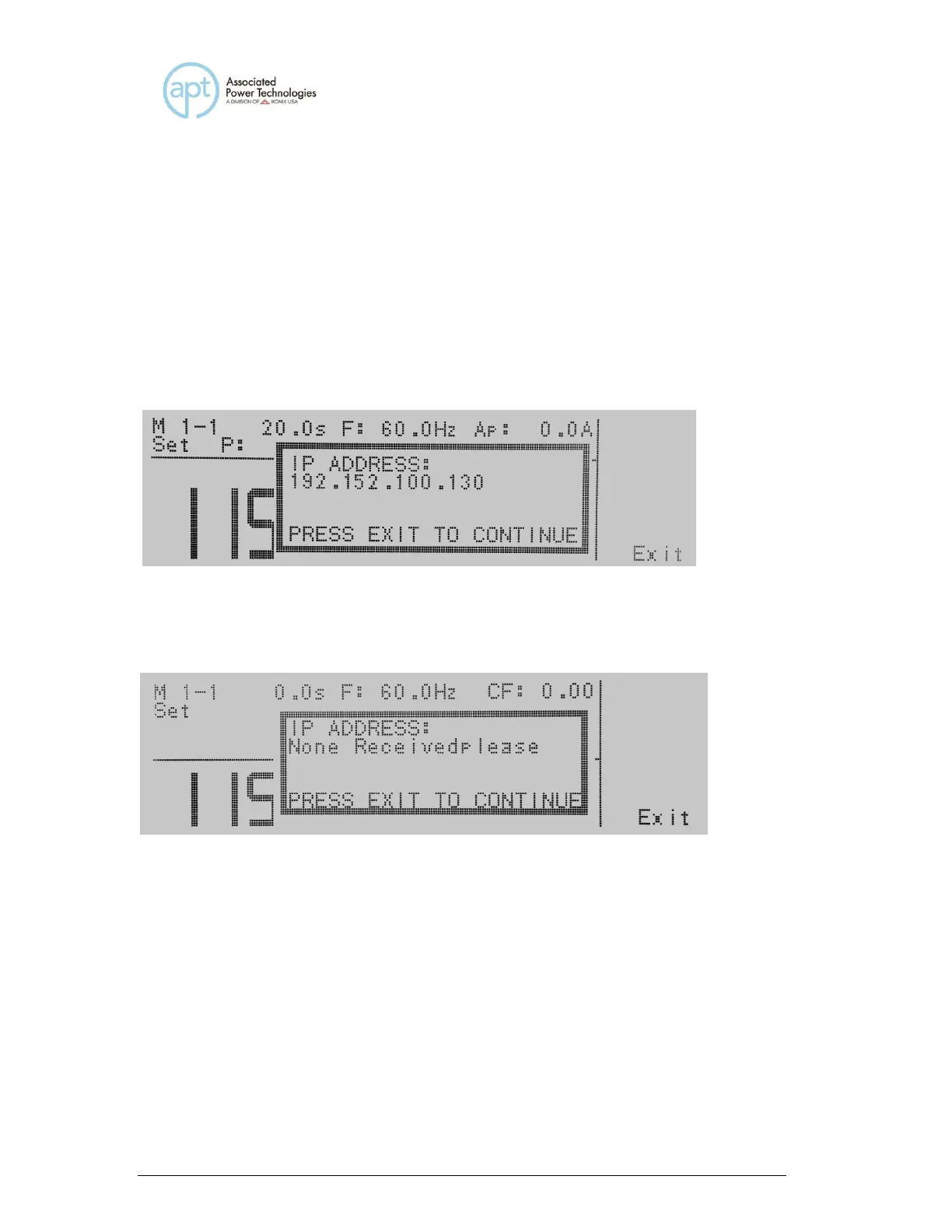

The Ethernet Card will wait for an IP Address for approximately 20 seconds. If the
APT 400XAC successfully receives an IP Address from the server the following
pop-up message will be displayed:
If the APT 400XAC fails to receive an IP Address after approximately 20 seconds,
the following pop-up message will be displayed:
Press the Exit soft key to remove the pop-up message and return to the APT
400XAC’s Perform Tests screen.
