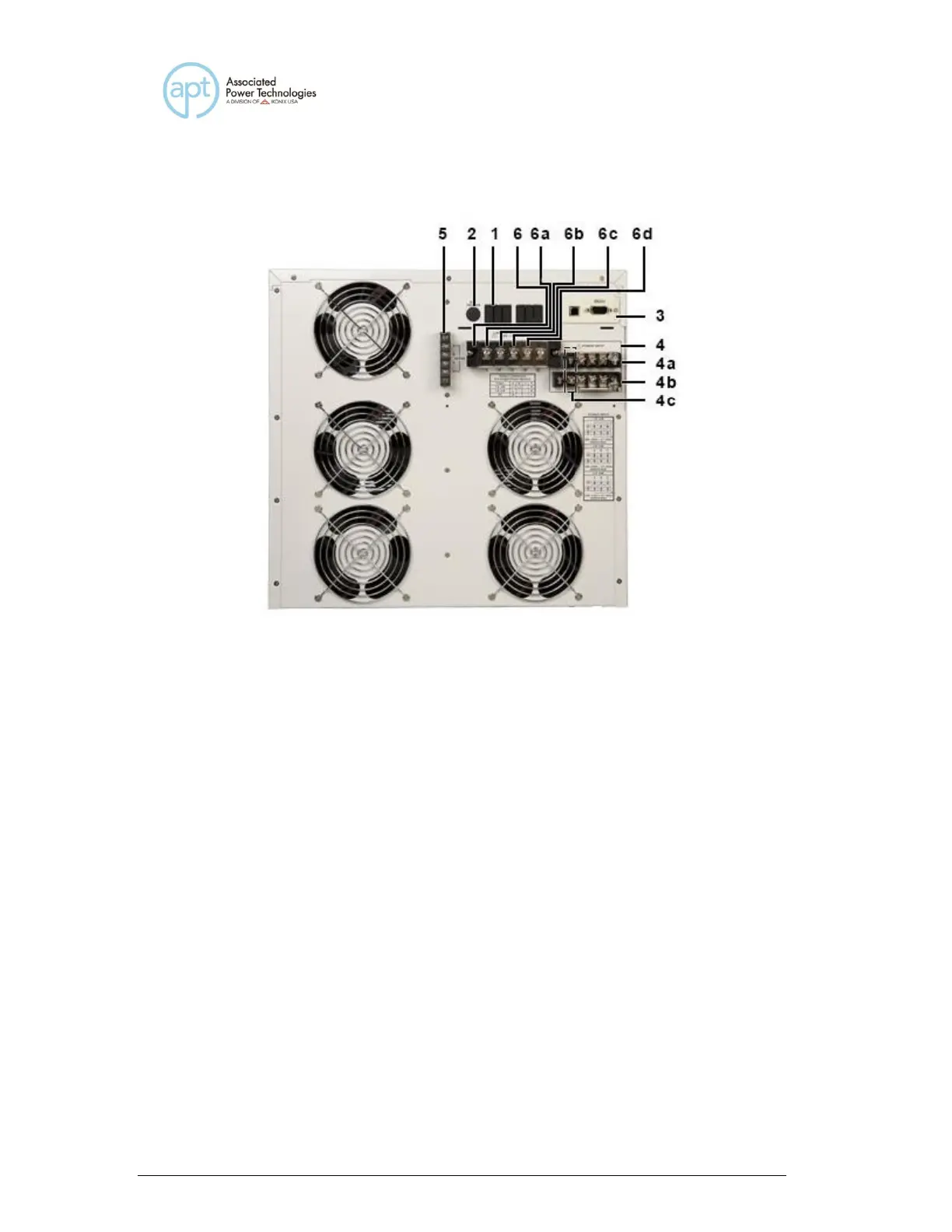

3.2.2 Rear Panel Controls
a
1. Remote Output Connector: Provides output to monitor PASS, FAIL,
Test-In-Process via relay contact closures.
2. Ext Trigger Connector: Provides the capability to monitor a 5 VDC
output signal.
3. Automated Interface Card: Interface card used to control, program, and
capture data.
4. Input Terminal Power Block: provides input power to the instrument.
Model 430XAC requires 200-240 VAC, 1Ø, 47-63 Hz. Model 460XAC
requires 1Ø : 200~240 Vac, 3Ø3W : 200~240 Vac, 3Ø4W : 346~416 Vac
4a. N: Neutral input screw terminal.
4b. L: Line input screw terminal.
4c. G: Earth ground (chassis) connection.
5. External Sense Output Terminal Block: provides screw terminals for
external voltage sense leads
