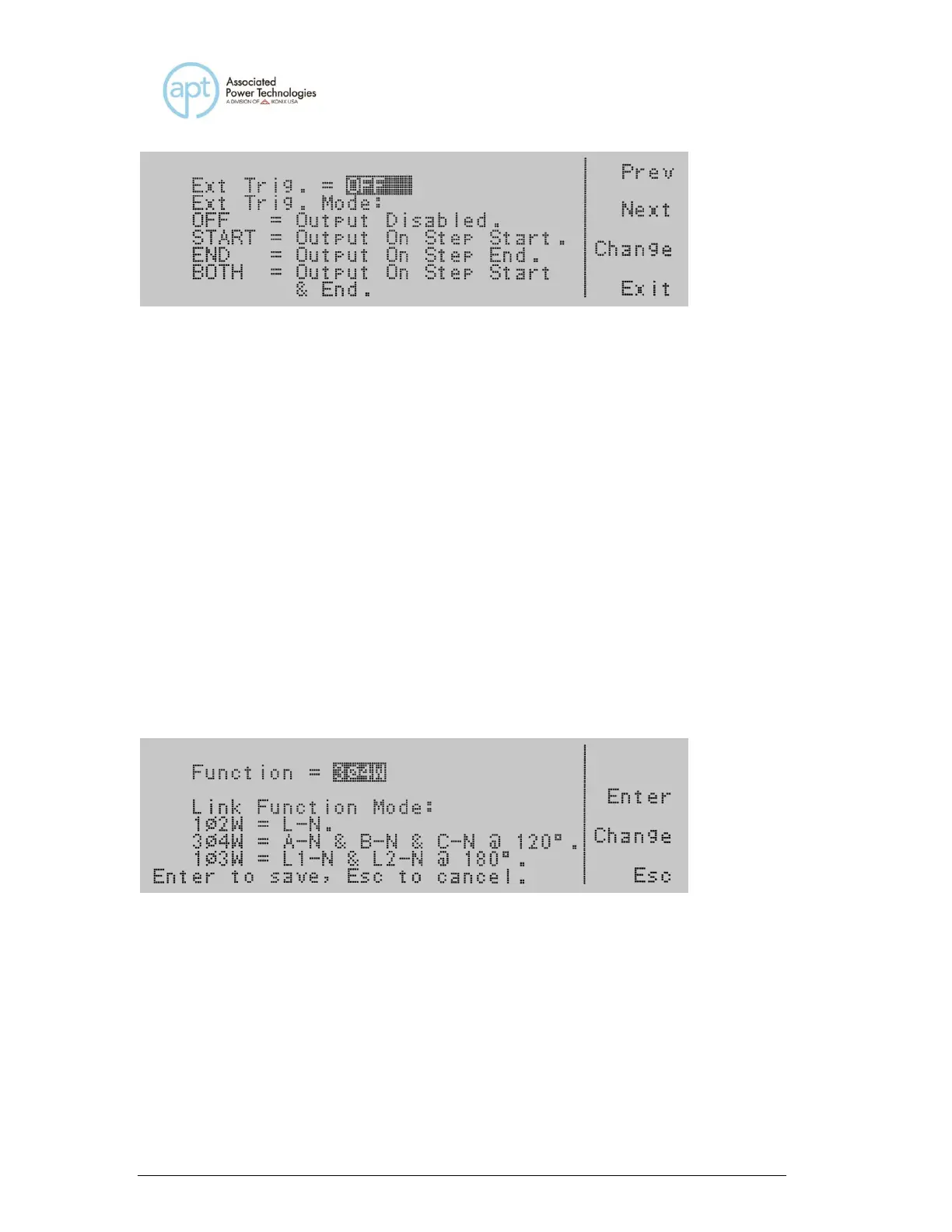

Ext trig = indicates the Ext Trig that is programmed into the instrument.
Ext Trig Mode: indicates the Ext Trig mode that can be programmed into the
instrument.
The Ext Trig Modes available are OFF, Start, END, and BOTH. Press the
Change soft key to toggle the mode. To save the parameter, press the Enter soft
key. To cancel the editing of the Ext Trig Mode, press the Esc soft key. When the
Enter soft key is pressed the Ext Trig Mode is accepted and you transition into
the next system parameter: Auto Run.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.3.18 Editing Function
Use the , soft keys to navigate to the Function parameter. Pressing the Edit
soft key will provide the following screen:
Link Function Mode: indicates the Link Function mode that can be programmed
into the instrument.
Smart Config
This feature allows the operator to change the output of AC power source’s
Polyphase (3Ø4W) mode to single phase (1Ø2W and 1Ø3W) or DC mode with a
simple button push. Changing the internal cables or dip switches is not required.
