3.2 Instrument Controls

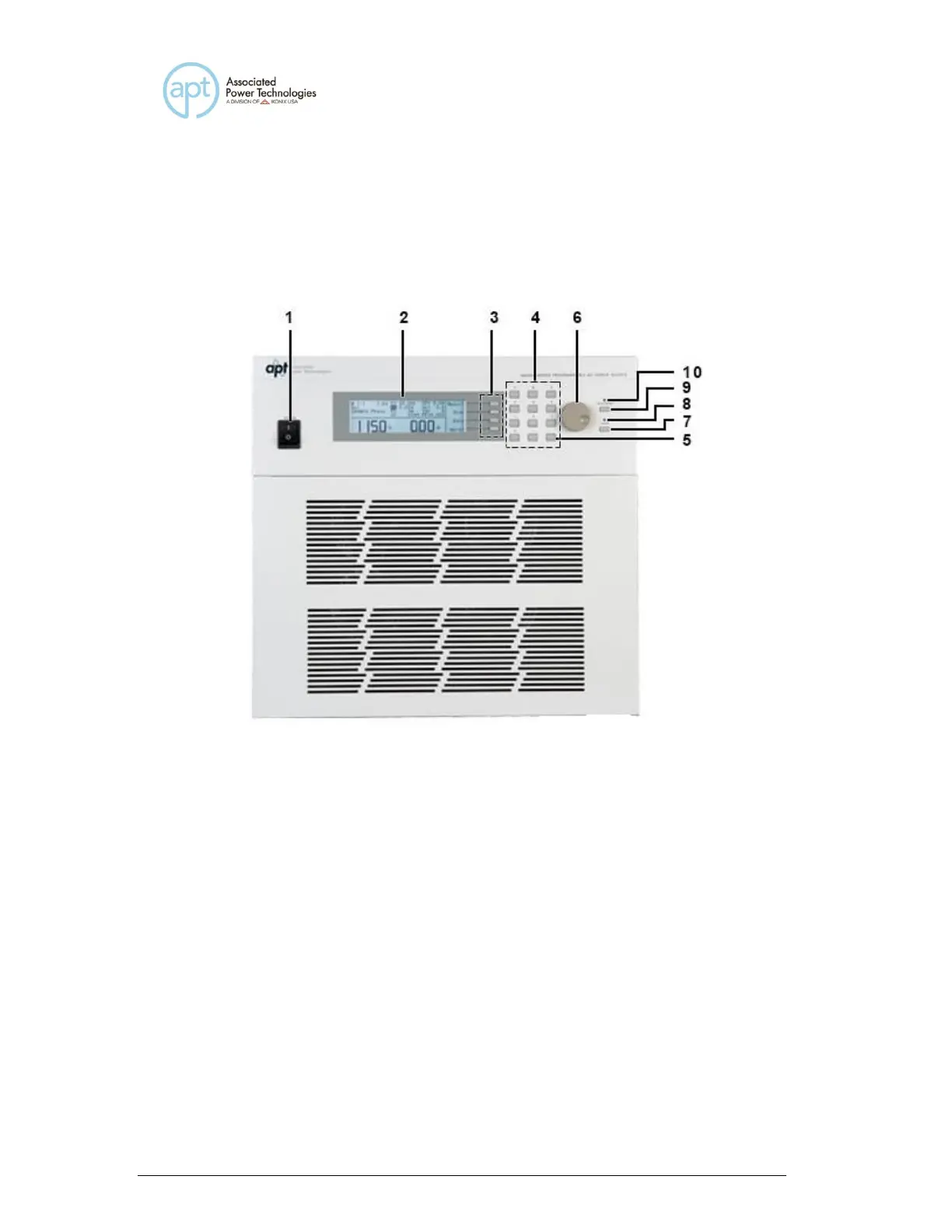

3.2.1 Front Panel Controls

1. Power Switch: Rocker style power switch with international ON ( | ) and

OFF (0). Please refer to pg. 10 for proper installation of a disconnecting

device.

2. Graphic LCD: 240 x 64 Monographic LCD.

3. Soft Keys: Multifunctional selection keys used to select parameters,

select screens, and edit parameters.

4. Number Keypad: Keys used to enter numerical data.

5. Delete Key: Used to delete text characters and numerical data.

6. Rotary Knob: Used to adjust the voltage output in MANUAL Mode, or DC

Mode.

7. Lock Key: Used to lock out the front panel.
