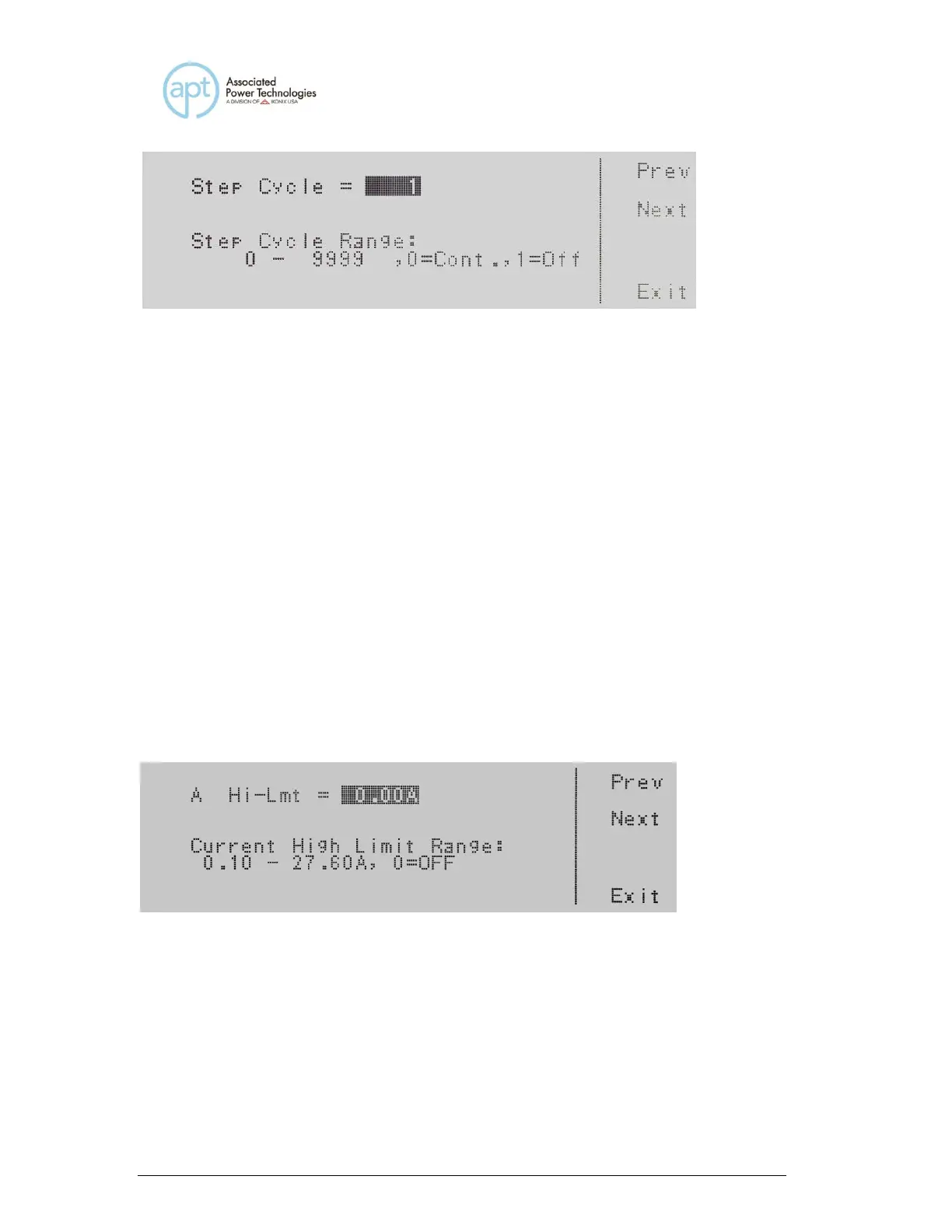

Step Cycle = indicates the step cycle that is programmed into the instrument.
Step Cycle Range: indicates the step cycle range that can be programmed into
the instrument.
The ranges available are 0 – 9999, 0=Cont., 1=Off. The 0 – 9999 selection
programs the instrument to repeat the test step cycle x number of times. The
0=Cont. selection indicates that the test cycle will repeat in ∞. The 1=Off
selection indicates that the test cycle will perform only one cycle. When the
“Enter” soft key is pressed the step cycle is accepted and you transition into the
next parameter: A Hi-Lmt.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.6.18 Editing A Hi-Lmt & A Lo-Lmt (PROGRAM Mode only)
Use the , soft keys to navigate to the A Hi-Lmt or Lo-Lmt parameter. Pressing
the Edit soft key will provide one of the following screens:
A Hi-Lmt = indicates the current high limit that is programmed into the instrument.
Current High Limit Range: indicates the current range that can be programmed
into the instrument. If you select the 0=OFF a high limit current range is turned
OFF. The editing of the A Hi-Lmt parameter is available in the PROGRAM and
MANUAL Mode.
